S S Ishan Mylapore, Chennai

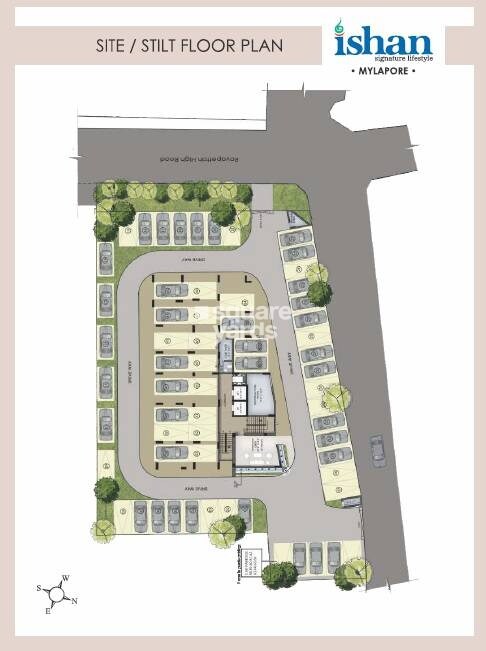

The site is primarily configured for residential use, integrating stilt parking. The building footprint is centrally positioned, surrounded by vehicular circulation for parking access, and complemented by landscaped areas with trees along the perimeter and within the parking zones.

• The property has direct access from Santhome High Road, visible along the northern boundary of the site.
• An internal vehicular driveway facilitates access to the various parking slots provided.
• The internal road network includes marked 'RAMP UP' and 'RAMP DOWN' sections for vehicle movement.
• The project is connected to RK Mutt Road, located 1.2 km away, and Santhome High Road, located 2.4 km away.

• Dedicated stilt parking spaces are provided throughout the ground level.
• A central building core houses essential facilities like staircases and elevators, and an entrance Lobby.
• Key utility rooms, including the DG Room, Transformer, and Sump, are explicitly located on this floor.
• Landscaped green areas with trees are integrated around the site perimeter and within the parking areas.

• Numerous numbered parking slots are allocated across the stilt level and along the property's edge.
• The plan precisely labels functional areas such as the DG Room, Transformer, and Sump.
• A compass rose indicates the specific North, East, West, and South orientations of the site.
• Vehicular access is clearly delineated with 'RAMP UP' and 'RAMP DOWN' indicators for circulation.
