Kartik Residency Badlapur East, Thane

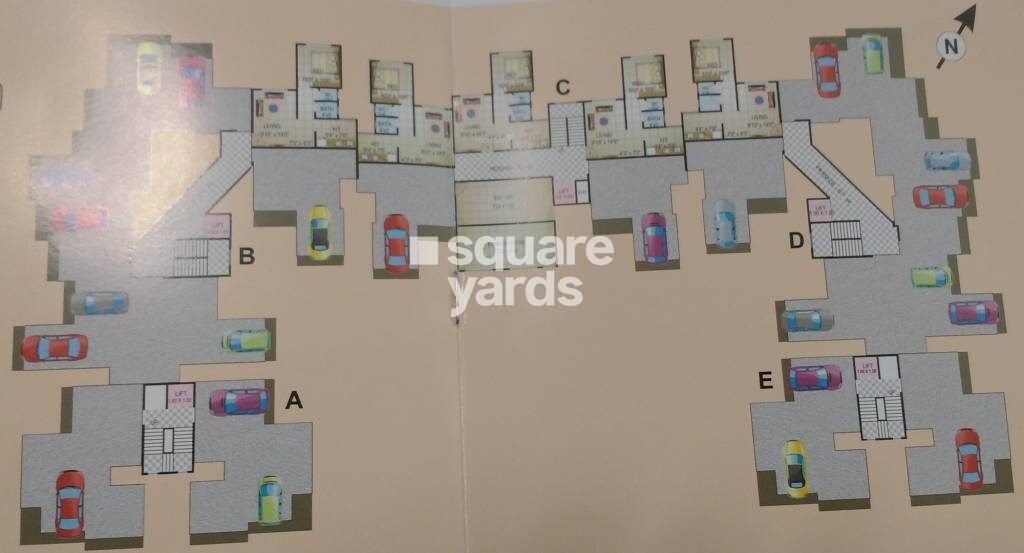

The plan primarily designates land for residential use, featuring five separate blocks (A, B, C, D, E), each housing multiple living units. Significant paved areas for vehicle parking are allocated around all residential blocks. There are no explicitly identified commercial zones, dedicated open spaces like parks, or visible density figures like units per acre.

• The master plan shows an internal network of paved pathways and driveways that connect the various residential blocks and designated parking areas.
• Individual car parking spaces are provided directly adjacent to the blocks for convenient access.
• No specific external connecting roads or their widths are detailed within this master plan.

• Each of the five residential blocks (A, B, C, D, E) is equipped with a dedicated lift for residents' convenience.
• Adjacent to each lift, a central staircase provides additional access to the units within each block.
• Ample surface-level car parking is distributed around all five residential blocks.
• Each visible residential unit contains standard living spaces including a living room, kitchen, bedroom, and bathroom.

• Each block includes a lift area, typically dimensioned around 10'-0' x 7'-6' or 10'-0' x 7'-0'.
• Staircase areas within the blocks are dimensioned, for example, approximately 10'-0' x 10'-0'.
• Individual residential unit rooms show specific dimensions, with living areas typically around 10'-0' x 12'-0', kitchens at 8'-0' x 6'-0', and bedrooms at 10'-0' x 10'-0'.
• The master plan clearly illustrates five distinct residential blocks, identified by the labels A, B, C, D, and E.
