Emaar Elite Oasis Gomti Nagar, Lucknow

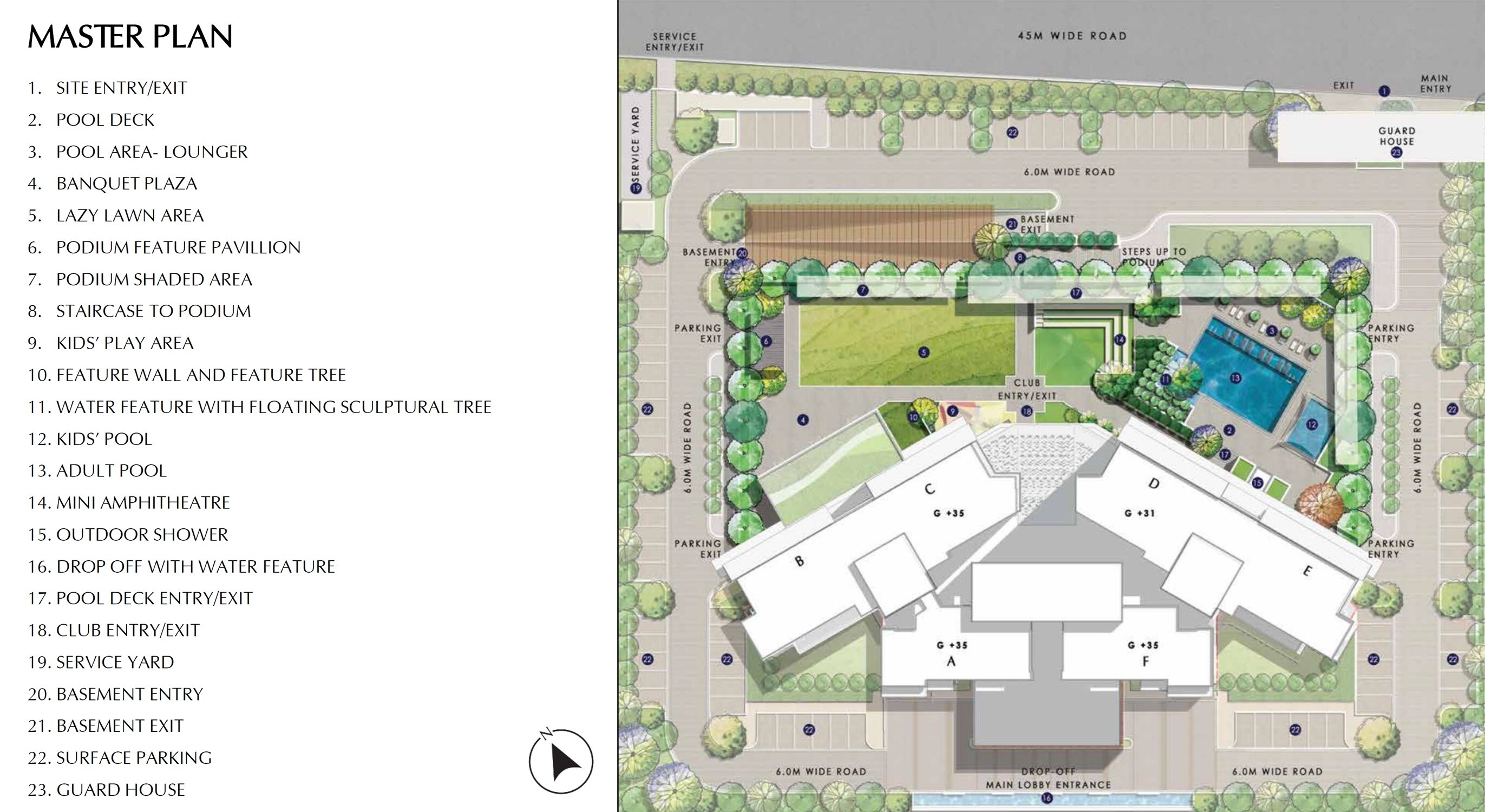

The plan primarily allocates space for residential towers (labeled A through G) and a wide array of recreational and communal amenities situated on a podium. Essential service infrastructure and parking facilities are integrated, but there are no visible commercial zones or explicit density figures like units per acre.

• The main access point, labeled 'MAIN ENTRY,' is situated off a 45M WIDE ROAD, leading to a dedicated 'DROP-OFF MAIN LOBBY ENTRANCE' (16).
• Additional site access includes a combined 'SITE ENTRY/EXIT' (1) and a separate 'SERVICE ENTRY/EXIT' (19) for operational purposes.
• Internal circulation is facilitated by several '6.0M WIDE ROAD' segments, providing direct access to 'PARKING ENTRY' points and both 'BASEMENT ENTRY' (20) and 'BASEMENT EXIT' (21).
• Access control is maintained by a 'GUARD HOUSE' (23) located at the primary entrance.

• A central 'POOL DECK' (2) houses an 'ADULT POOL' (13), 'KIDS' POOL' (12), 'POOL AREA- LOUNGER' (3), and an 'OUTDOOR SHOWER' (15).
• Recreational green spaces include a 'KIDS' PLAY AREA' (9) and a 'LAZY LAWN AREA' (5) for residents.
• Communal and social amenities feature a 'BANQUET PLAZA' (4), a 'MINI AMPHITHEATRE' (14), and a 'PODIUM FEATURE PAVILLION' (6) with an adjacent 'PODIUM SHADED AREA' (7).
• The landscape is enhanced by various water features, notably a 'WATER FEATURE WITH FLOATING SCULPTURAL TREE' (11), and a 'FEATURE WALL AND FEATURE TREE' (10).

• The development is bordered by a '45M WIDE ROAD' and multiple '6.0M WIDE ROAD' segments, indicating primary and secondary access routes.
• Residential blocks exhibit varying heights, with blocks C, A, F, and E reaching 'G +35,' while block D is specified at 'G +31.'
• The master plan systematically labels 23 distinct features, covering all aspects from access points to recreational and functional areas.
• Parking provisions include both 'SURFACE PARKING' (22) and multi-level facilities accessible via designated 'BASEMENT ENTRY' (20) and 'BASEMENT EXIT' (21) points.
