Sai Amber Yash Kulgaon, Thane

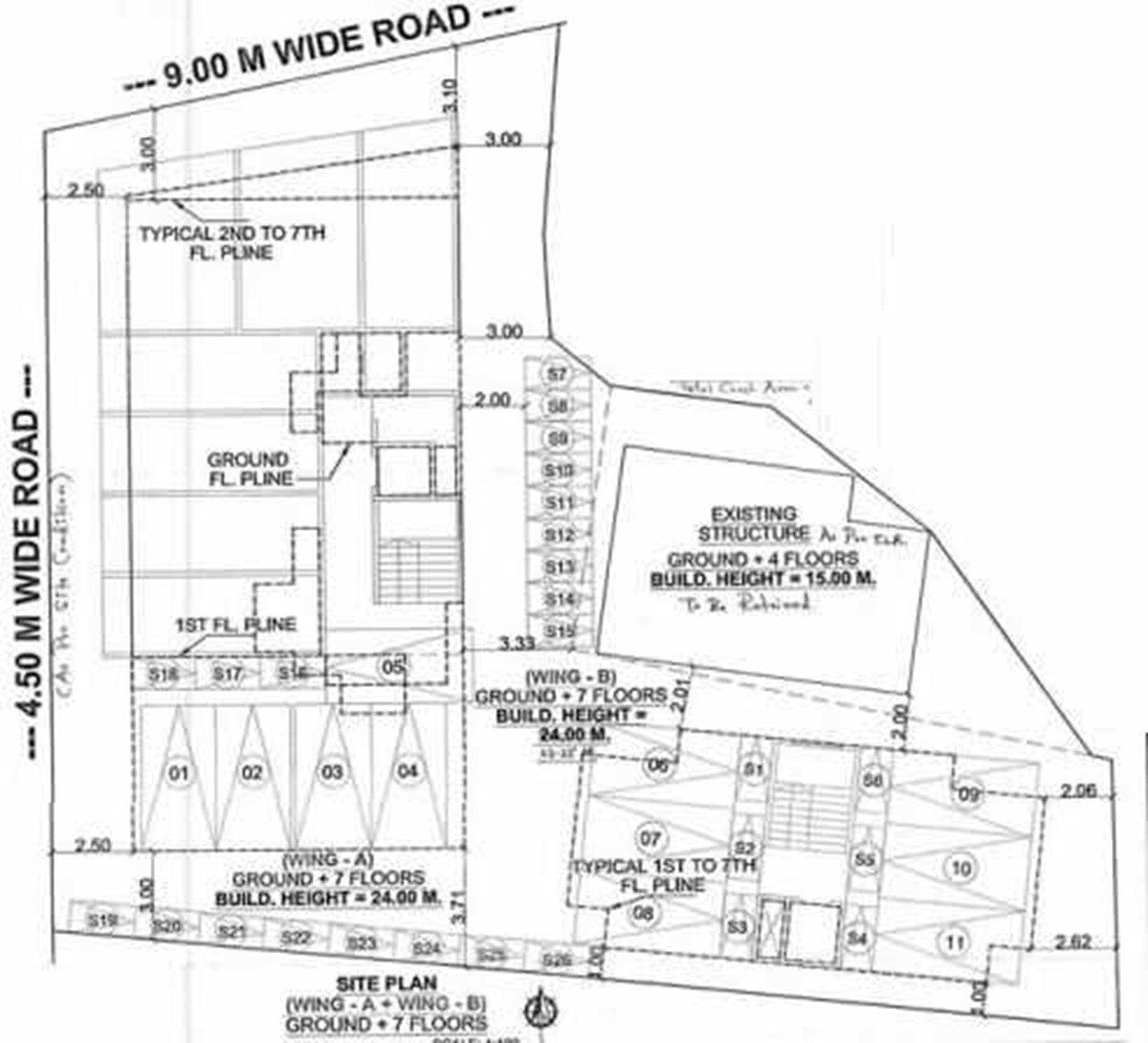

The master plan designates areas for residential development, comprising the proposed Wing A and Wing B, and incorporates an existing building. No specific land allocation percentages or unit densities are provided on this plan.

• The property fronts a 4.50 M wide road on its western side.
• Access is also provided from a 9.00 M wide road along the northern boundary.
• Internal pathways facilitate movement between the different wings and the existing structure.

• The plan illustrates distinct floor levels, including a Ground Floor Pline and a 1st Floor Pline for the proposed wings.
• Staircases are integrated into the design of each building for vertical circulation.
• Typical floor plans are indicated for the upper levels, specifically 2nd to 7th floors for Wing A, and 1st to 7th floors for Wing B.

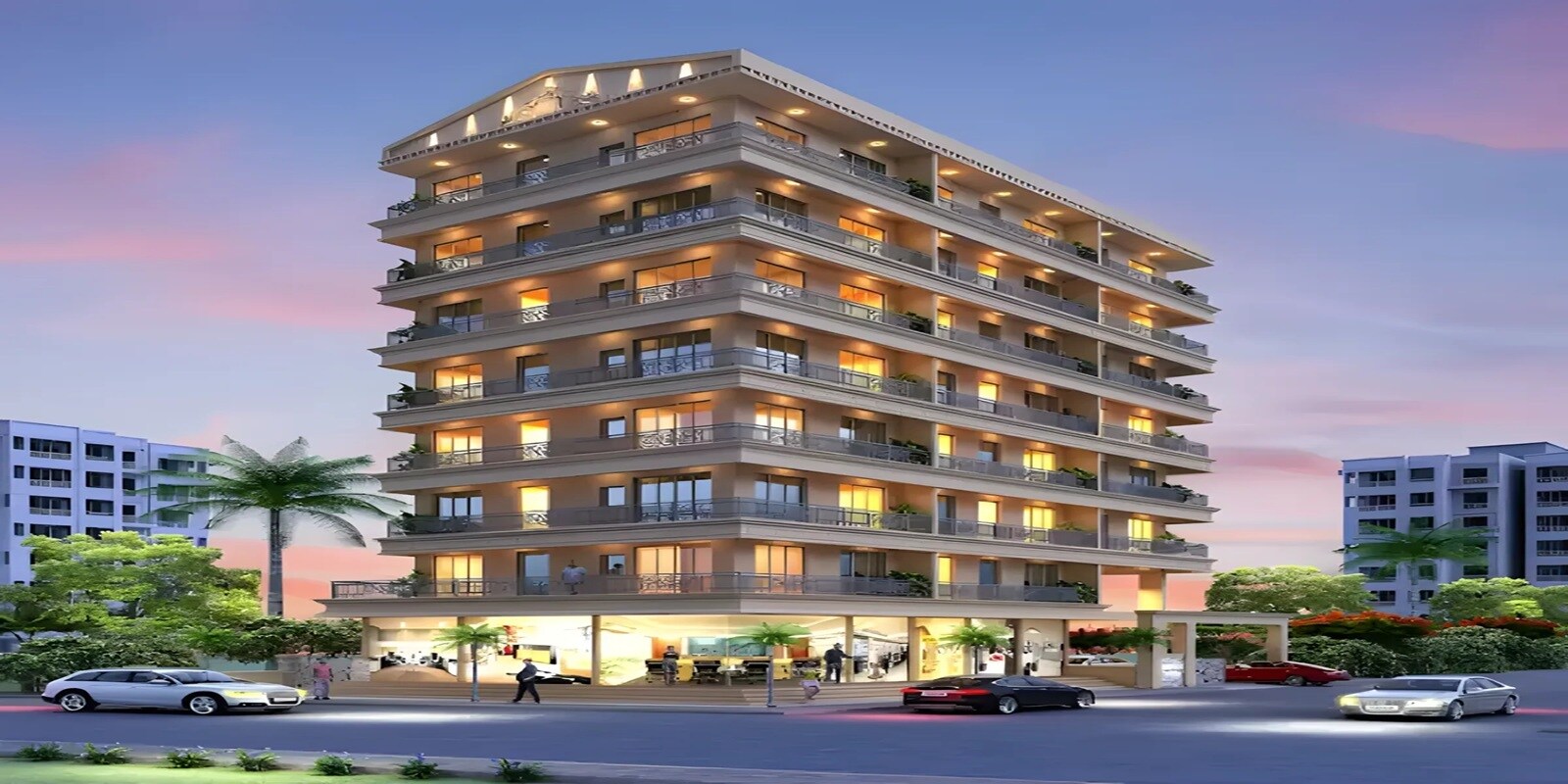

• Proposed Wing A and Wing B are designed as Ground + 7 floor buildings, each reaching a height of 24.00 M.
• An existing structure on the site stands at Ground + 4 floors, with a total building height of 15.00 M.
• The property boundaries are defined by a 4.50 M wide road and a 9.00 M wide road.
• Various setback and internal dimensions, such as 2.50 M, 3.00 M, and 3.10 M, are marked on the plan.
