FYB Baag E Rehmat Sarkhej-Okaf, Ahmedabad

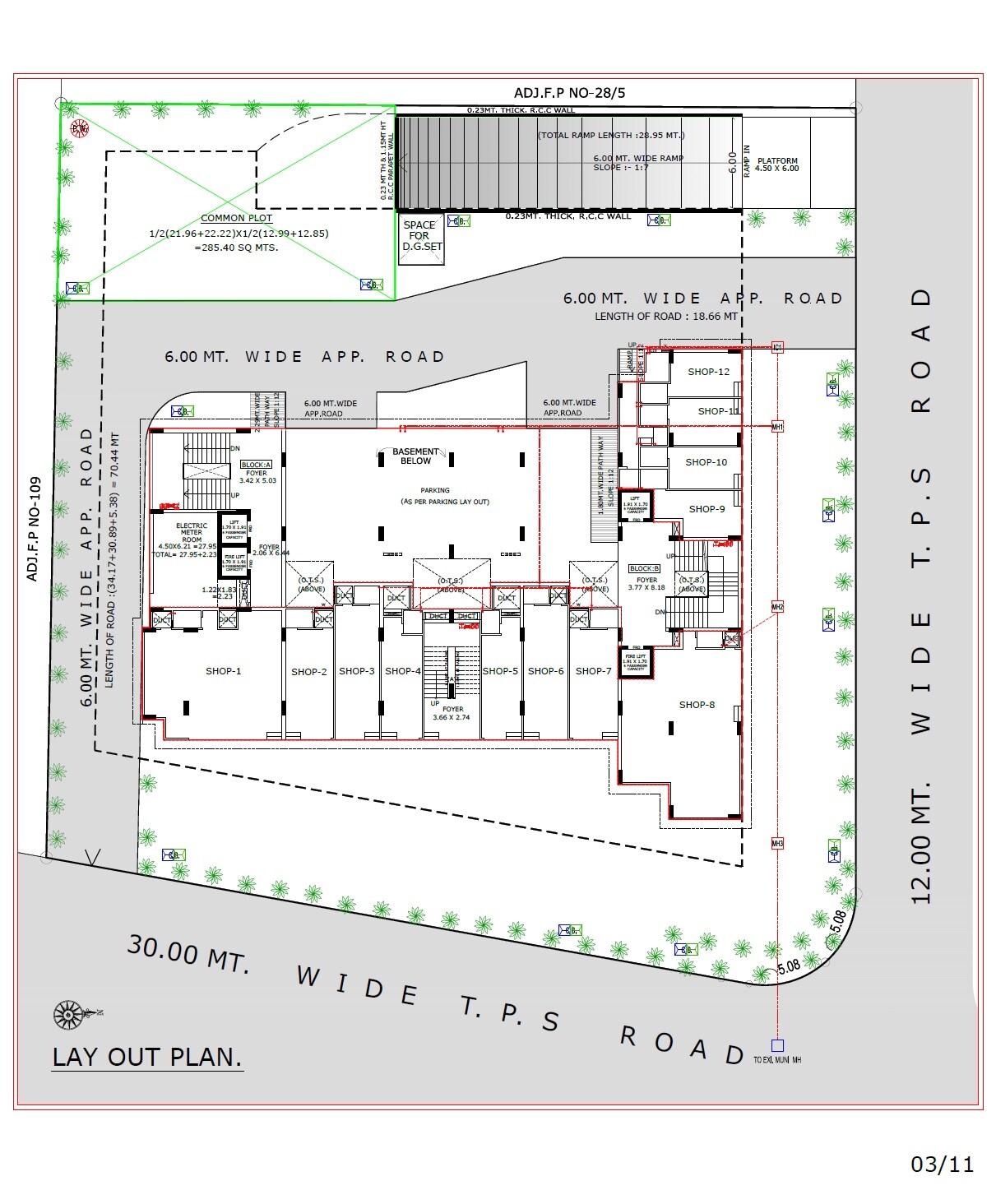

The property is primarily designed for commercial use, featuring 12 shop units spread across two blocks. Key areas include dedicated parking space located in the basement, an explicitly defined common plot for open space, and functional zones for utilities like a D.G. Set and an electric meter room. The design incorporates multiple access roads and internal pathways to facilitate movement within the complex.

• The property is bordered by a 6.00 MT. wide approach road (ADJ.F.P NO-109) on the left, with a total length of 70.44 meters.
• Another 6.00 MT. wide approach road (ADJ.F.P NO-28/5) is located at the top, measuring 18.66 meters in length, which includes a 6.00 MT. wide ramp for access.
• A 12.00 MT. wide T.P.S Road runs along the right side of the property.
• The bottom of the plan shows a 30.00 MT. wide T.P.S Road.

• Basement parking is provided, indicated as 'BASEMENT BELOW PARKING (AS PER PARKING LAY OUT).'
• There's a dedicated 'SPACE FOR D.G.SET' located near the main access ramp.
• An 'ELECTRIC METER ROOM' is present in Block A, measuring 4.50 X 6.21 meters.
• The plan includes two 'FIRE LIFT' installations, one in Block A and another in Block B, both with dimensions of 1.91 X 1.70 meters.

• A common plot area is explicitly measured at 285.40 SQ MTS.
• The main access ramp is 6.00 MT. wide with a slope of 1:7, and its total length is 28.95 MT.
• Internal pathways are 1.80 MT. wide in Block B and 0.23 MT. wide in Block A, both with a slope of 1:12.
• The development offers a total of 12 commercial units, designated as Shop-1 through Shop-12.
