Rudra Titanium Square Sector 26, Ahmedabad

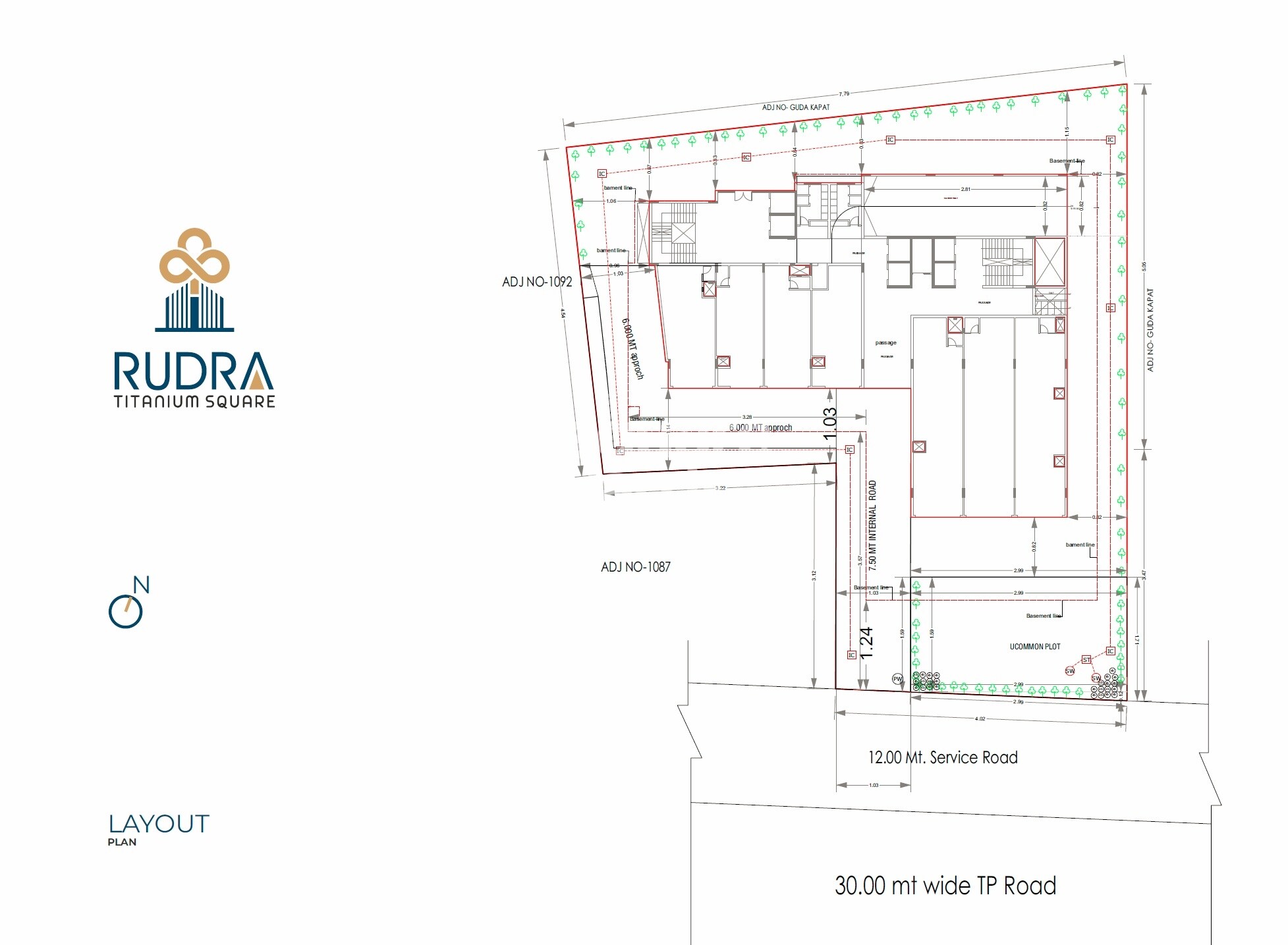

The plan showcases a commercial layout, indicated by the detailed floor plan within the building footprint and the 'Basement line' which suggests multi-level commercial space. There are no explicitly designated residential or distinct open space zones with specified allocations or percentages visible on this plan. Also, the plan does not provide information on units per acre.

• The property is fronted by a 30.00 meter wide TP Road, providing primary external connectivity.
• A 12.00 meter Service Road connects the property to the main TP Road.
• An internal road network includes a 7.50 meter wide Internal Road running along one side of the development.
• Two 6.000 meter wide approach points are detailed, facilitating direct access into the property.

• The development includes a basement level, indicated by a prominent 'Basement line' visible throughout the structure.
• An 'UCOMMON PLOT' is designated adjacent to the main building.
• Internal passages are integrated within the building layout for circulation.

• The master plan highlights a significant 30.00 meter wide TP Road as a main external frontage.
• A 12.00 meter wide Service Road provides secondary access to the property.
• An internal 7.50 meter wide Internal Road facilitates movement within the development.
• Adjacent plot numbers, such as ADJ NO-1092, ADJ NO-GUDA KAPAT, and ADJ NO-1087, are clearly marked.
