Kaavyaratna Narmada Gift City, Ahmedabad

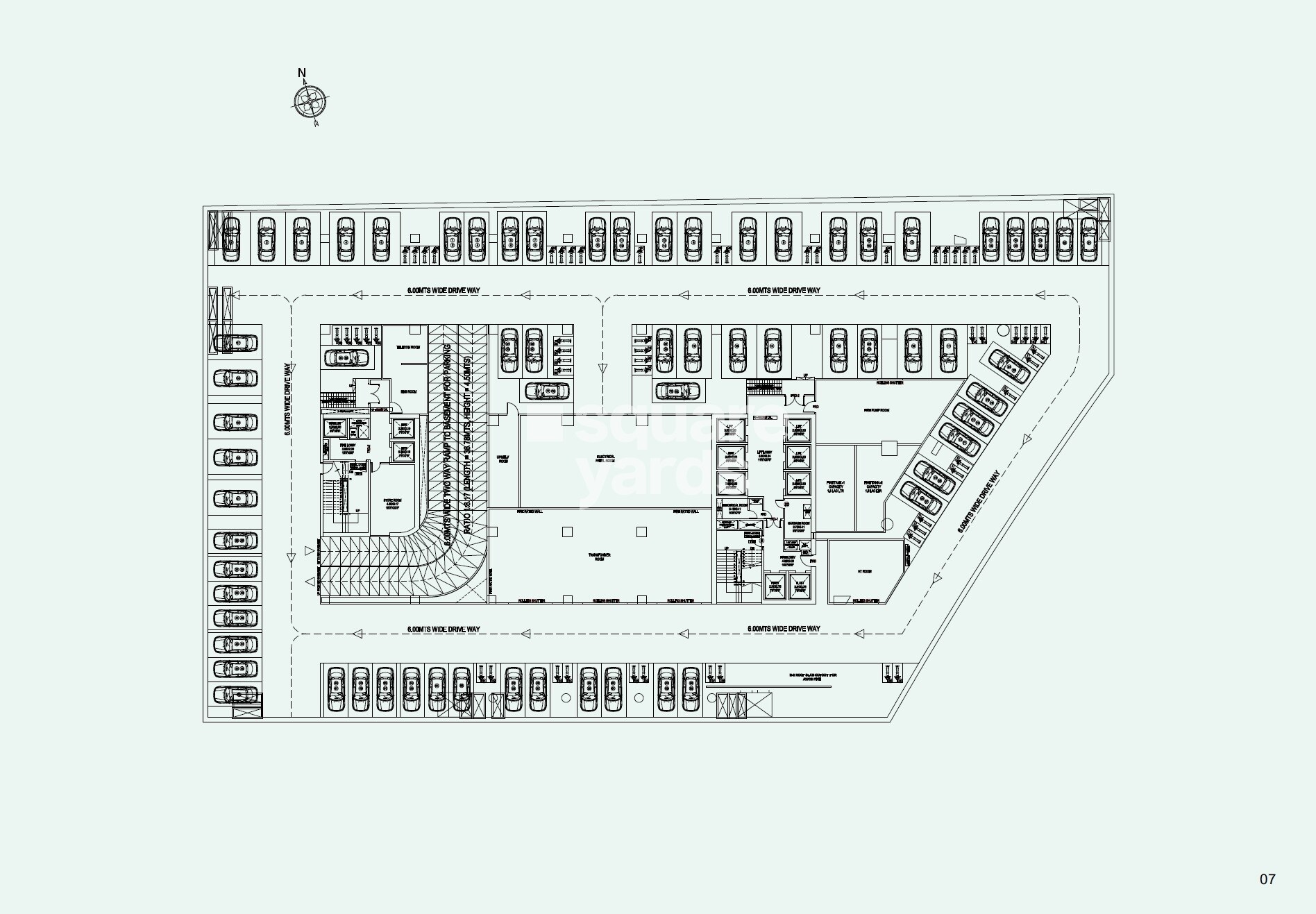

This master plan primarily showcases a dedicated parking level, likely a basement or ground floor, with extensive space allocated for vehicle parking. The layout efficiently integrates various utility and storage rooms within this functional design.

• Internal movement is facilitated by wide 6.00-meter driveways designed for smooth vehicular flow.
• A dedicated 6.00-meter-wide two-way ramp provides direct access to this parking level.
• This access ramp is engineered with a specific slope ratio of 1:8.17.

• The plan includes numerous designated parking bays for vehicles.
• Essential support infrastructure features a TELECOM ROOM and a PPR PUMP ROOM.
• Multiple conveniently located STORE ROOMs are incorporated for various storage requirements.

• The primary vehicular driveways within the plan maintain a consistent width of 6.00 meters.
• The two-way ramp to the basement parking measures 38.78 meters in length.
• This ramp also has a vertical height of 4.50 meters, contributing to its specified slope.
