Ananta Aqua Forte Kudasan, Ahmedabad

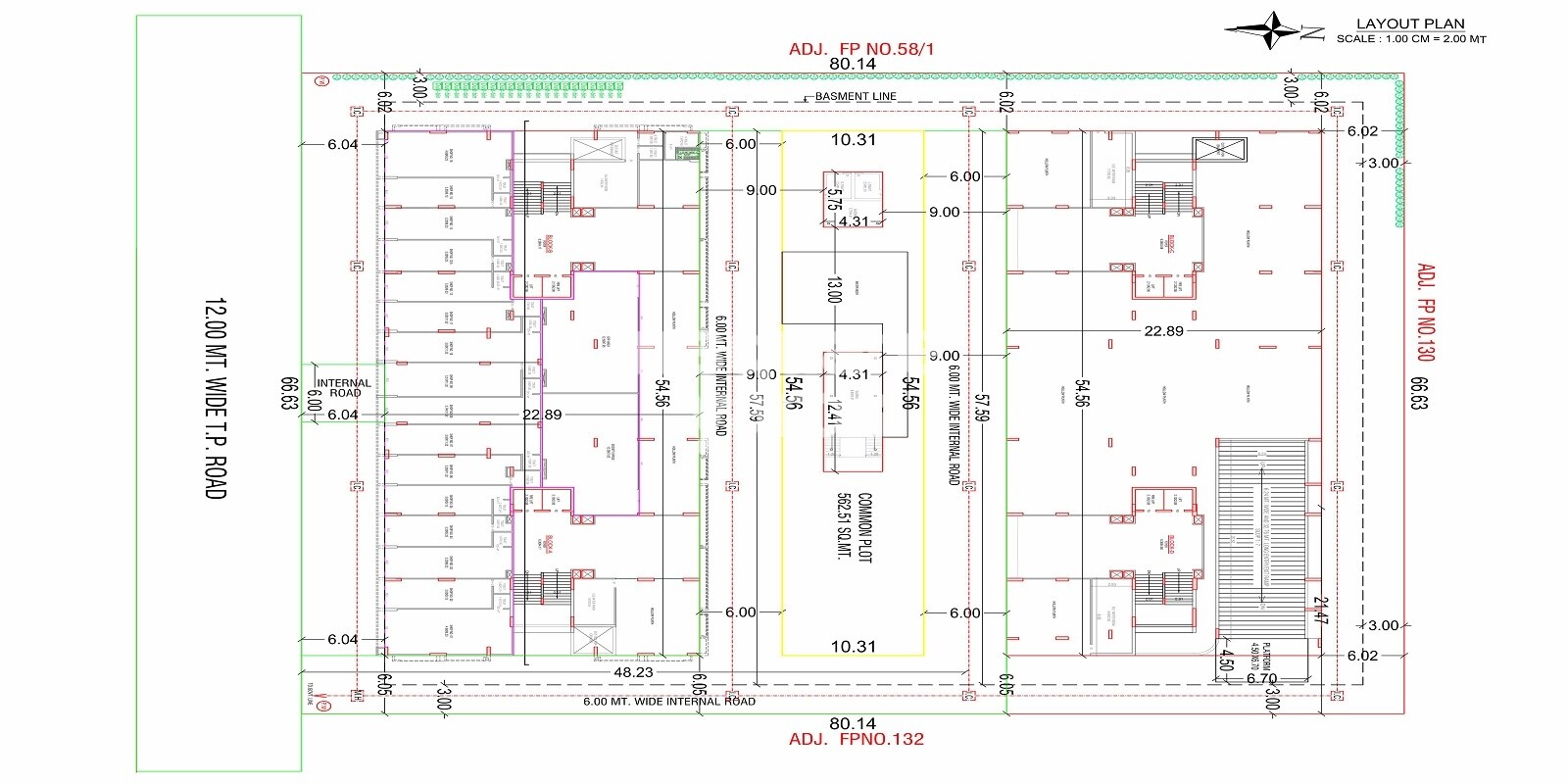

The plan primarily designates areas for a residential or commercial building footprint alongside internal roads and a significant common plot. The layout integrates a building block within a structured road network, providing internal access and shared open spaces.

• The site is bordered by a 12.00 meter wide T.P. Road on its western side, serving as a primary access point.
• Internal circulation is facilitated by a 6.00 meter wide internal road that runs along the periphery of the building blocks.
• The project location in Kudasan offers good external connectivity via Sardar Patel Ring Road (7.0 km), S G Road (2.5 km), and Gandhi Nagar Ahmedabad Highway (1.0 km).

• A dedicated common plot spans 562.51 square meters, providing a shared open space for residents.
• The plan indicates a basement line, suggesting an underground level for parking or utilities.
• A platform structure is detailed near the common plot.
• Landscaped green areas are shown along the 12.00 meter T.P. Road and adjacent property lines, enhancing the aesthetic appeal.

• The main external access is a 12.00 meter wide T.P. Road.
• Internal movement is supported by 6.00 meter wide internal roads.
• A common plot area is explicitly measured at 562.51 square meters.
• The layout plan is drawn to a scale where 1.00 CM represents 2.00 MT.
