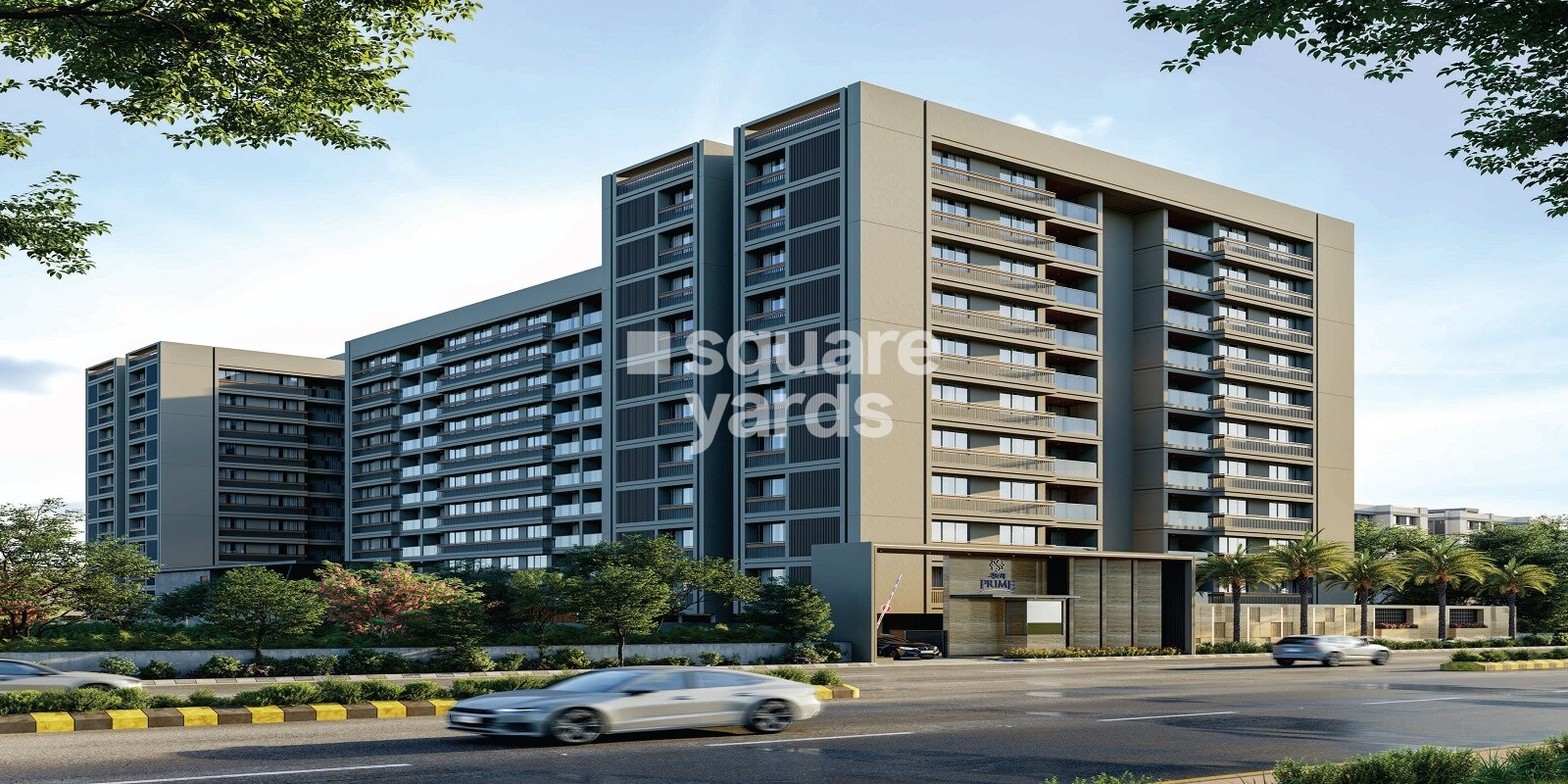

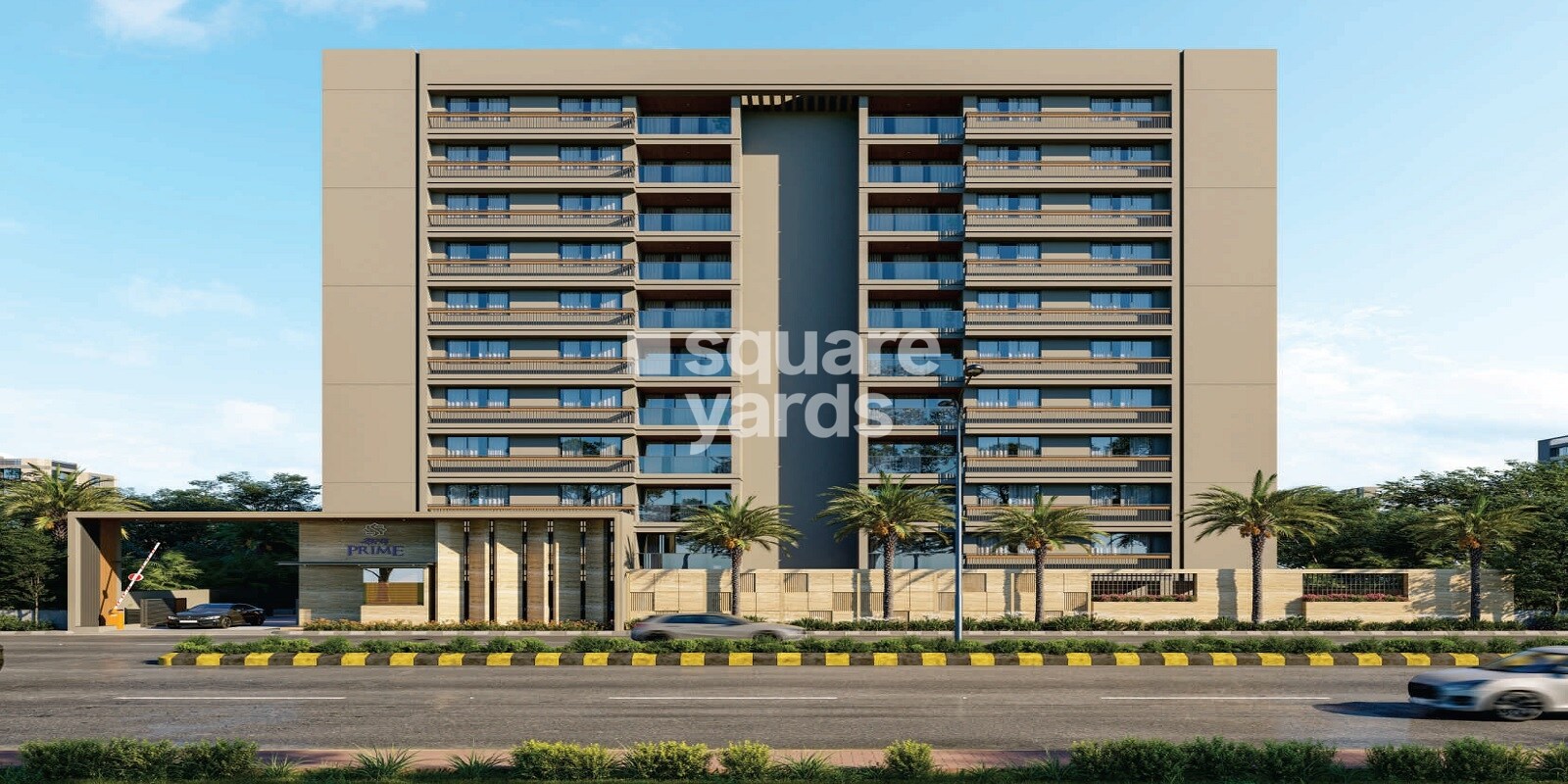

Satya Prime Nikol, Ahmedabad

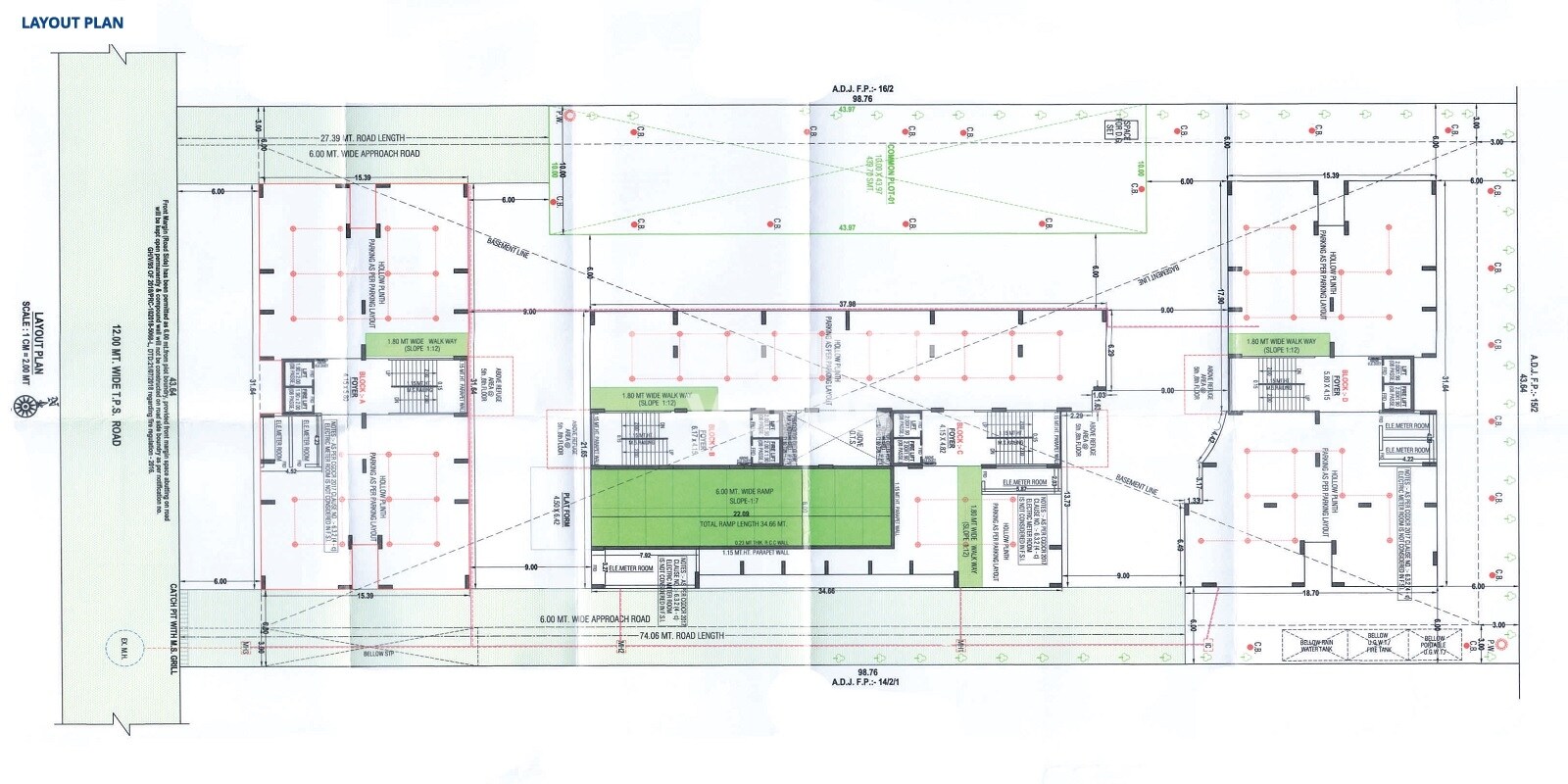

The master plan indicates a primary residential use. A 'COMMON PLOT-01' is designated, covering 439.70 square meters. Parking is integrated into the hollow plinth areas beneath each block. Spaces are also allocated for essential utilities like Electric Meter Rooms and a D.G. Set.

• The property is accessible via two 6.00-meter wide approach roads: one on the north (27.39 meters long) connecting to a 12.00-meter wide T.P.S. road, and another on the south (74.06 meters long).
• A 6.00-meter wide ramp, with a 1:7 slope and a total length of 34.66 meters, provides vehicular access to the parking levels.
• Pedestrian access is facilitated by 1.80-meter wide walkways, each designed with a 1:12 slope.
• The site maintains a 6.00-meter front margin from the plot boundary on the road side, as per regulations.

• Dedicated parking facilities are available within the hollow plinth beneath each residential block.
• Refuge areas are incorporated into the design, located on the 5th floor for Block B, Block C, and Block D, with additional refuge areas on the 8th floor for Block C and Block D.
• Essential services include Electric Meter Rooms for each block, a designated space for a D.G. Set, and underground tanks for rainwater collection and fire fighting purposes.

• The common plot (COMMON PLOT-01) measures 10.00 meters by 43.97 meters, equating to 439.70 square meters.
• The main access ramp is 6.00 meters wide, featuring a 1:7 slope and a total length of 34.66 meters.
• Lifts are installed in each block, with dimensions including 1.00m x 2.00m for an 8-passenger lift in Block B and 2.00m x 1.00m for lifts in Blocks C and D.
• All main approach roads and walkways are specified with widths of 6.00 meters and 1.80 meters, respectively.
