Srijan The Royal Ganges Maheshtala, Kolkata

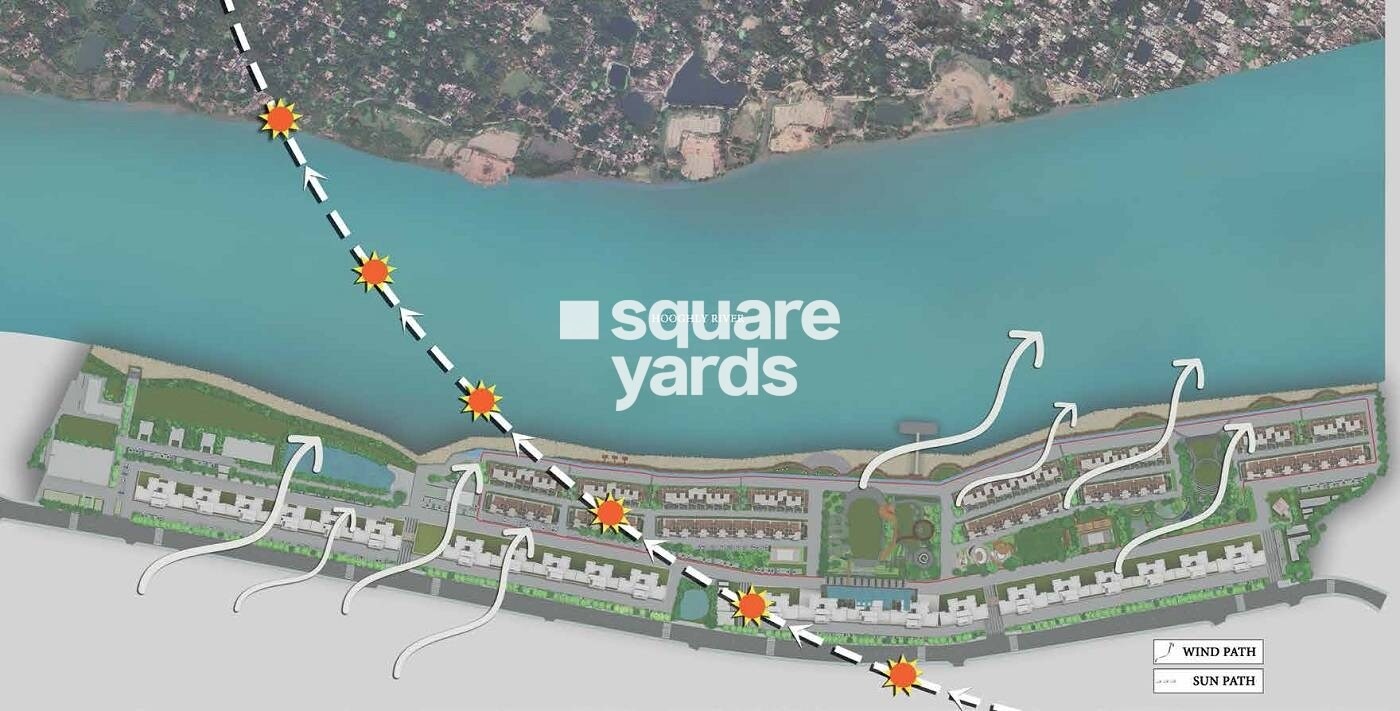

This master plan primarily illustrates a residential development situated along a riverfront. It shows a series of distinct housing units, accompanied by several open green spaces. Specific allocations, percentages for different zones, or a density figure like units per acre are not detailed in the visible plan.

• The property, Srijan The Royal Ganges, benefits from external connectivity to Belghoria Expressway NH 12, located approximately 10.0 km away.
• Internally, the development features a network of visible roads and pathways that provide access throughout the residential areas and lead to the various green spaces.
• Primary access points appear to be from the land side, integrating into the development's internal road system.

• The development includes a series of residential units, designed to be positioned along the riverfront, offering views and access to the water.
• Multiple landscaped green spaces are integrated throughout the plan, providing open areas for residents.
• A distinct river access point or jetty is visible along the waterfront, suggesting direct interaction with the river.
• The master plan explicitly incorporates environmental design considerations, indicating both natural wind paths and sun paths across the site.

• The master plan visually represents natural wind paths, shown by white curved arrows, indicating how air circulates through the development.
• Solar considerations are highlighted with 'SUN PATH' indicators, depicted by orange sunbursts and a dashed white line, illustrating sun exposure across the property.
• No specific numerical measurements for individual unit sizes, plot dimensions, or internal road widths are provided within the visible master plan.
