Shiv Nivasa Chandkheda, Ahmedabad

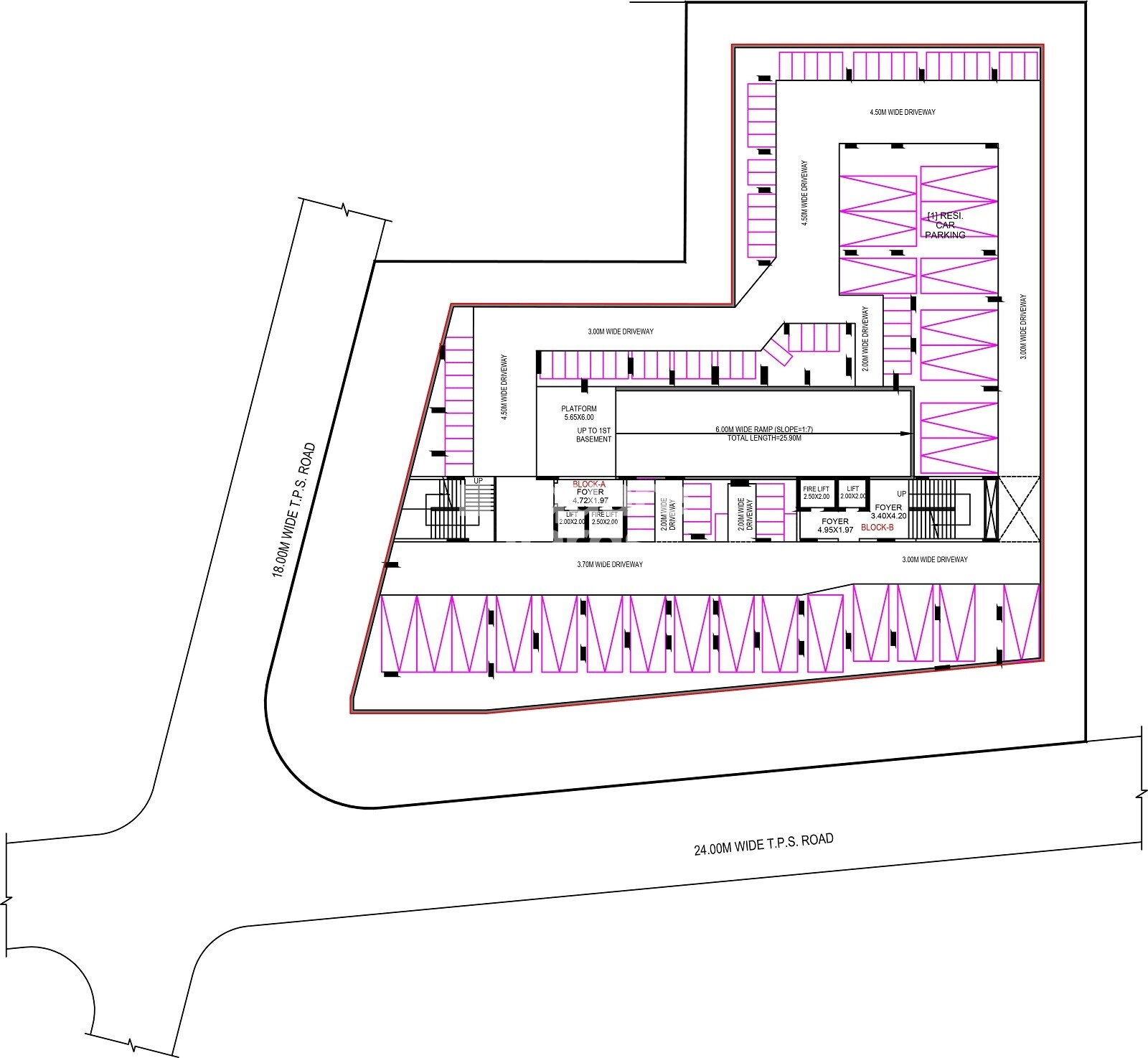

The master plan primarily designates space for residential use, evident from the dedicated car parking areas, integrated with significant internal road networks and amenity spaces. There are no explicit unit counts per acre or land percentages provided on this plan, but the layout efficiently incorporates circulation and core services within the structure.

• The property is accessible directly from two T.P.S. roads: an 18.00M wide T.P.S. road located to the west and a 24.00M wide T.P.S. road along the south side.
• An internal network of driveways, including 4.50M, 3.00M, 2.00M, and 3.70M wide sections, ensures smooth vehicular circulation within the premises, connecting different parts of the property.
• A dedicated 4.50M wide driveway specifically provides access to residential car parking areas.

• Each block, Block-A and Block-B, is equipped with both lifts (2.00X2.00) and fire lifts (2.50X2.00) for efficient vertical transportation.
• Dedicated residential car parking is provided throughout the basement level, accessible via an internal driveway system and a 6.00M wide ramp.
• A prominent platform area, measuring 5.65X6.00, is located near Block-A, serving as an access point up to the 1st basement.
• Multiple foyer areas are strategically placed, including a 4.72X1.97 foyer in Block-A and foyers of 3.40X4.20 and 4.95X1.97 in Block-B.

• The primary access roads are 18.00M and 24.00M wide T.P.S. roads, providing broad and direct connectivity.
• The main ramp to the 1st basement is 6.00M wide with a 1:7 slope, extending for a total length of 25.90M.
• Internal driveways vary in width, including 4.50M, 3.00M, 2.00M, and 3.70M sections, facilitating varied vehicle movement.
• Foyers range in size, such as 4.72X1.97 in Block-A and 3.40X4.20 or 4.95X1.97 in Block-B, while standard lifts are 2.00X2.00 and fire lifts are 2.50X2.00.
