Ajmir Exotica Beliaghata, Kolkata

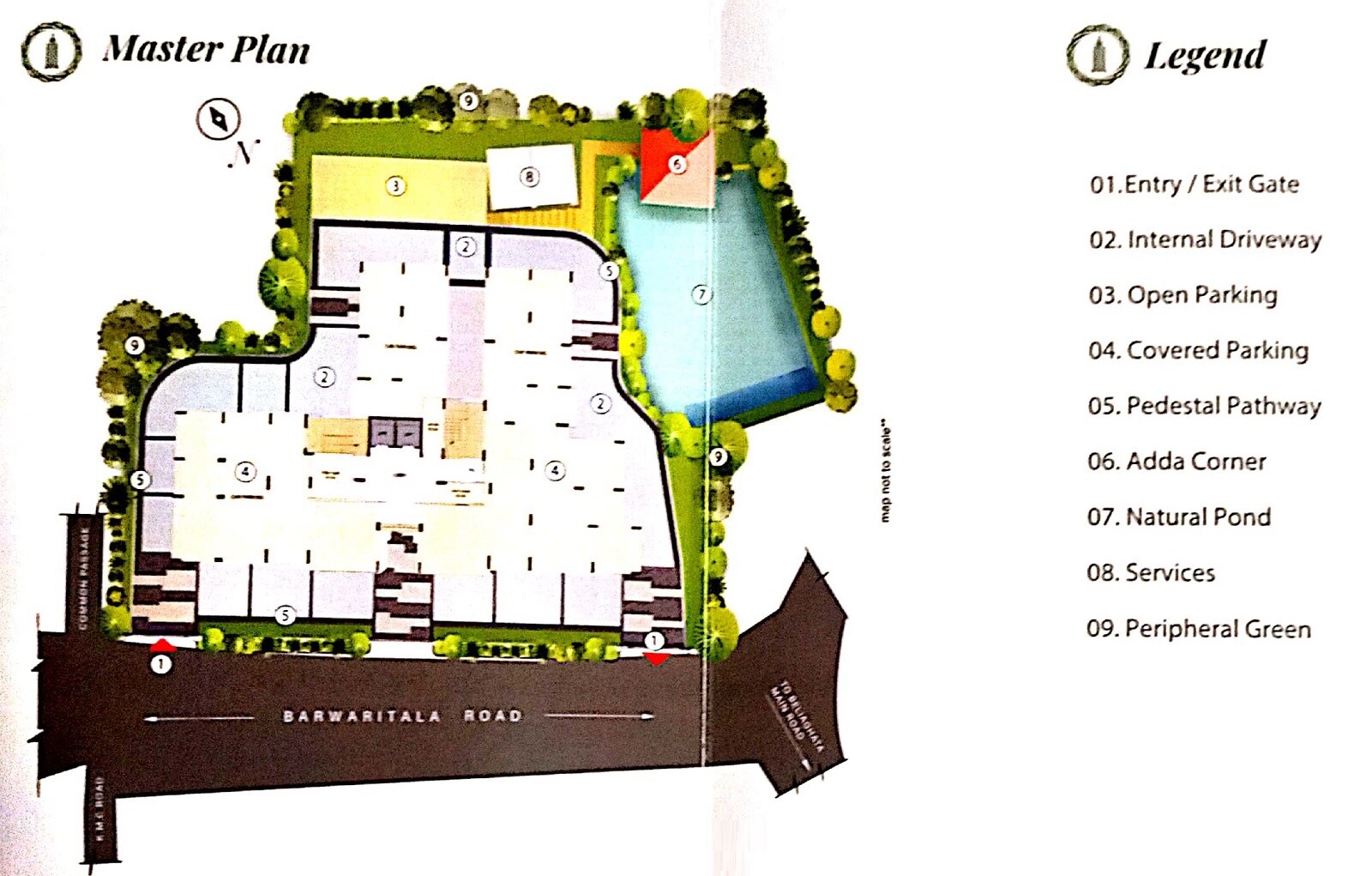

The plan outlines residential structures along with areas designated for open parking, covered parking, and a services area. It also includes open spaces such as a natural pond, an Adda Corner, and peripheral green areas. Specific land use percentages or units per acre are not indicated in this master plan.

• The property has direct frontage and access from Barwaritala Road to the south.
• Two distinct Entry/Exit Gates are located along Barwaritala Road.
• K.M.C Road connects to Barwaritala Road on the west, with a common passage leading into the property area.
• An internal driveway facilitates circulation throughout the complex.
• A passage on the east side connects to the main road leading to Beliaghata.

• A natural pond is a key feature on the eastern side.
• An Adda Corner offers a designated social space.
• The property includes both open and covered parking options.
• Pedestal pathways are designed for pedestrian movement throughout the site.

• The master plan clearly marks North for orientation.
• It explicitly states that the 'map is not to scale'.
• There are two main Entry/Exit Gates from Barwaritala Road.
• The plan identifies one natural pond and one Adda Corner.
