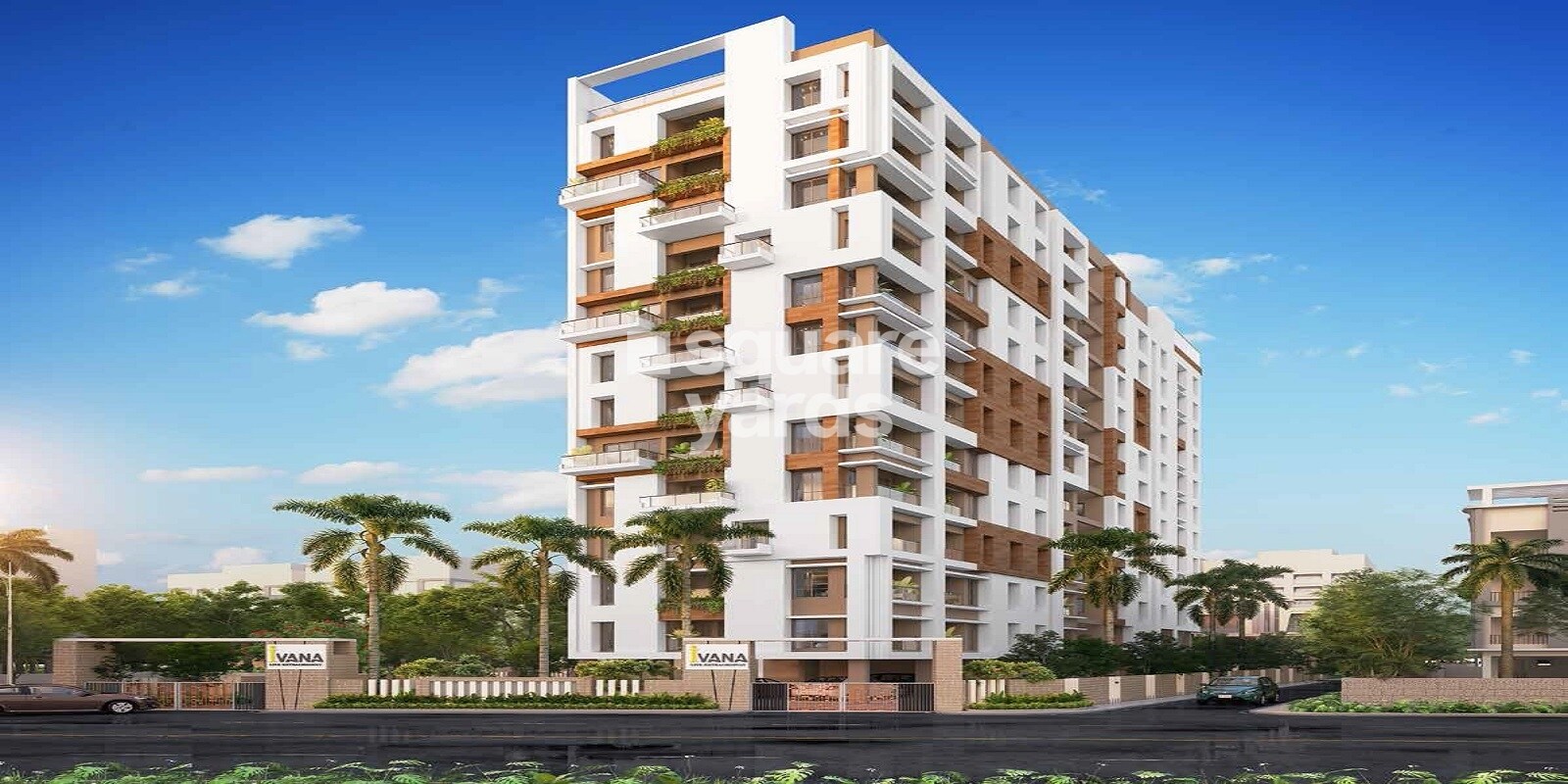

GRK Ivana Nayabad, Kolkata

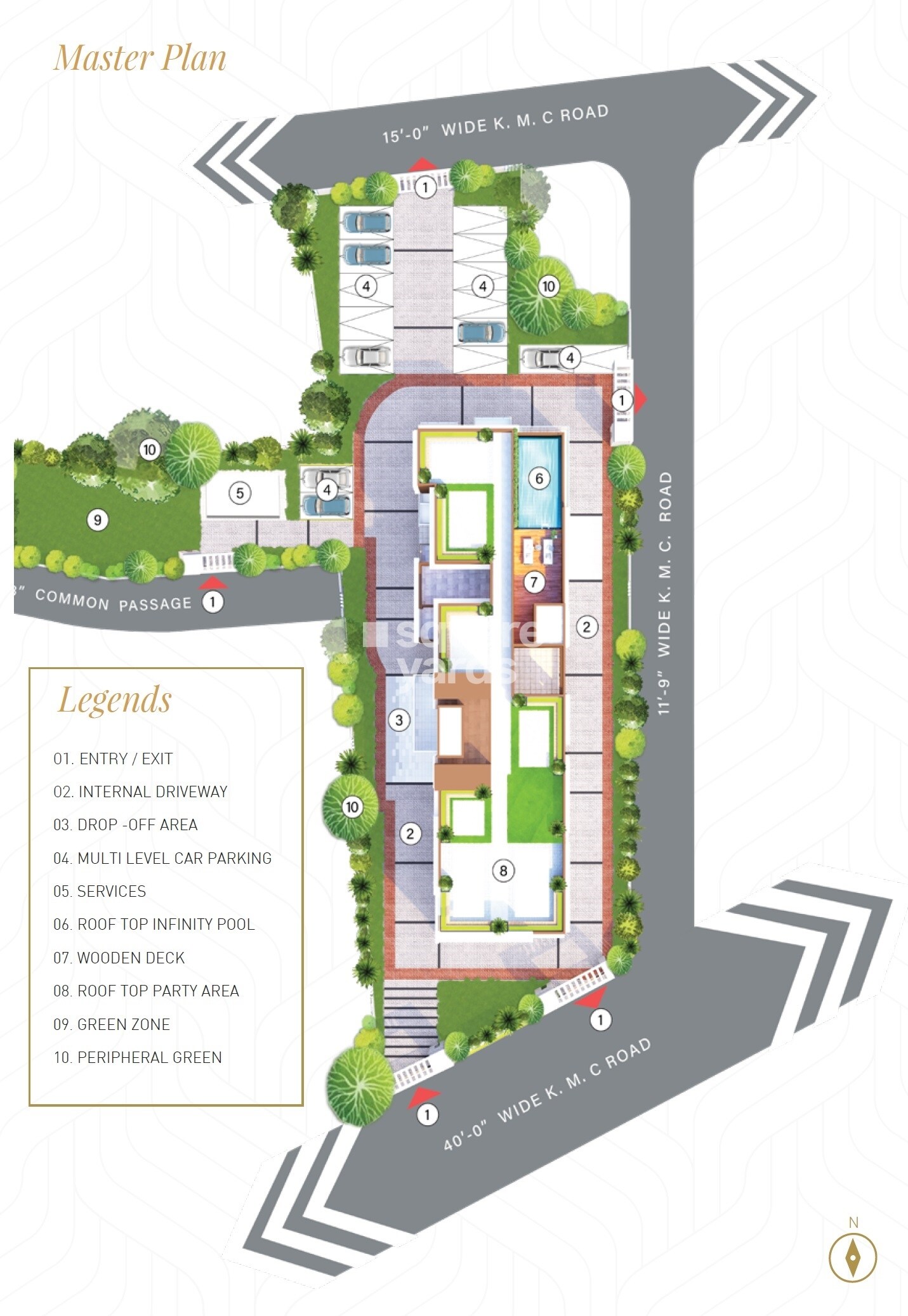

The site primarily features a central building for residential purposes, complemented by dedicated 'Multi Level Car Parking' facilities. Open spaces include a distinct 'Green Zone' (09) and 'Peripheral Green' (10) areas that frame the development, integrating natural landscaping around the structure.

• Access to the property is via an 'Entry / Exit' point (01) that opens directly onto the main external roads.
• An 'Internal Driveway' (02) facilitates movement within the property.
• The property is bordered by three K.M.C. Roads of varying widths: a 15'-0' wide road, an 11'-9' wide road, and a 40'-0' wide road.
• There is also an 8' 'Common Passage' along the western edge of the property.

• A dedicated 'Drop-Off Area' (03) is provided at the entrance.
• Residents and visitors have access to 'Multi Level Car Parking' (04).
• The rooftop features a 'Roof Top Infinity Pool' (06) accompanied by a 'Wooden Deck' (07) and a 'Roof Top Party Area' (08).
• 'Services' (05) areas are integrated within the design.

• The K.M.C. Roads adjacent to the property measure 15'-0', 11'-9', and 40'-0' in width.
• An 8' wide 'Common Passage' is located on the western boundary.
• All access points for 'Entry / Exit' are consistently marked as '01' on the plan.
• Designated 'Multi Level Car Parking' areas are identified by the number '04'.
