Lakshmi Eternia Vile Parle East, Mumbai

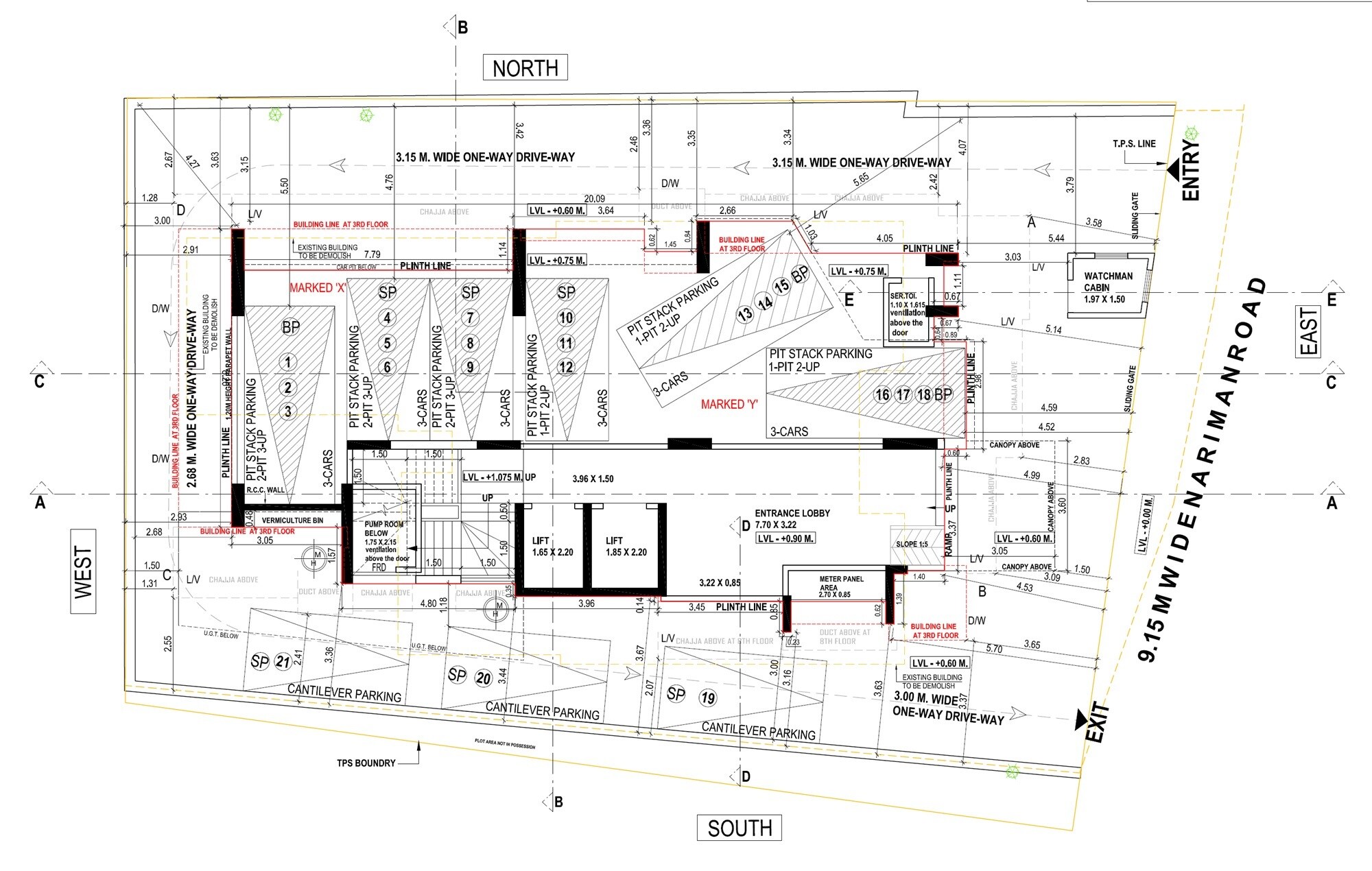

This master plan primarily details the ground-level functional layout, which focuses on vehicular circulation, parking provisions, and essential building utilities. The design incorporates existing structures planned for demolition, making way for efficient space utilization primarily for parking and building access. The plan does not delineate separate residential or commercial zones or provide density figures like units per acre.

• The property features direct access from the 9.15-meter wide Nariman Road on its eastern side, with clearly designated Entry and Exit points.
• Internal vehicular circulation is facilitated by a 3.15-meter wide one-way drive-way, ensuring smooth traffic flow within the premises.
• An additional 3.00-meter wide one-way drive-way, featuring a 1:5 slope, is also integrated into the access network for efficient movement.
• Controlled access is managed through sliding gates located at both the entry and exit points of the property.

• Extensive parking solutions are provided, including Pit Stack Parking (2-Pit 3-Up and 1-Pit 2-Up configurations) and multiple Cantilever Parking bays to maximize vehicle capacity.
• Essential service infrastructure includes a Pump Room (1.75 X 2.15 m), underground water tanks (UG.T. BELOW), and a Vermiculture Bin (3.96 X 1.50 m) for sustainable waste management.
• Near the main entry, a Watchman Cabin (1.97 X 1.50 m) and a Service Toilet (1.10 X 1.615 m) are strategically placed for convenience and security.
• Building access is facilitated by an inviting Entrance Lobby (7.70 X 3.22 m) and two Lifts (1.65 X 2.20 m and 1.85 X 2.20 m).

• The main entrance faces the 9.15-meter wide Nariman Road, highlighting prominent frontage.
• The project incorporates parking for a minimum of 21 cars through a combination of Pit Stack (2-Pit 3-Up and 1-Pit 2-Up) and Cantilever parking systems.
• The Entrance Lobby offers a substantial welcoming space measuring 7.70 meters by 3.22 meters.
• Varying ground levels are meticulously planned, featuring plinth levels at LVL-+0.60 M., LVL-+0.75 M., LVL-+0.90 M., and LVL-+1.075 M. above a base LVL-+0.00 M.
