Neminath Nemi Bhavan Goregaon West, Mumbai

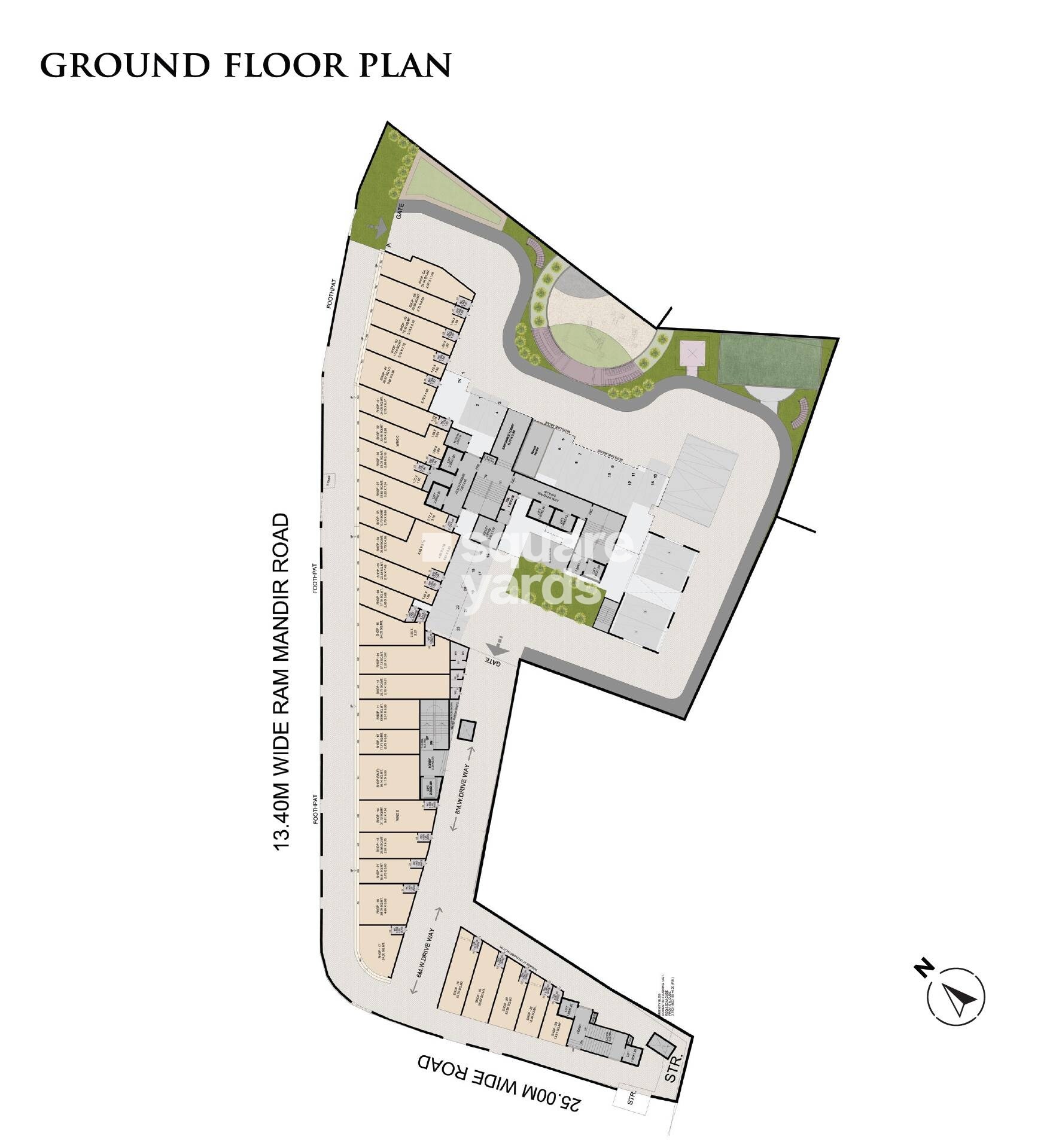

The ground floor is designated for commercial use, featuring numerous individual shop units. Dedicated open green spaces, including what appears to be a landscaped garden or recreational area, are integrated into the layout. There are also specific areas for utility infrastructure, such as the domestic flushing unit and an amenity building. Residential units are not shown on this ground floor plan. Density figures like units per acre are not provided.

• The property has primary access from two external roads: the 13.40M Wide Ram Mandir Road and a 25.00M Wide Road.
• Internal connectivity is provided by 6M Wide Drive Ways, which lead into the property and connect different sections.
• Multiple gated entry points are visible, providing controlled access to the premises.
• Footpaths are present along the external roads and internal driveways, enhancing pedestrian movement.

• Landscaped green spaces are located in the upper-right section of the plan, offering recreational or aesthetic value.
• Multiple internal 'LIFT' and 'STR' (staircase) locations are marked within the commercial blocks for vertical circulation.
• An 'ENTRANCE LOBBY' serves as a main entry point for one of the commercial wings.
• A 'DOMESTIC FLUSHING UGT.' (Underground Tank) and an 'ASENITY BLDG' (likely an amenity or utility building) are positioned in the lower-right area.

• The main access roads are specified with widths of 13.40 meters (Ram Mandir Road) and 25.00 meters.
• Internal vehicular access is facilitated by 6-meter wide driveways.
• Individual shop areas are detailed, for example, SHOP-01 measures 24.00 square meters, SHOP-05 measures 30.70 square meters, and SHOP-17 measures 84.30 square meters.
• The 'DOMESTIC FLUSHING UGT.' has a stated requirement of 500 cubic meters, with provision for 8 M.Qurs.

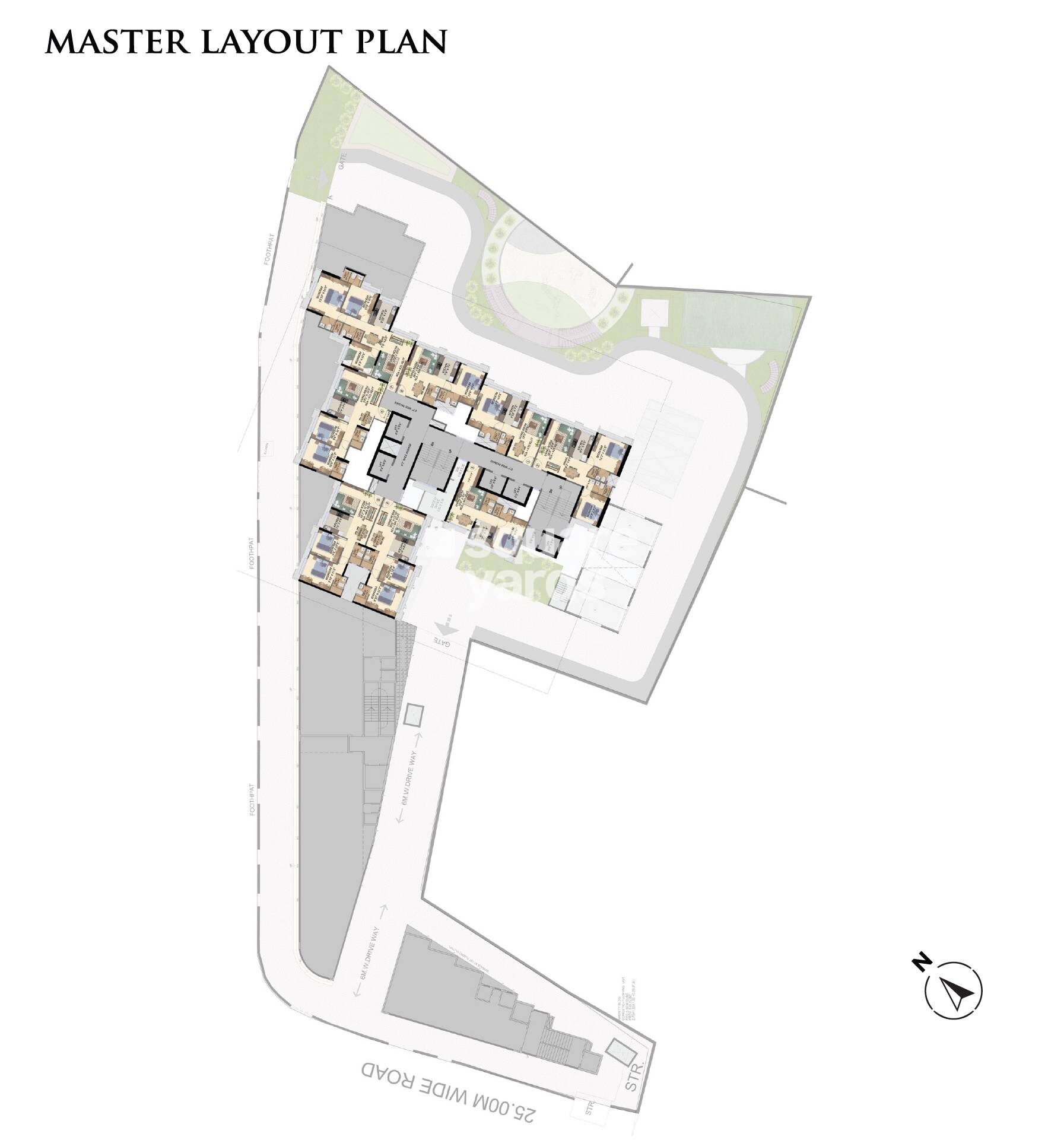

This master plan primarily dedicates its space to residential use, centered around a multi-unit building. The surrounding areas are thoughtfully allocated for essential infrastructure like vehicular driveways, pedestrian footpaths, and integrated green spaces for landscaping. We haven't specified units per acre or percentage allocations for these zones on the plan.

• The property directly borders a 25.00-meter wide public road.
• Internal vehicular circulation is facilitated by 6-meter wide driveways.
• There are designated footpaths throughout the property to ensure pedestrian safety and access.
• The site features two controlled entry and exit points, marked as 'GATE's.
• The project benefits from its proximity to Swami Vivekanand Road (0.5 km away) and Western Express Highway (1.0 km away).

• The main building houses various residential units, each typically comprising bedrooms, living rooms, and kitchens.
• Essential utilities include a dedicated meter room and a domestic flushing underground tank with a capacity of 550 cubic meters.
• Integrated green spaces and landscaping are incorporated around the residential building and along the access routes.
• Clearly defined pedestrian footpaths are provided for easy movement within the premises.

• The external connecting road is 25.00 meters wide.
• Internal driveways within the property measure 6 meters in width.
• The domestic flushing underground tank has a substantial capacity of 550 cubic meters.
• Typical room dimensions observed include a bedroom at approximately 9 feet by 12 feet 9 inches, and a kitchen with dimensions of 9 feet 1 inch by 4 feet 7 inches.
