Mirador Oasis Estate Shahapur, Thane

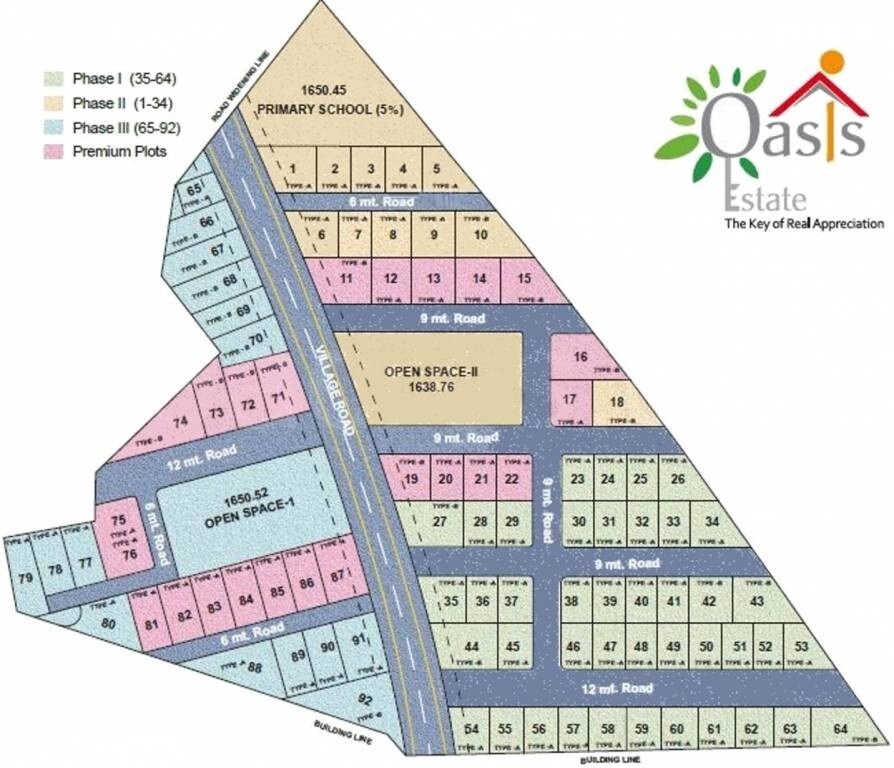

The master plan clearly defines distinct zones: residential plots, a Primary School, and two significant Open Spaces. The Primary School occupies an area of 1650.45 units, representing 5% of the total area. Open Space-I spans 1650.52 units, and Open Space-II covers 1638.76 units. The plan details plots in three phases: Phase I (plots 35-64), Phase II (plots 1-34), and Phase III (plots 65-92), along with designated Premium Plots. The plan doesn't specify units per acre.

• The property features an internal road network with varying widths: 6 mt., 9 mt., and 12 mt. roads.
• A prominent VILLAGE ROAD serves as a central artery, connecting different sections of the estate.
• The development includes a 'ROAD WIDENING LINE' at its northwest boundary, indicating future infrastructure planning.
• The property is well-connected externally via the Mumbai Agra National Highway, located 1.5 km away.

• A designated PRIMARY SCHOOL within the estate, covering 1650.45 units, making up 5% of the total area.
• Two substantial green spaces: OPEN SPACE-I (1650.52 units) and OPEN SPACE-II (1638.76 units), providing areas for recreation and relaxation.
• The plan features clearly marked 'BUILDING LINE' along several roads, guiding construction boundaries.

• The development comprises a total of 92 residential plots, segmented into three phases: Phase I (35-64), Phase II (1-34), and Phase III (65-92).
• Internal road widths are clearly defined at 6 meters, 9 meters, and 12 meters.
• Specific area allocations include a PRIMARY SCHOOL at 1650.45 units (5%), OPEN SPACE-I at 1650.52 units, and OPEN SPACE-II at 1638.76 units.
• The plan also identifies specific 'Premium Plots'.

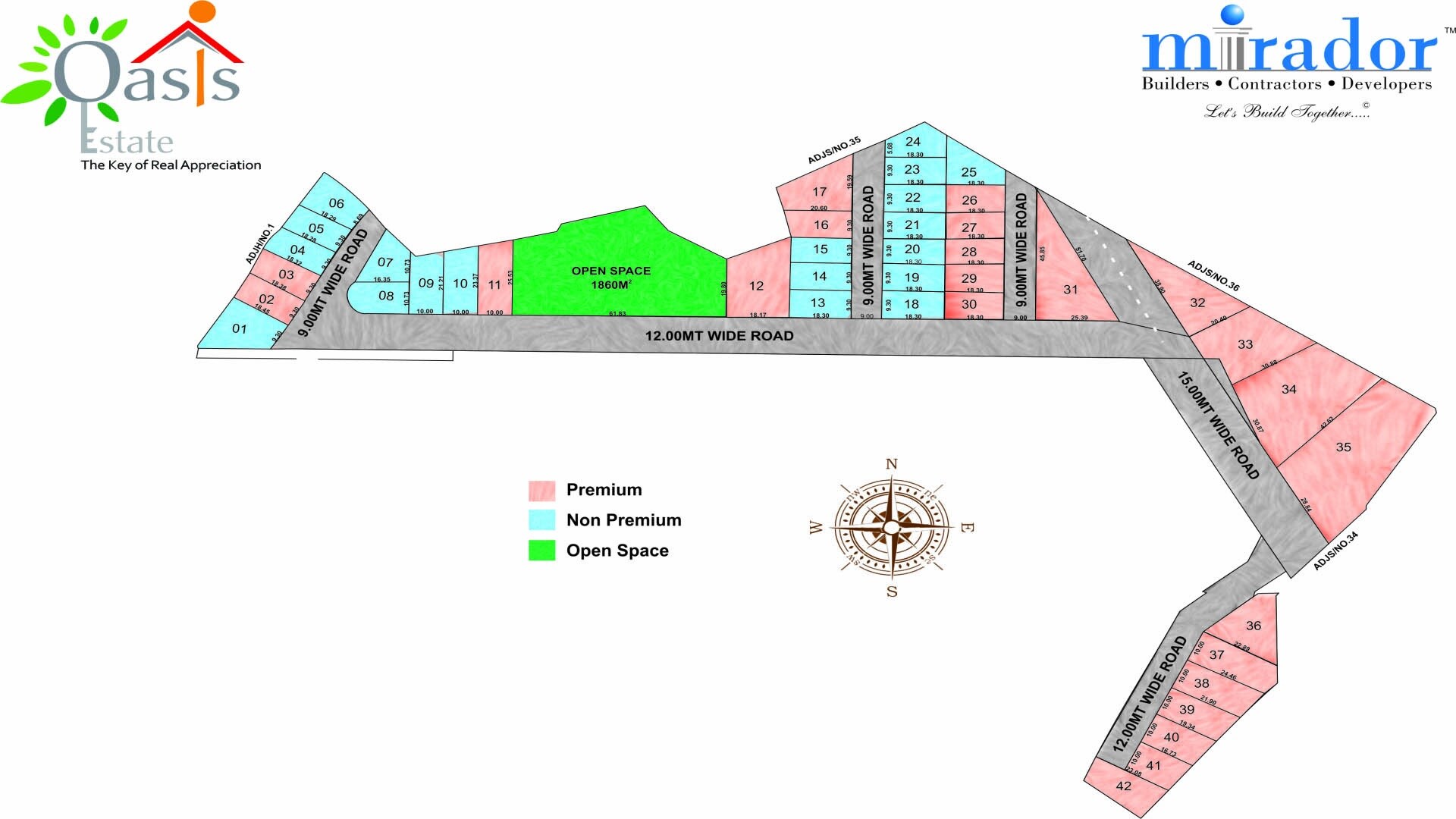

The development categorizes plots into 'Premium' (marked in pink) and 'Non Premium' (marked in light blue). A dedicated 'Open Space' is also part of the plan, covering an area of 1860 square meters.

• Internal road networks include a central 12.00 MT Wide Road.
• Several 9.00 MT Wide Roads provide access within different plot clusters.
• A 15.00 MT Wide Road serves the eastern portion of the development.
• The project connects to the Mumbai Agra National Highway, which is approximately 1.5 km away.
• Boundaries with adjacent properties are noted as ADJS/NO.1, ADJS/NO.35, ADJS/NO.36, and ADJS/NO.34.

• The master plan explicitly features an 'Open Space' spanning 1860 square meters for communal use.
• No other specific amenities like a clubhouse, parks, or sports courts are labeled or depicted on this plan.

• The estate comprises 42 plots, numbered from 01 to 42.
• Road widths within the development are clearly defined as 9.00 meters, 12.00 meters, and 15.00 meters.
• Individual plot dimensions are provided, for example, Plot 01 measures 18.45 meters, Plot 13 measures 18.30 meters, and Plot 32 measures 30.87 meters.
