Zotra Eden Park Raja Rajeshwari Nagar, Bangalore

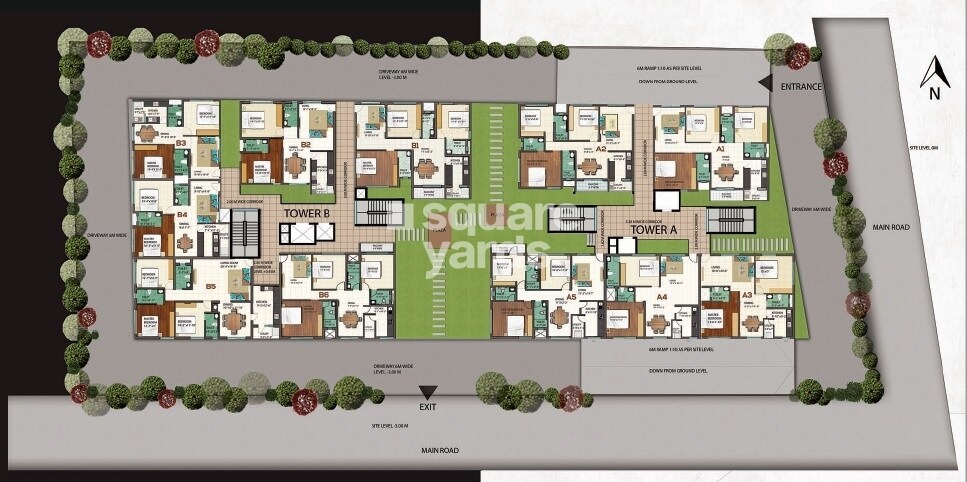

The master plan primarily designates the land for residential use, housing two towers amidst planned green spaces and necessary access infrastructure. There are no indications of commercial zones within this plan, maintaining a focused residential environment.

• The property features internal road networks, including a 6-meter-wide driveway on the north side and a 4-meter-wide driveway on the south side.
• Primary access points include an 'ENTRANCE' on the north-east and an 'EXIT' on the south-west, both connecting directly to a 'MAIN ROAD'.
• The project is well-connected to significant external roads, with Mysore Road N R Road located 3.0 km away and the NICE Peripheral Ring Road 2.5 km away.
• Ramps are incorporated to manage elevation changes, including a 4-meter-wide ramp with a 1:8 slope and a 6-meter-wide ramp with a 1:7.5 slope, accommodating different site levels.

• Extensive landscaping, featuring a variety of trees and green spaces, frames the residential towers and driveways.
• Designated areas for parking are integrated, with access provided via driveways and ramps leading to basement levels (e.g., 'LEVEL-BOM').
• The overall site design emphasizes open areas around the buildings, providing aesthetic and functional green surrounds for residents.

• Internal driveways measure 6 meters wide on the north side and 4 meters wide on the south side.
• The site features varying elevations, indicated by 'SITE LEVEL-300M' and a higher 'LEVEL-339'.
• Ramps are engineered with specific slopes of 1:8 and 1:7.5 to facilitate movement between different levels.
• The development comprises two main residential structures, Tower A and Tower B, housing a total of 11 units per floor across both towers as shown in this typical plan.
