Sawasdee Center Vasundhara Sector 2B, Ghaziabad

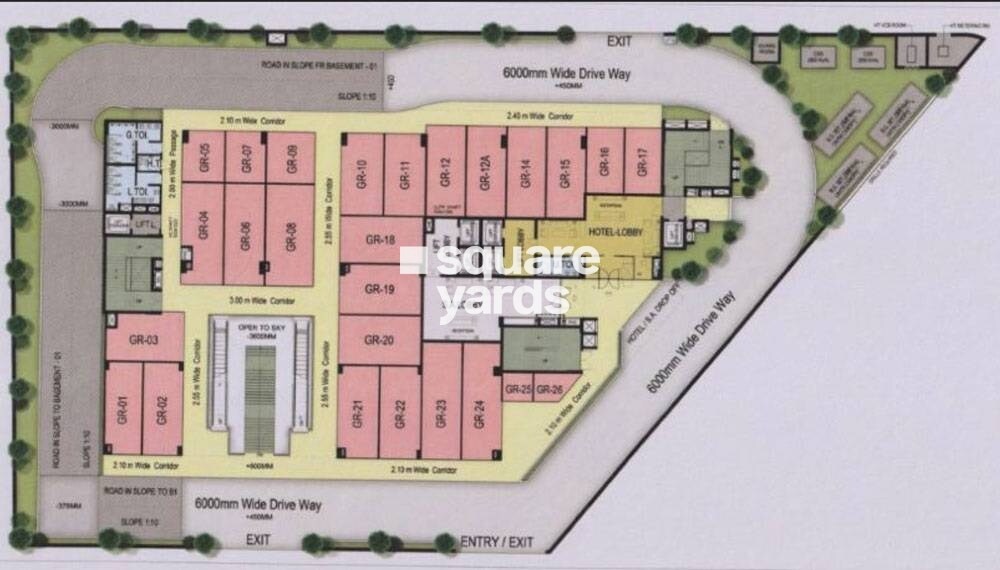

The plan primarily designates space for commercial or retail units, labeled GR-01 through GR-26, including GR-12A, totaling 27 distinct units. A significant portion of the layout is dedicated to a Hotel Lobby and an associated Hotel Drop Off area, suggesting a mixed-use commercial and hospitality development. An 'OPEN TO SKY' area is also visible, providing a central open space.

• The property features a main '6000mm Wide Drive Way' providing access and egress points labeled 'EXIT' and 'ENTRY/EXIT.'
• Internal connectivity is managed through several corridors of varying widths, including '2.10m Wide Corridor,' '2.40m Wide Corridor,' '2.35m Wide Corridor,' '2.55m Wide Corridor,' '3.00m Wide Corridor,' '2.13m Wide Corridor,' and a '2.00m Wide Passage.'
• Access to a basement level is provided via 'ROAD IN SLOPE FR BASEMENT-01' with a slope of 1:10, and additional roads with slopes of 1:10 and 1:50 leading to Basement-01 and B1 respectively.
• A dedicated 'HOTEL SA DROP OFF' area is strategically located adjacent to the Hotel Lobby, facilitating direct guest access.

• A prominent 'HOTEL LOBBY' serves as a central point for the hospitality component of the development.
• An 'OPEN TO SKY' section is incorporated, likely serving as a natural light source or an open-air common area.
• Essential utilities like 'G TOI' (Ground Toilet), 'H.T.' (High Tension), 'L.T.O.L.' (Low Tension/Low Tension Outside Line), and a 'LIFTL' (Lift Lobby) are indicated within the plan, supporting the functional aspects of the building.

• Main driveways are consistently '6000mm Wide Drive Way' for vehicle circulation.
• Internal corridors vary in width, with common dimensions such as '2.10m,' '2.40m,' '2.55m,' and '3.00m.'
• Slopes for basement access roads are specified as 'SLOPE 1:10' and 'SLOPE 1:50.'
• The plan details 27 commercial/retail units, labeled from GR-01 to GR-26 (including GR-12A), indicating a substantial retail presence.
