Creators Gayatri Vatika Sector 123, Noida

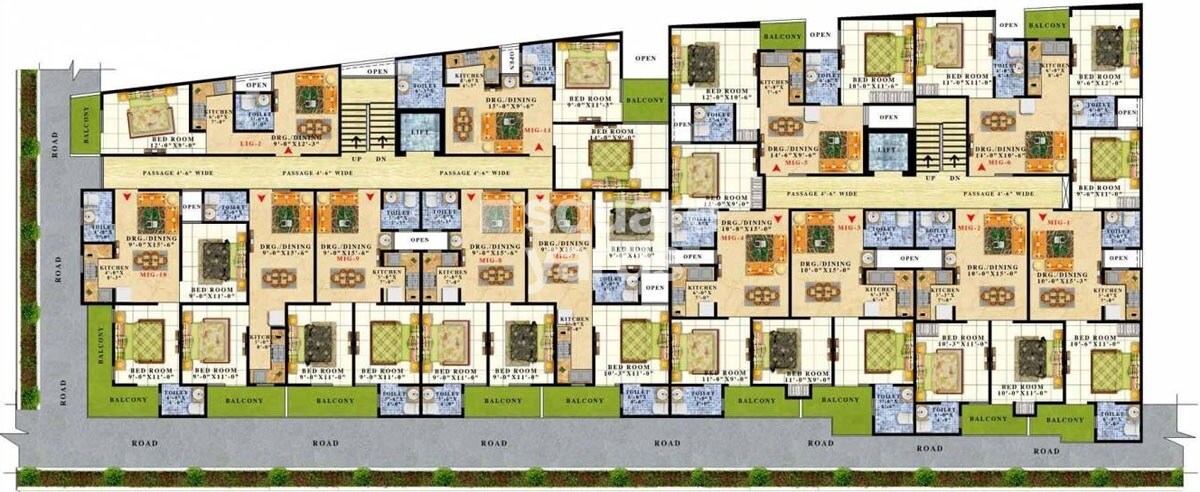

The primary land use within this master plan is residential. The residential structure is bordered by designated 'ROAD' areas and integrates various 'OPEN' spaces, presumably for light and ventilation. There are no visible commercial zones indicated on the plans.

• The property features internal 'ROAD' networks along its perimeter, providing direct frontage and access to many residential units.
• Internal pedestrian circulation is managed through 'PASSAGE' areas, with explicitly labeled widths of 4'-0' WIDE and 4'-6' WIDE.
• Each residential unit is typically equipped with a 'BALCONY', offering private outdoor space and views towards the adjacent roads or open areas.
• The project benefits from external access to major routes, with NH 24 located 3.5 km away and the GN West Greater Noida Link Road just 0.5 km from the site.

• A 'LIFT' system is centrally integrated into the building structure to facilitate vertical movement for residents.
• Staircases are clearly marked with 'UP' and 'DN' indicators, providing an alternative means of vertical access.
• Individual 'OPEN' spaces are incorporated into the design of units, intended to enhance natural light penetration and ventilation throughout the residences.

• The residential units are sequentially identified, ranging from MIG-1 through MIG-18.
• Internal common passages are precisely measured at 4'-0' WIDE or 4'-6' WIDE.

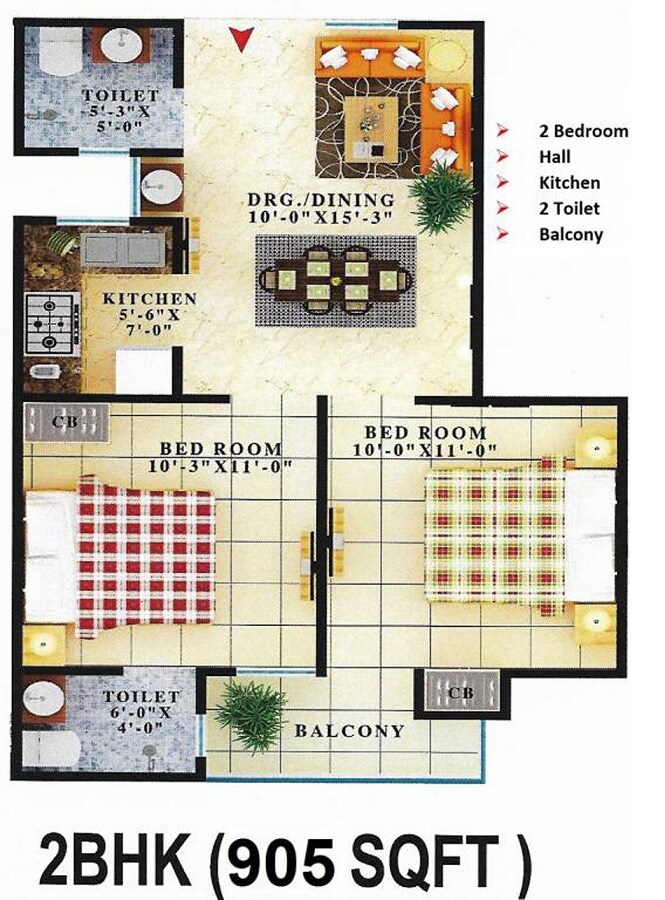

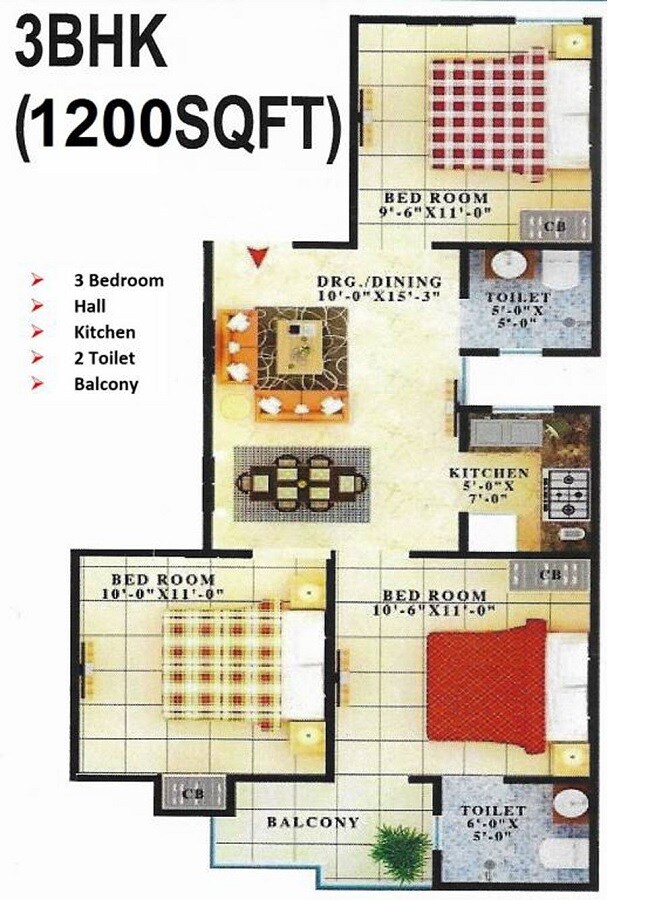

• Typical bedroom dimensions are provided, such as 12'-0'X9'-0', 9'-0'X11'-0', and 10'-0'X11'-0'.
• Drawing and dining areas in various units include dimensions like 9'-8'X12'-3' and 10'-0'X15'-8'.
