NGP Shivneel Talegaon Dabhade, Pune

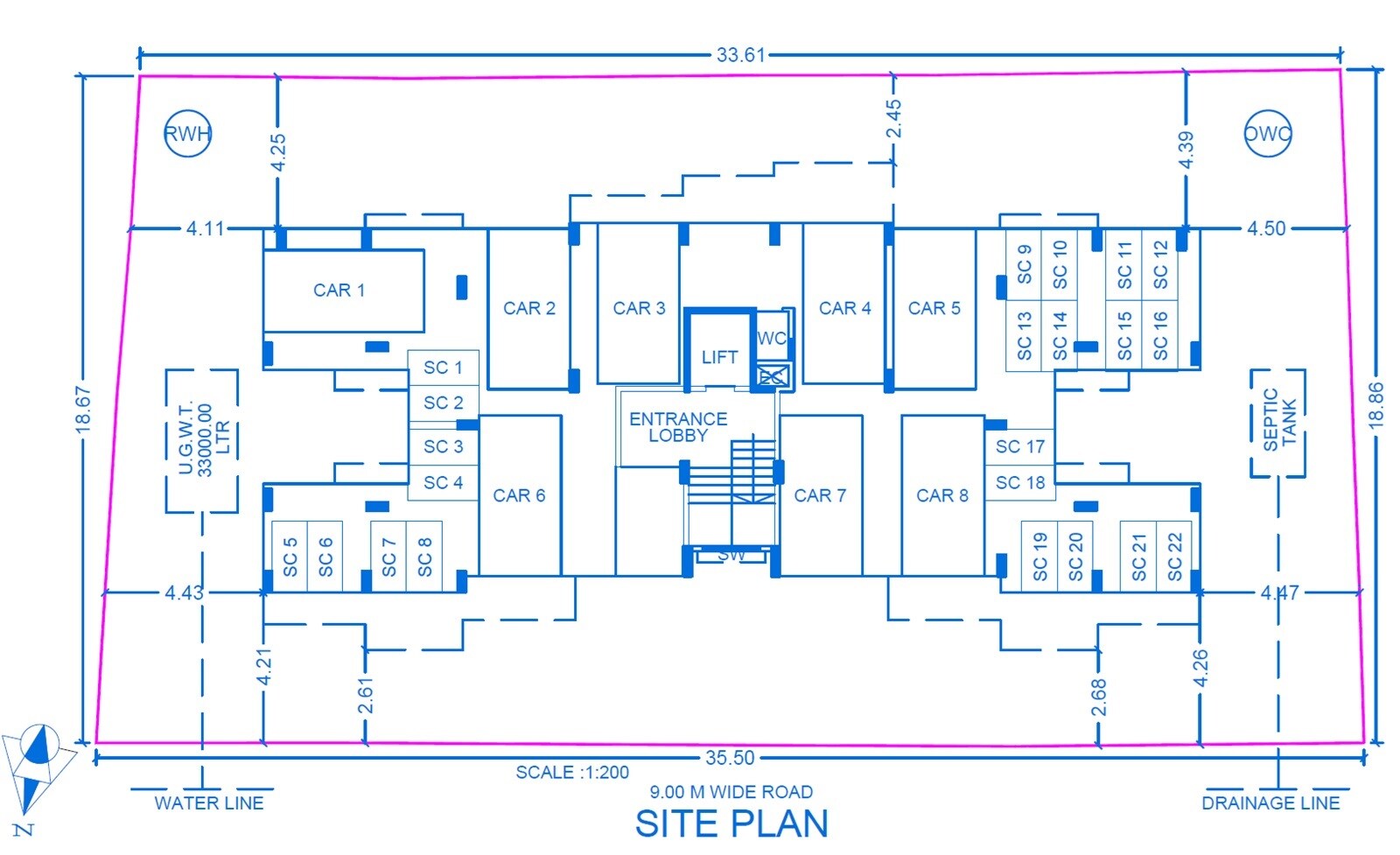

This master plan primarily details a ground-floor layout dedicated to vehicular parking and individual service or storage compartments. It allocates space for 8 distinct car parking slots and 22 service/storage units, with central access provided by a lift and an entrance lobby.

• The property has direct access from a 9.00-meter wide road on its southern boundary.
• An internal driveway facilitates vehicle movement to the various car parking slots (CAR 1 through CAR 8).
• External utility connections, specifically a water line and a drainage line, are clearly indicated along the property boundaries.

• An Underground Water Tank (U.G.W.T.) with a capacity of 33,000 liters is situated on the west side of the property.
• A Septic Tank is located on the east side.
• A Rainwater Harvesting (RWH) system is integrated into the plan, positioned near the northwest corner.
• Central accessibility is provided by an Entrance Lobby and a Lift.

• The overall plot dimensions are approximately 35.50 meters in length and 18.86 meters in width.
• The main building footprint measures about 33.61 meters in length and 18.67 meters in width.
• There are 22 designated service/storage compartments, labeled SC 1 through SC 22.
• The plan includes 8 individual car parking slots, labeled CAR 1 through CAR 8.
