Sumit Residency Akurdi, Pune

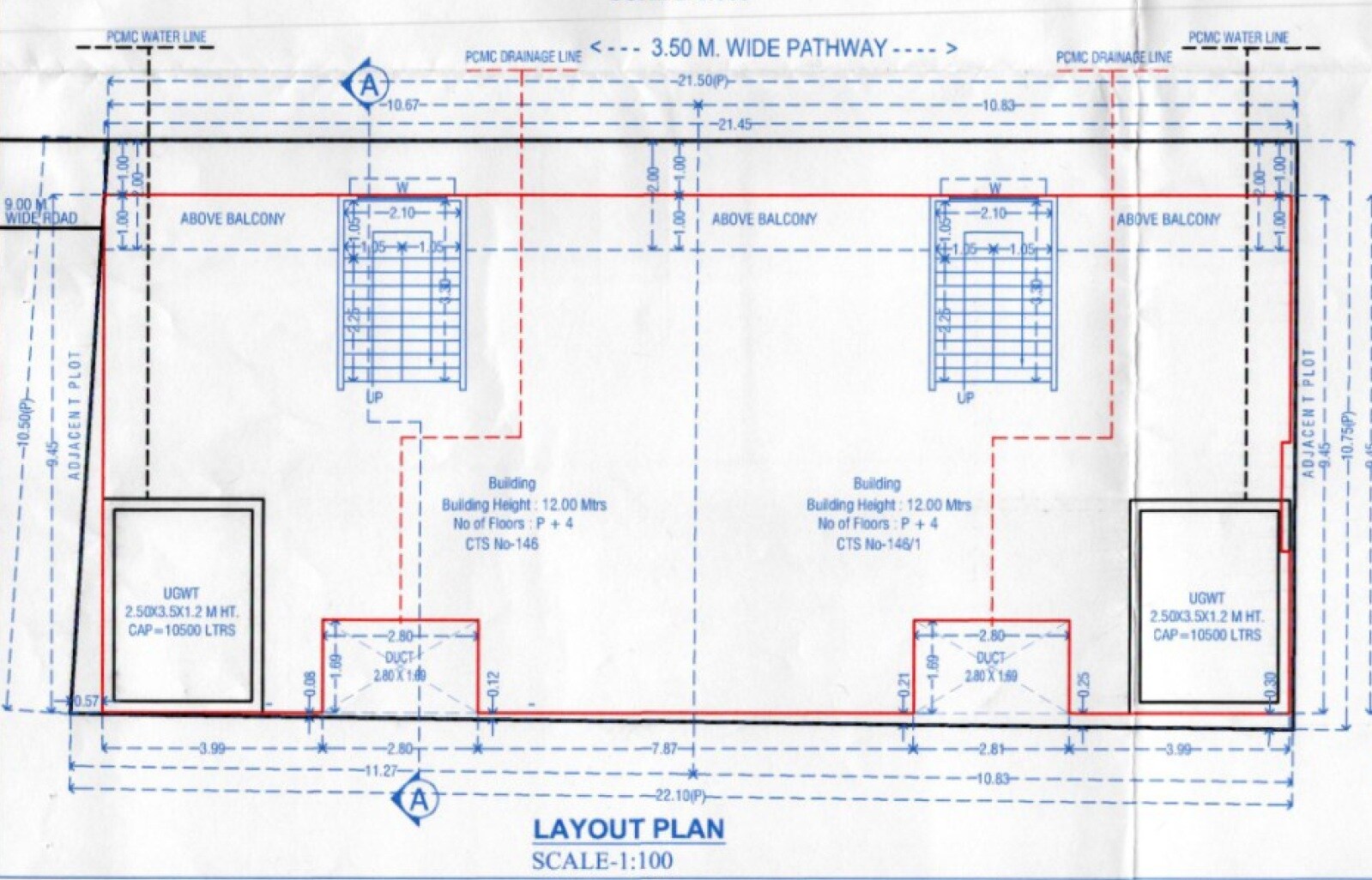

The master plan primarily shows two residential buildings with their respective utility placements. The property is bounded by a 9.00 M wide road, a 3.50 M wide pathway, and adjacent plots.

• The property fronts a 9.00-meter-wide road along its western boundary.
• A 3.50-meter-wide pathway runs along the northern side, providing access to both buildings.
• PCMC Water and PCMC Drainage lines are present along this 3.50 M wide northern pathway.
• Each building incorporates internal stairs, marked 'UP,' for vertical access to the various floors.

• Each building is equipped with an Underground Water Tank (UGWT) measuring 2.50 X 3.5 X 1.2 meters in height.
• Both UGWTs provide a substantial capacity of 10500 Liters for water storage.
• Utility ducts are integrated into the design of each building; one measures 2.80 X 1.49 and the other 2.80 X 1.69.
• Balconies are indicated for the residential units, positioned above the ground level.

• Both buildings reach a maximum height of 12.00 meters, structured as a Podium plus four floors (P+4).
• The property is served by a 9.00-meter-wide road on the west and a 3.50-meter-wide pathway on the north.
• The overall frontage along the northern pathway is indicated to be approximately 22.10 meters.
• The internal staircases within each building have a width of 1.05 meters.
