Jangid Saryu Apartment Mira Road, Thane

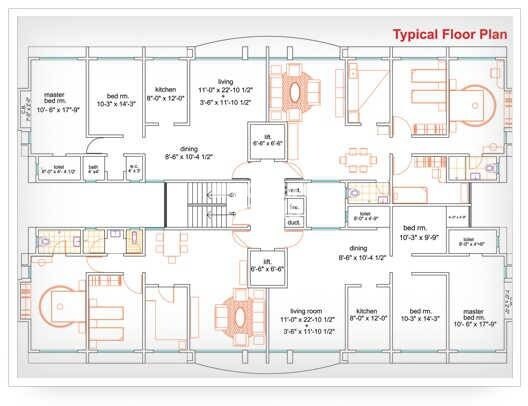

This master plan details a residential floor layout. Each unit is designed for living, featuring dedicated spaces for bedrooms, a living room, a dining area, a kitchen, and bathrooms. No other distinct land uses such as commercial zones, open spaces, or recreational areas are depicted within this floor plan view. Information regarding units per acre is not provided.

• A central core within the building houses both a staircase and an elevator (labeled 'lft'), serving as the primary internal access point for the two residential units on this floor.
• Each unit has its own entry from this central core, leading into the apartment.
• Internal passageways connect the various rooms within each individual apartment.
• No external road networks, primary project access points, or external connectivity features are depicted in this floor-level diagram.

• Each unit includes a dedicated living room and a separate dining area for entertaining and meals.
• Functional kitchens are provided within each apartment, equipped for daily use.
• Multiple bedrooms are available in each unit, including a master bedroom for enhanced privacy.
• Each unit contains both a separate bath and a water closet (W.C.).

• The master bedroom measures 10'-6' x 17'-0'.
• The living room has a main area of 11'-0' x 22'-10 1/2' (with an additional recess of 3'-6' x 11'-10 1/2').
• The kitchen measures 8'-0' x 12'-0'.
• The dining area is 8'-6' x 10'-4 1/2'.
