Pyramid Imperial Estate Sector 70A, Gurgaon

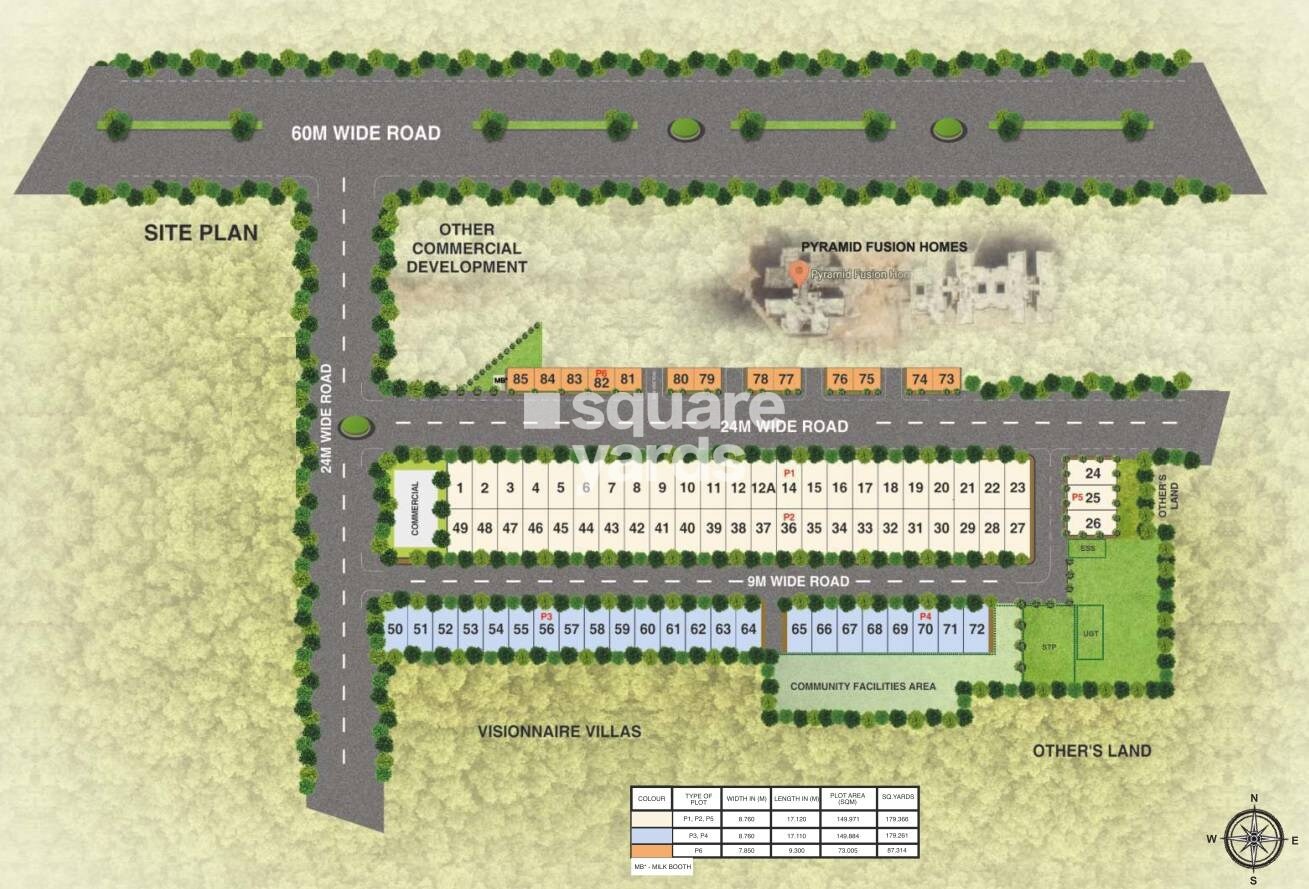

The project integrates different land uses including designated residential plot areas, 'Pyramid Fusion Homes,' and 'Visionnaire Villas.' There's an area allocated for 'Other Commercial Development' and a dedicated 'Community Facilities Area.' Essential services like an Electrical Substation (ESS), an Underground Tank (UGT), and a Sewage Treatment Plant (STP) are also part of the plan. Adjacent to the site, there's 'Other's Land,' indicating future development or existing properties.

• The master plan features a prominent 60M Wide Road forming the northern boundary, providing primary access to the development.
• A 24M Wide Road serves as a major internal spine, connecting different parts of the project, including the 'Pyramid Fusion Homes' area and the main residential plot sections.
• A 9M Wide Road provides internal connectivity to a cluster of residential plots and the 'Community Facilities Area.'
• The project benefits from external connectivity to Sohna Road (2.0 km away) and the Southern Peripheral Road (1.0 km away).

• The plan includes a dedicated 'Community Facilities Area' designed for shared resident use.
• Essential utilities like an Electrical Substation (ESS), an Underground Tank (UGT), and a Sewage Treatment Plant (STP) are strategically placed within the development.
• A 'Milk Booth' (MB) is shown near plot 85, providing a convenience point for residents.
• A 'C COMMERCIAL' area is also designated, indicating provision for commercial activities within the development.

• Residential plots of type P1, P2, P5 measure 8.760 meters in width and 17.120 meters in length, totaling 149.971 sq. meters (or 179.366 sq. yards).
• Plots classified as P3 and P4 have a width of 8.760 meters and a length of 17.110 meters, covering an area of 149.884 sq. meters (or 179.251 sq. yards).
• Smaller plots, type P6, are 7.850 meters wide and 9.300 meters long, with an area of 73.005 sq. meters (or 87.314 sq. yards).
• The project incorporates major road infrastructure with widths of 60 meters, 24 meters, and 9 meters.
