Infinity Siddhivinayak CHS Goregaon West, Mumbai

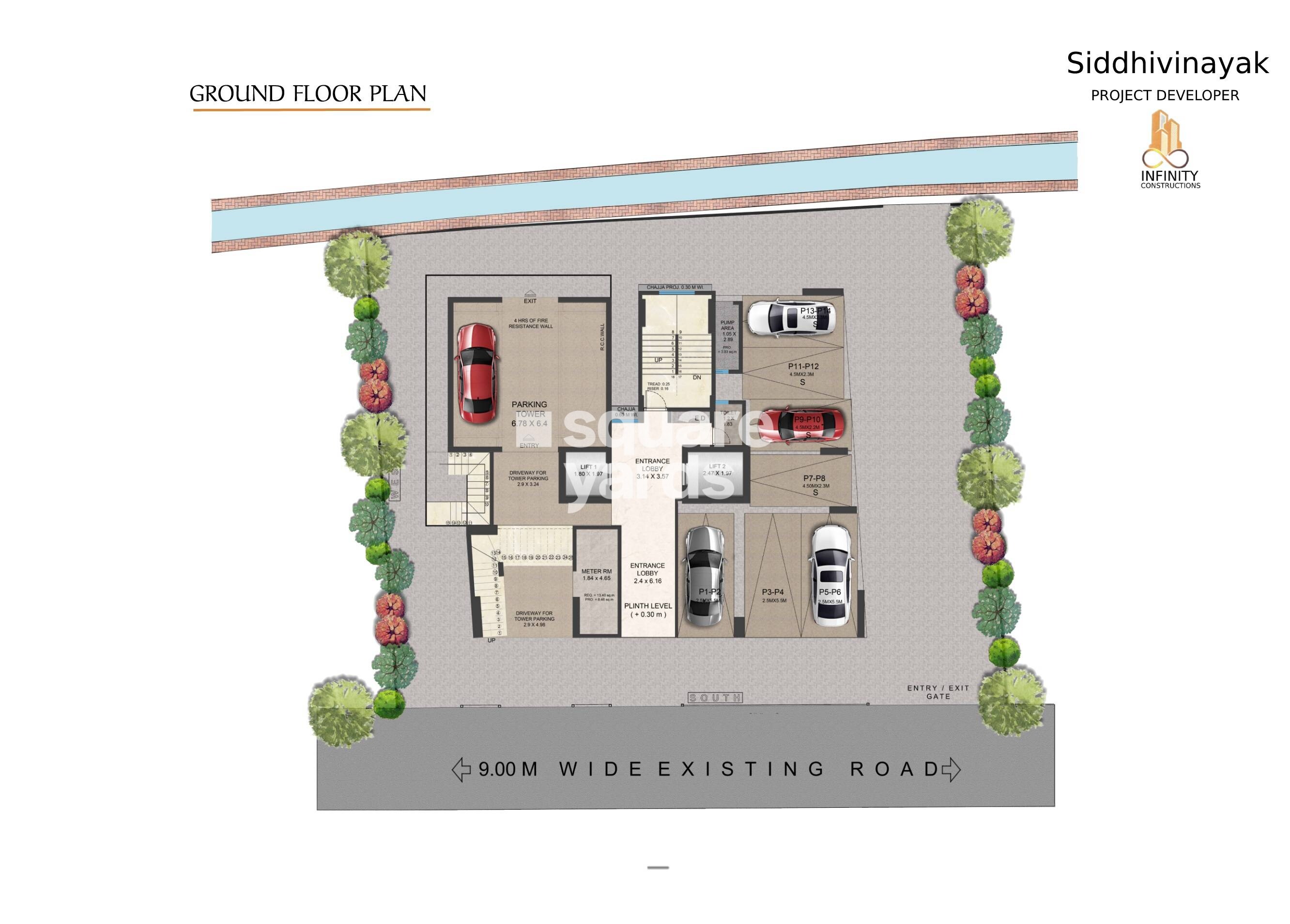

The master plan primarily designates space for vehicle parking and building services, with significant areas for landscaping and access. The ground floor specifically focuses on covered parking for residents and essential utility rooms. While a total unit count isn't specified, the layout indicates ample parking provisions for multiple residential units within the associated tower.

• The property has a direct entry/exit gate to a 9.00 M wide existing road on the south side.
• Dedicated driveways are provided for tower parking, with dimensions including 2.9 M X 3.24 M and 2.9 M X 4.96 M.
• Internal entry and exit points for the main tower parking area are clearly marked.

• Extensive parking is available, including a dedicated parking tower (6.78 M X 6.4 M) and multiple individual parking spots (P1-P14), with varying dimensions like 2.5 M X 5.5 M and 4.5 M X 2.3 M.
• Two entrance lobbies are present, measuring 3.14 M X 3.57 M and 2.4 M X 6.16 M, providing access to the two lifts.
• Essential services include a meter room (1.84 M X 4.65 M) and a pump area (1.05 M X 2.89 M).
• The plan integrates green spaces with trees and shrubs along the external road and surrounding the structure, enhancing the aesthetic appeal.

• The existing road fronting the property is 9.00 M wide.
• The plinth level of the structure is set at +0.30 M.
• The project includes two lifts: Lift 1 at 1.80 M X 1.97 M and Lift 2 at 2.47 M X 1.97 M.
• A 4-hour fire resistance wall is indicated for the tower parking area, ensuring safety.
