AK Silver Crest Nerul Sector 19A, Navi Mumbai

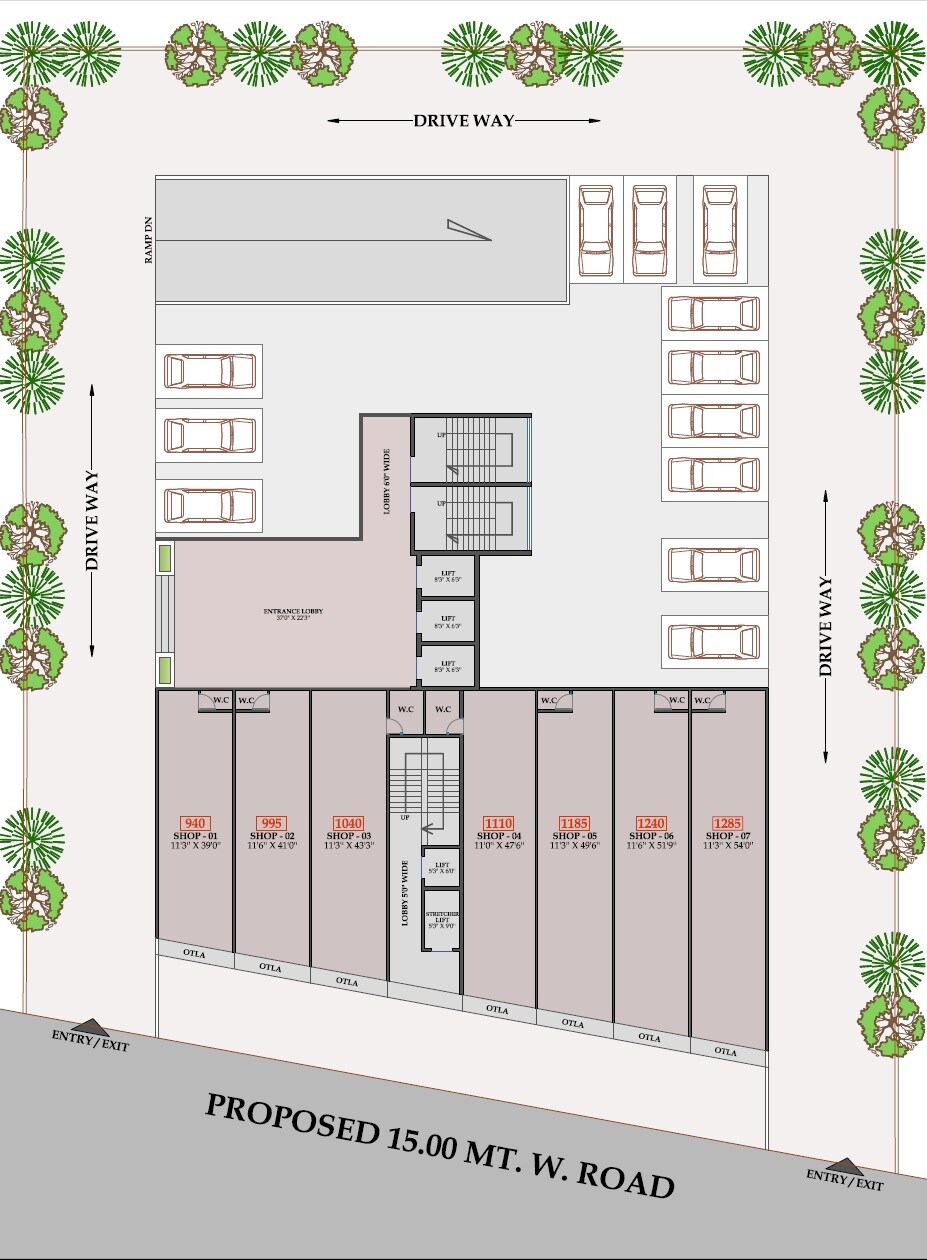

This plan primarily shows a commercial layout on the ground floor with seven distinct retail shops, complemented by extensive surface parking on both sides of the central structure. There is also a 'RAMP DN' indicating access to a lower parking level. The plan focuses on commercial activity and vehicular accommodation, without visible residential units or designated open park spaces on this specific level.

• The property benefits from direct access via a 'PROPOSED 15.00 MT. W. ROAD'.
• There are two main 'ENTRY/EXIT' points from this proposed road, situated at the lower-left and lower-right corners of the plot.
• Internal 'DRIVE WAY' sections are established along the left, right, and top perimeters, providing clear circulation to the parking areas.
• A 'RAMP DN' indicates vehicular access to a lower level, likely an additional parking area.
• The project is conveniently located in Nerul Sector 19A, with Uran Road just 0.1 km away and the Sion Panvel Highway at a distance of 0.2 km.

• Seven commercial shops, identified as 'SHOP-01' through 'SHOP-07', are available on this floor.
• Extensive parking is provided around the central building, with spaces clearly delineated.
• The building features multiple lifts, including a dedicated 'STRETCHER LIFT', for vertical movement.
• Common washroom facilities (W.C) are strategically placed for convenience.
• Each shop is fronted by an 'OTLA', which is a raised platform or verandah.

• The property abuts a 'PROPOSED 15.00 MT. W. ROAD'.
• The main 'ENTRANCE LOBBY' measures 37'0' X 22'3'.
• Internal lobbies are specified with widths of '6'0' WIDE' and '5'0' WIDE'.
• Lifts are sized at '8'3' X 6'3'', with the 'STRETCHER LIFT' measuring '8'3' X 9'0'.
• Shop dimensions vary; for instance, 'SHOP-01' is 11'3' X 39'0', 'SHOP-04' is 11'0' X 47'6', and 'SHOP-07' is 11'3' X 54'0'.
