Newry Astor Paruthipattu, Chennai

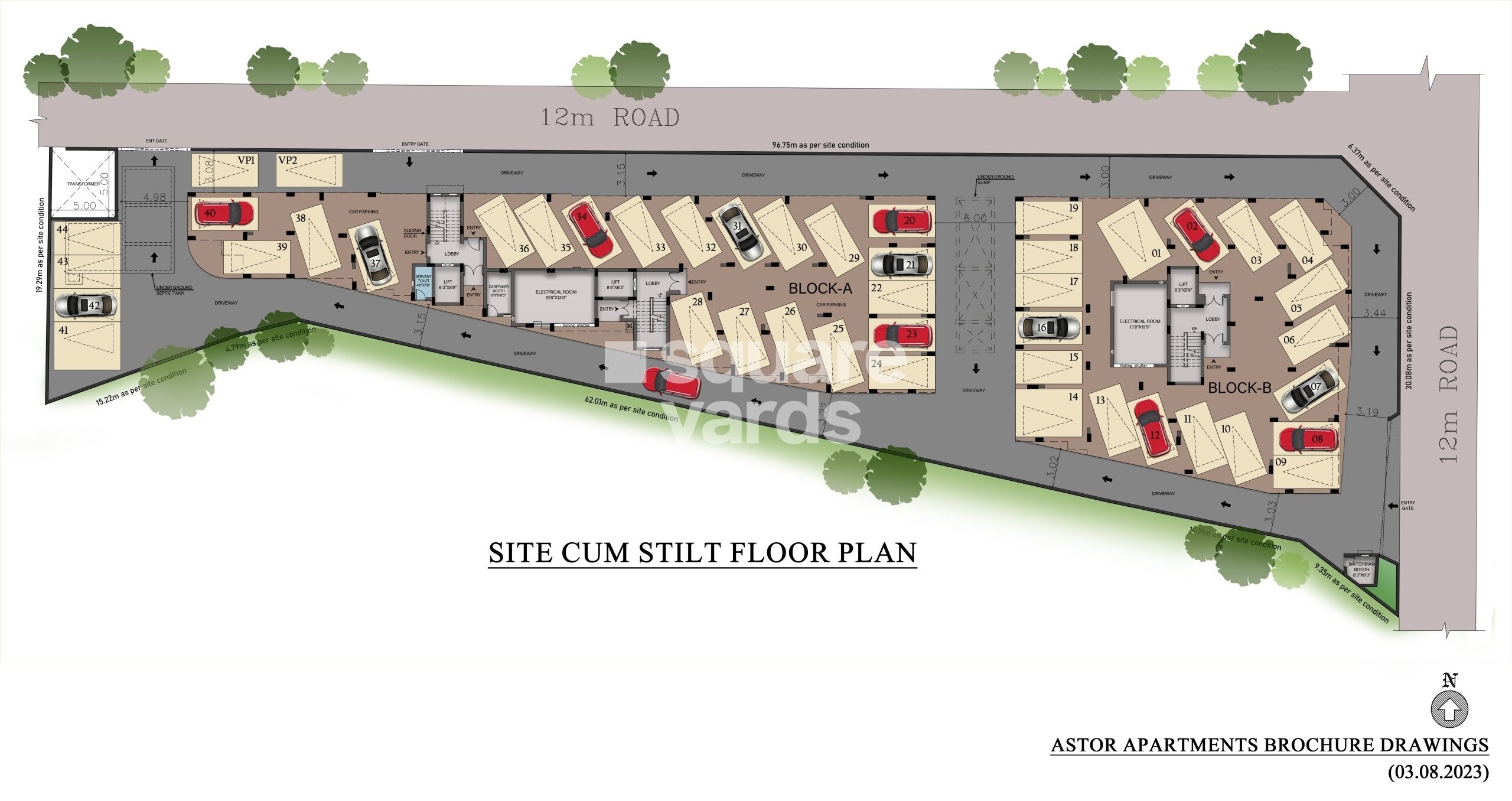

This plan primarily allocates space for residential apartments with integrated stilt parking, complemented by essential utility areas such as electrical rooms, an underground sump, and an underground septic tank.

• The property benefits from frontage along a 12m road on its northern side and another 12m road on its eastern side.
• Primary site access points include an Entry Gate with a sliding door on the western side, a second Entry Gate positioned near the Watchman Booth on the eastern side, and a dedicated Exit Gate in the northwestern corner.
• An internal driveway network is established to facilitate smooth vehicular movement throughout the stilt floor, connecting to all 44 parking spaces.

• Stilt parking is provided for 44 vehicles.
• Block-A is equipped with two lifts (one 6'3'X8'9' and one 8'9'X6'3'), while Block-B includes one lift (6'3'X8'9').
• Utility provisions comprise an underground septic tank, an underground sump, and three electrical rooms (one underground, one 19'9'X13'0' in Block-A, and one 13'0'X19'9' in Block-B).
• Additional facilities include a Watchman Booth (8'3'X9'3') and a Servant Toilet (4'0'X7'5').

• The site is bordered by two 12m wide roads, enhancing its accessibility.
• Key site dimensions include lengths of 96.75m and 62.01m as per site conditions.
• A total of 44 stilt parking spaces are clearly demarcated within the plan.
• The main Electrical Rooms in Block-A and Block-B are sized approximately 19'9'X13'0' and 13'0'X19'9' respectively.
