Realtech Astha New Town, Kolkata

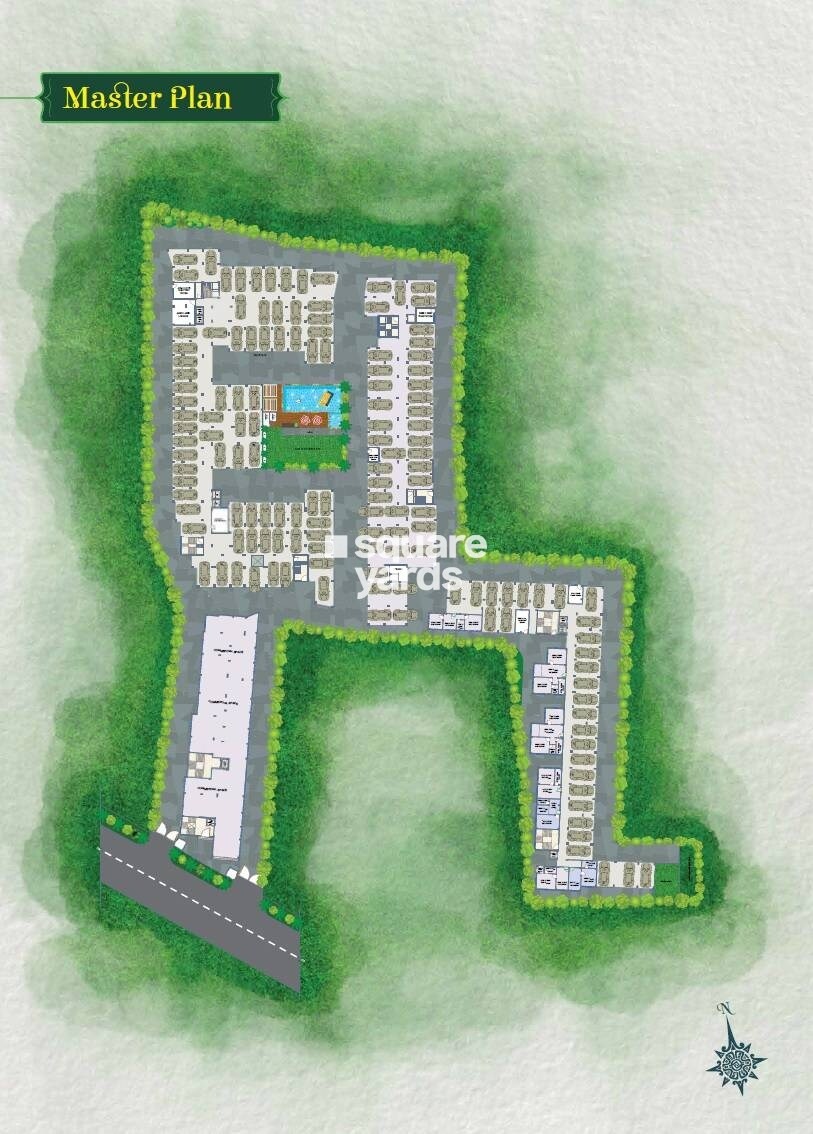

The property primarily consists of multiple residential blocks, each likely containing multiple units, arranged around a central amenity space and internal roads. There's a significant amount of green space allocated around the perimeter of the property and within the central amenity area. A large, distinct building block is visible in the lower-left quadrant, separate from the main residential clusters, though its specific function isn't labeled.

• The property has one primary access point from an external road located at its lower-left corner.
• An internal road network forms a continuous loop, providing access to all residential blocks and amenities within the L-shaped layout.
• The internal roads facilitate direct access to parking areas integrated alongside the residential buildings.

• A central amenity zone in the upper-left quadrant clearly features a swimming pool.
• Adjacent to the swimming pool, there is a designated green lawn or open play area.
• The entire property perimeter is bordered by extensive green landscaping, creating a natural buffer.
• Numerous parking spaces are integrated along the internal road networks and directly accessible from the residential blocks.

• The overall property layout forms a distinct L-shape.
• The internal road system is designed as a loop, ensuring connectivity to all sections of the development.
• The master plan includes a compass rose in the lower-right corner, indicating North.
• No specific numerical dimensions for roads, buildings, or amenity areas are explicitly labeled on this master plan.
