Kothari K D Hermitage Mira Road, Thane

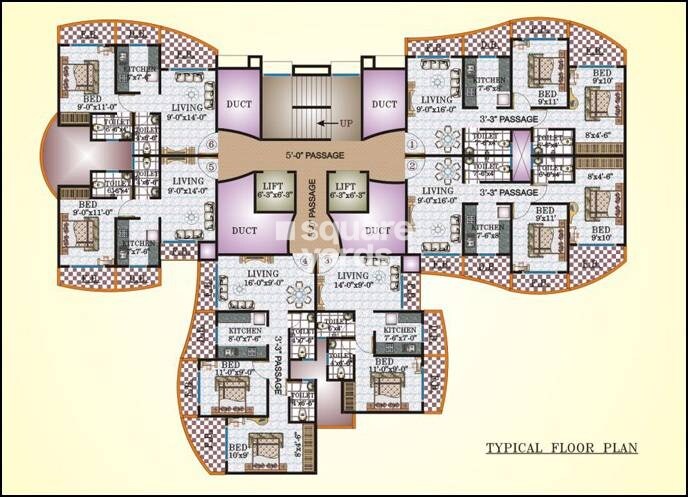

This master plan specifically illustrates a typical residential floor layout. It details various apartment configurations, but does not indicate any other land uses such as commercial zones, open spaces, or provide figures for density like units per acre.

• Internally, the floor features passages with visible widths of 5'-0' and 3'-3', which provide access to the individual residential units.
• The building is equipped with a central core housing two lifts and a staircase, providing vertical transportation.
• For external connectivity, the project is situated near Mira Road, which is approximately 0.45 km away, and has access to the Western Express Highway, about 3.5 km away.

• Each residential unit on this typical floor plan includes a functional layout comprising a living area, a kitchen, one or more bedrooms, and dedicated toilet spaces.
• Common facilities for residents on this floor include the central passage network for circulation and two lifts, along with stair access for vertical movement within the building.
• Specific common on-site amenities such as a clubhouse, parks, or sports courts are not detailed on this typical floor plan.

• This typical floor plan showcases eight distinct residential units per floor, four on each side of the central core.
• The primary passages within the floor are dimensioned at 5'-0' and 3'-3' in width.
• There are two lifts available, one measuring 6'-3' x 6'-3' and the other 6'-3' x 6'-8'.
• Living areas vary, with sizes including 9'-0'x14'-0', 9'-0'x16'-0', 16'-0'x9'-0', and 14'-0'x9'-0'.
• Bedrooms are generally sized between 9'-0'x11'-0' and 11'-0'x9'-0'.
• Kitchens range in size from 7'-6'x7'-0' to 8'-0'x7'-6'.
