Alliaance The View Sector 9 Ghansoli, Navi Mumbai

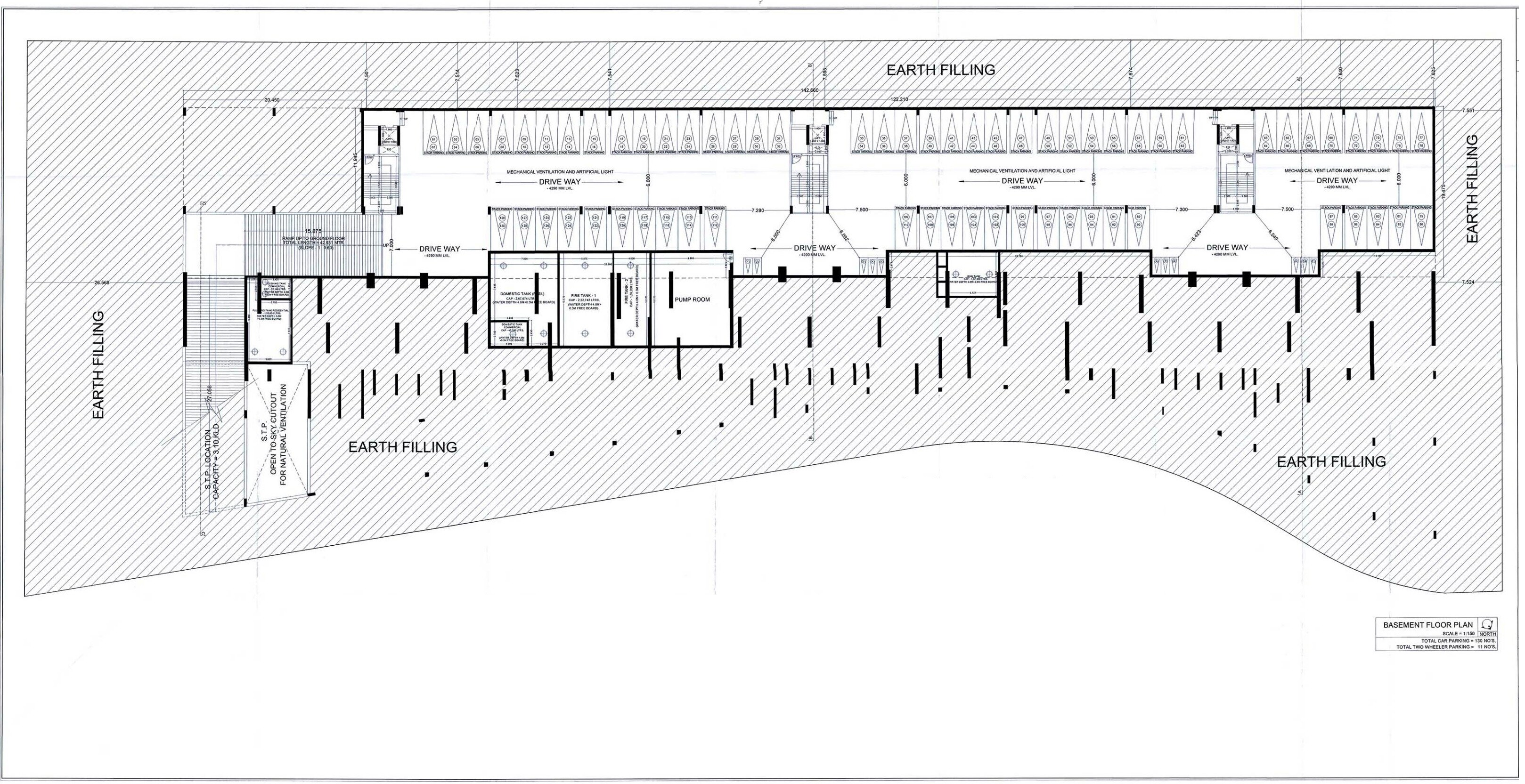

The primary visible land use in this plan is a basement floor dedicated to parking, surrounded by earth filling, suggesting an underground or partially submerged structure beneath other facilities not detailed here.

• The basement features a clear internal 'DRIVE WAY' network for vehicle movement.
• Access to the ground floor is provided by a 'RAMP UP TO GROUND FLOOR'.
• The project is connected externally via Palm Beach Marg (3.5 km) and Thane Belapur Road (1.5 km).

• The basement incorporates 'STACK PARKING' systems to maximize vehicle capacity.
• Essential utilities include a 'DOMESTIC TANK' with a capacity of 2,52,742 liters and a dedicated 'FIRE TANK', both served by a 'PUMP ROOM'.
• A 'Sewage Treatment Plant (S.T.P.) LOCATION' is present with a capacity of 3.10 KLD, featuring an 'OPEN TO SKY CUTOUT FOR NATURAL VENTILATION'.
• The driveways within the basement are equipped with 'MECHANICAL VENTILATION AND ARTIFICIAL LIGHT' to ensure proper air quality and visibility.

• The project offers a total of 130 car parking spaces and 11 two-wheeler parking spaces.
• The ramp leading up to the ground floor has a total length of 42.931 meters with a slope of 1:9.63.
• The domestic tank is designed with a water depth of 4.0 meters and a 0.3-meter free board.
