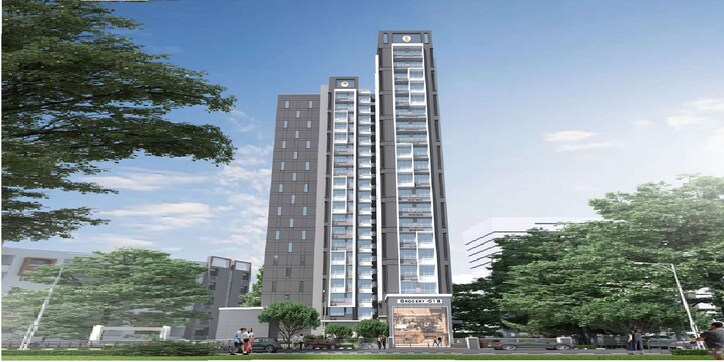

Guinea HK Residency Bhandup West, Mumbai

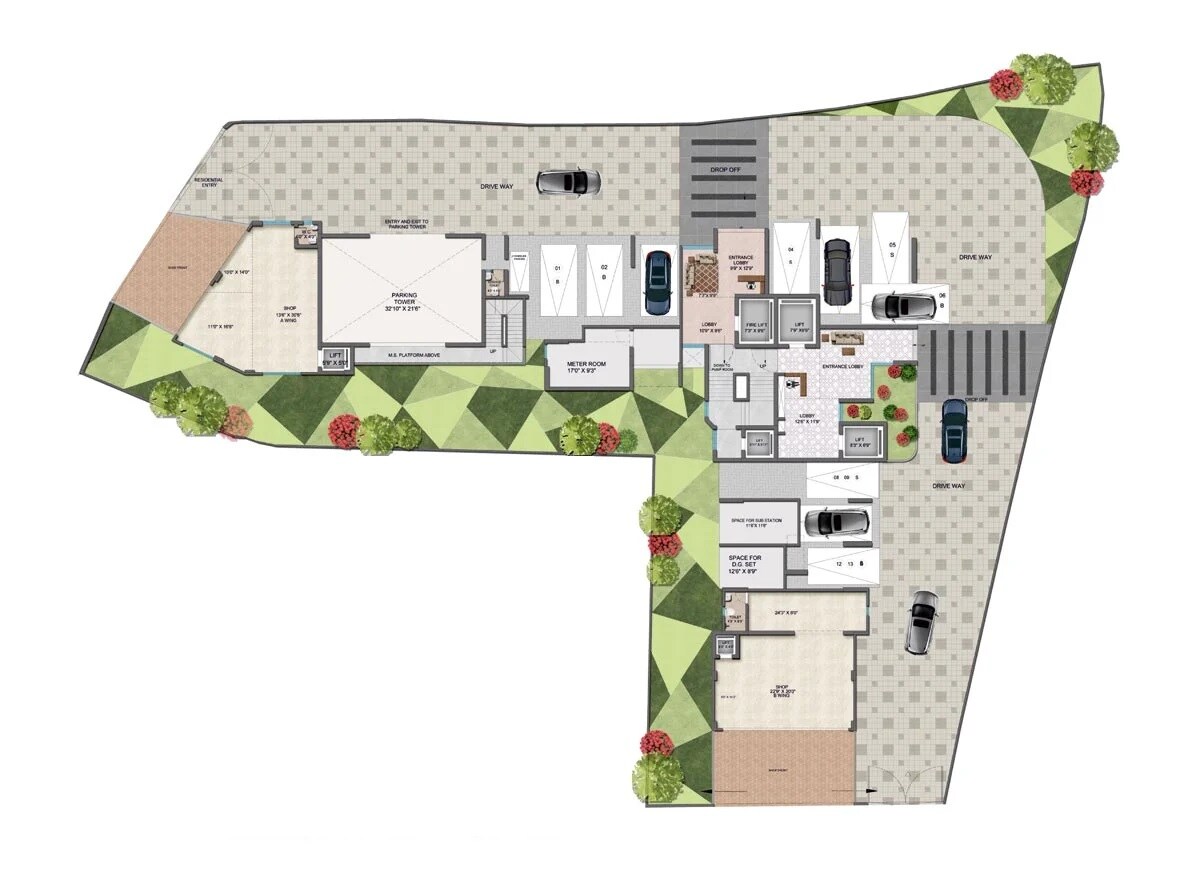

The plan primarily designates space for vehicle parking, driveways, and essential building services. There are clearly defined zones for parking areas, including a dedicated parking tower. Landscaped garden areas are interspersed around the perimeter of the structure. Specific allocations or percentages for residential, commercial, or open spaces are not indicated, nor is the number of units per acre. The plan highlights ground-level common areas and utilities.

• The property features multiple entry and exit points, including a dedicated 'RESIDENTIAL ENTRY' and several 'DRIVE WAY' accesses.
• A 'DROP OFF' zone is provided for convenient passenger loading and unloading at the main entrance.
• Internal driveways facilitate vehicle movement throughout the ground floor, connecting various parking areas and service zones.
• The project benefits from external connectivity via Eastern Express Highway, located 4.5 km away, and LBS Marg, which is 1.0 km away.

• A multi-story 'PARKING TOWER' with dimensions of 32'0 X 21'6 is included, serviced by a lift.
• Dedicated 'LOBBY' and 'ENTRANCE LOBBY' areas provide access to the building's core, equipped with multiple lifts, including a 'FIRE LIFT'.
• Essential utilities include a 'METER ROOM' (17'0 X 9'3), an area for a 'SPACE FOR DG SET' (12'0 X 13'0), and a 'SPACE FOR SUB STATION'.
• Two retail 'SHOP' spaces are integrated into the ground floor layout, one measuring 10'0 X 14'0 and another 10'0 X 9'0.

• The main 'PARKING TOWER' measures 32'0 X 21'6, indicating a significant structured parking facility.
• The 'METER ROOM' has dimensions of 17'0 X 9'3, while the 'SPACE FOR DG SET' is 12'0 X 13'0.
• The main 'ENTRANCE LOBBY' is 12'0 X 17'0, and a smaller 'LOBBY' is 10'0 X 14'0.
• The plan shows numerous marked parking spots for vehicles, indicating substantial parking capacity on this level.
