The Royal Kuteera Jigani, Bangalore

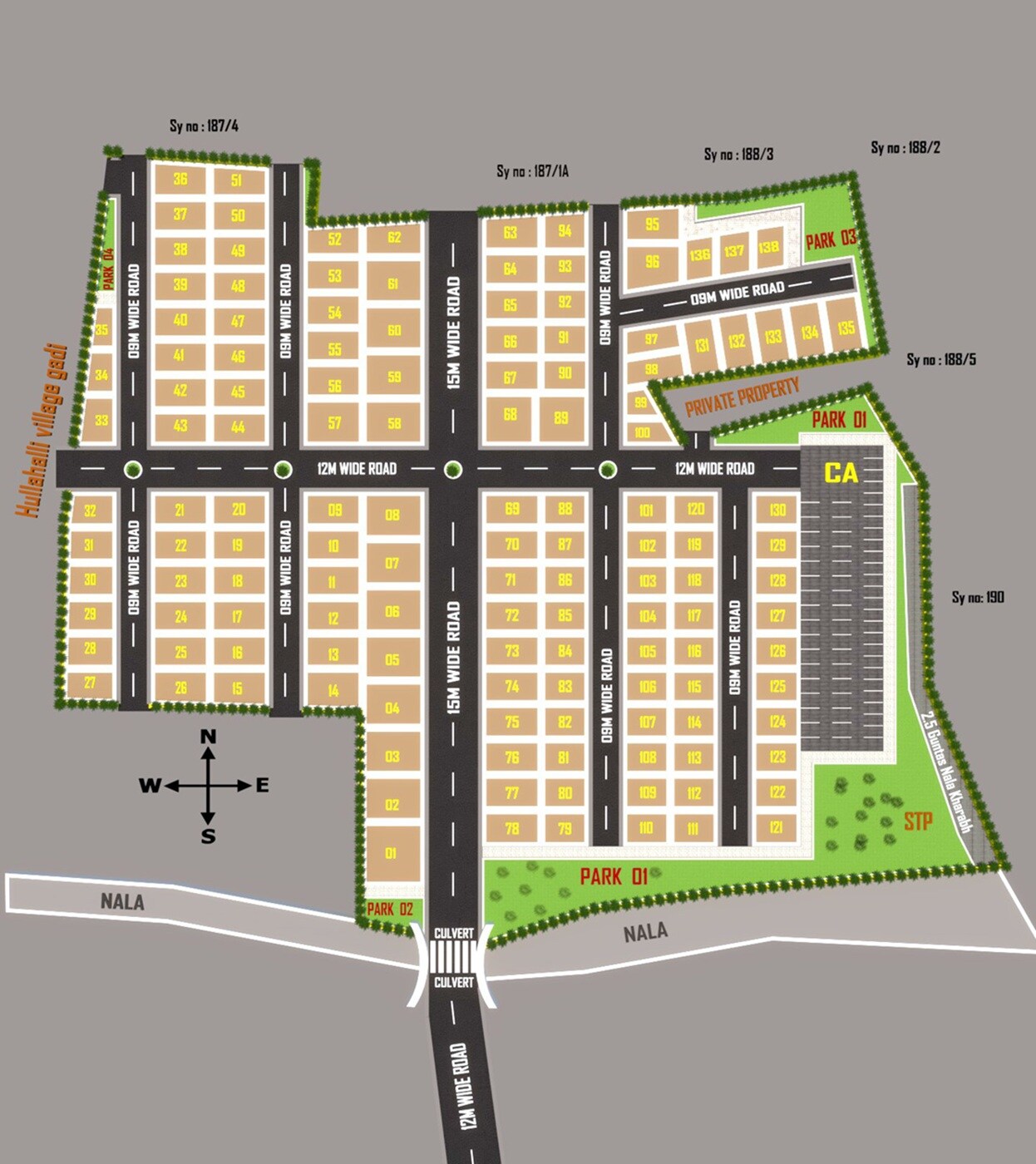

This master plan for The Royal Kuteera in Jigani shows a primary focus on residential plots. It includes designated green spaces with four distinct parks: Park 01, Park 02, Park 03, and Park 04. There's also a Civic Amenity (CA) area and a specific zone for a Sewage Treatment Plant (STP). A parcel is marked as 'PRIVATE PROPERTY' within the layout, and a natural drainage channel, or Nala, traverses the property.

• The property features a well-defined internal road network, including primary 12-meter wide roads, several 9-meter wide roads, and a 15-meter wide road segment.
• Access from the main approach appears to involve a 12-meter wide road crossing over a Nala via culverts.
• The property is situated adjacent to the 'Hullahalli village gadi' and is connected to Bannerghatta Road, which is approximately 2.5 kilometers away.

• Four designated park areas are strategically placed throughout the development: Park 01, Park 02, Park 03, and Park 04.
• A Civic Amenity (CA) zone is included for community use.
• A Sewage Treatment Plant (STP) is located in the lower-right section for environmental management.
• The layout incorporates a natural Nala (drainage channel) with culvert crossings to maintain natural water flow.

• The internal road network primarily consists of 12-meter, 9-meter, and 15-meter wide roads.
• The development comprises a total of 158 residential plots.
• A 'Nala Kharabh' area, specifically 2.5 Guntas, is noted near the STP, indicating land associated with the drainage channel.
• The project is located in Jigani, with connectivity to Bannerghatta Road approximately 2.5 km away.
