NNK Madhu Mani Vilas Shaikpet, Hyderabad

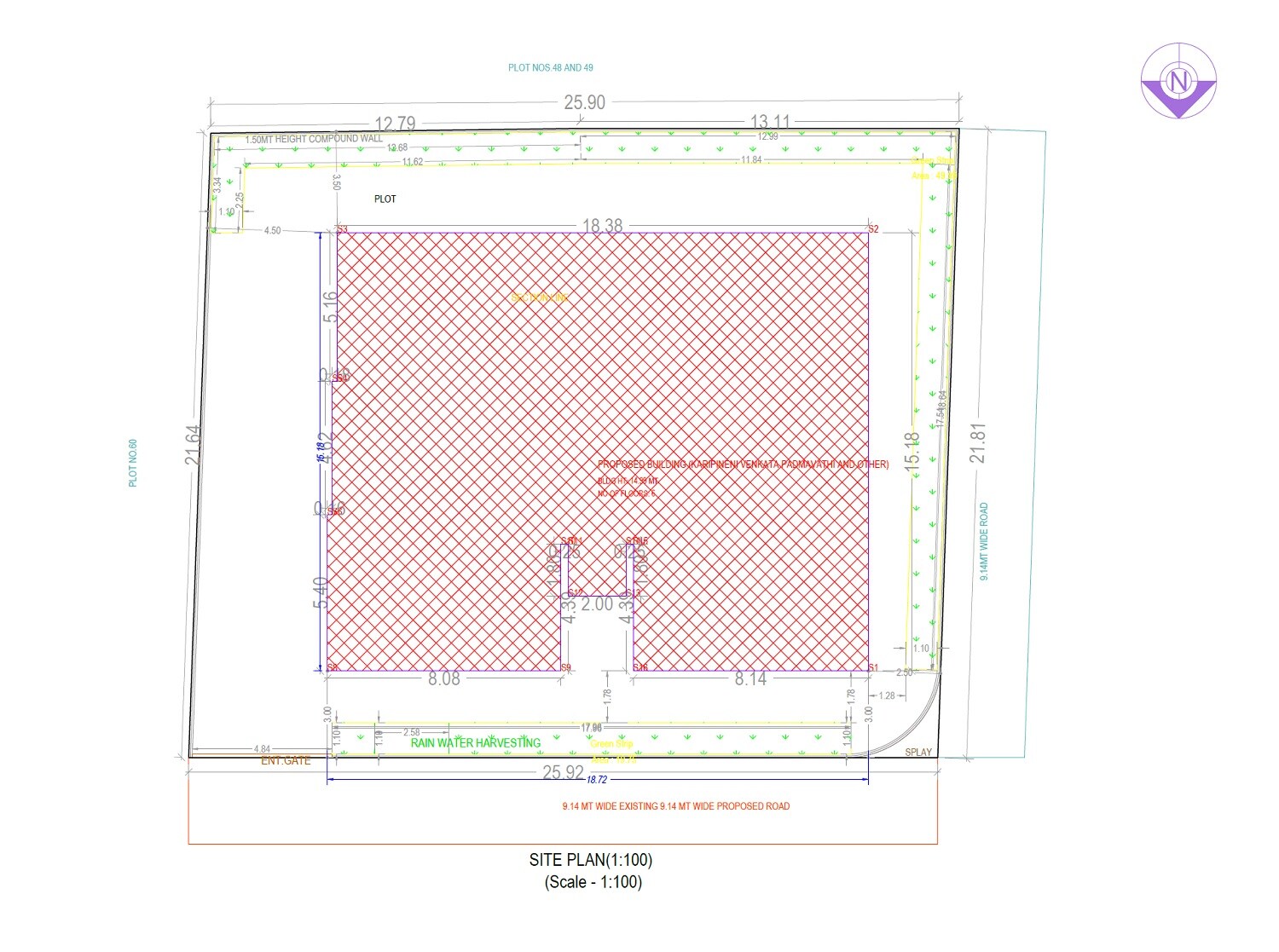

The primary land use on this site is residential, featuring a designated plot with a proposed building. The plan clearly marks the area for the proposed building with a red crosshatch pattern. Additionally, there's a specified area allocated for a rain water harvesting system and a small green strip along the road frontage, indicating a commitment to environmental features within this plot.

• The property has direct access from a 9.14-meter wide road, which is identified as both an existing and proposed road.
• An entrance gate is clearly marked on the plan, providing the main access point to the plot.
• The plot features a splay at one corner, likely to ease vehicular movement from the main road.
• While not depicted on this site plan, the project benefits from proximity to the Old Mumbai Highway (0.5 km) and NH 163 (4.0 km), ensuring good external connectivity.

• The plan prominently features a proposed building, which is the core structure for this site.
• An integrated rain water harvesting system is included, demonstrating sustainable practices.
• A 1.50-meter high compound wall encloses the property, providing security and privacy.

• The plot boasts a frontage of 25.92 meters along the 9.14-meter wide road.
• The proposed building has an approximate width of 18.38 meters and varying depths.
• A dedicated rain water harvesting area measures 8.08 meters by 2.58 meters.
• The site plan is drawn to a scale of 1:100.
