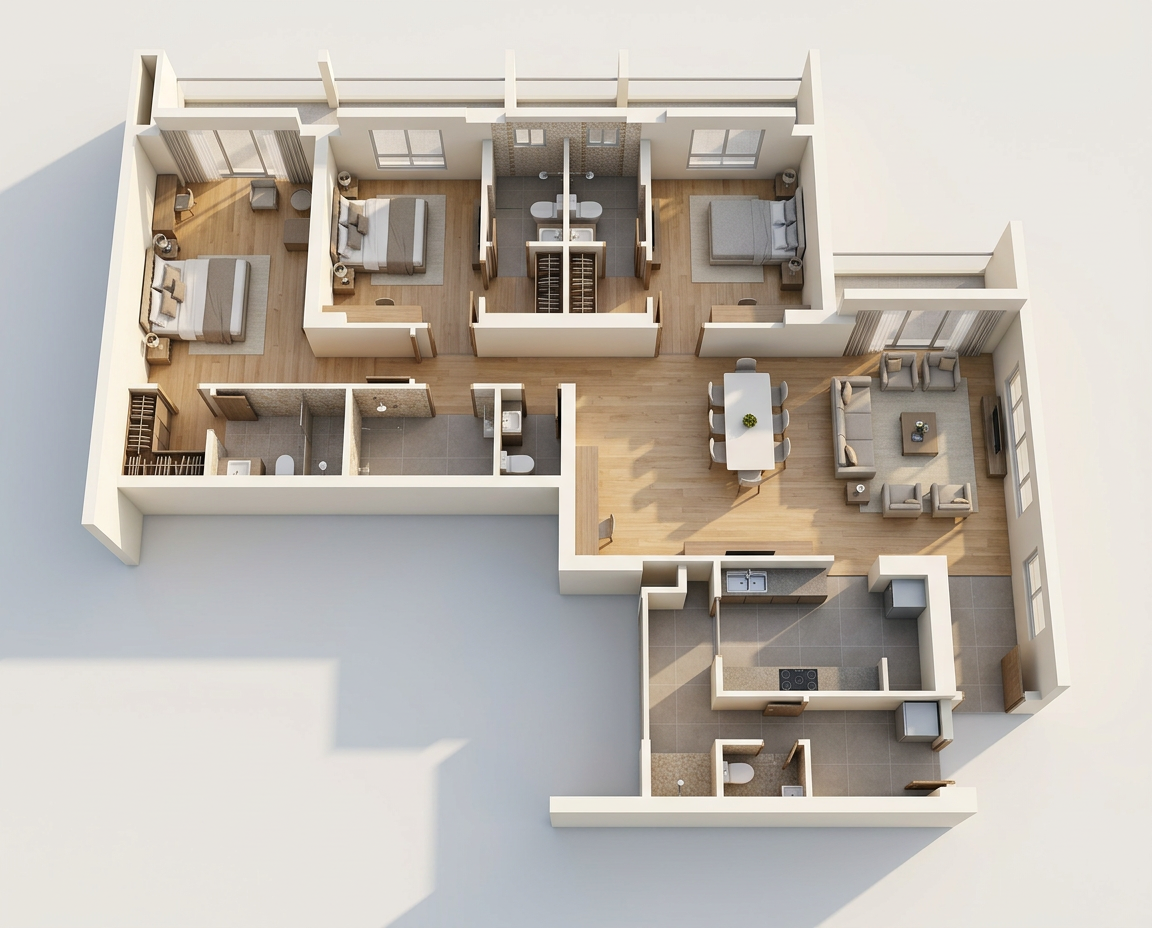

Experion Elements Floor Plans

Walk-In Wardrobe (Master) Walk-in Wardrobe (master)

1720 × 1905 mm 35.27 Sq.Ft

An exclusive dressing area measuring 1720 x 1905 mm providing direct connection to the en-suite master toilet.

Bathroom Toilet (master)

2750 × 1905 mm 56.39 Sq.Ft

Spacious 2750 x 1905 mm master bathroom seamlessly attached to the private walk-in wardrobe.

Foyer (Inner) Foyer (inner)

2220 × 1200 mm 28.68 Sq.Ft

A 2220 x 1200 mm transitional space offering enhanced acoustic and visual privacy for the master bedroom suite.

Bedroom Bed Room - 1

3350 × 4320 mm 155.78 Sq.Ft

Features private access to a 1500mm wide balcony and measures a substantial 3350 x 4320 mm.

Bedroom Walk-in Wardrobe (bed Room - 1)

1675 × 1520 mm 27.4 Sq.Ft

Dedicated wardrobe space measuring 1675 x 1520 mm with a symmetrical layout leading to the en-suite toilet.

Bedroom Toilet (bed Room - 1)

1675 × 2450 mm 44.17 Sq.Ft

En-suite bathroom measuring 1675 x 2450 mm positioned adjacent to the bedroom's private walk-in wardrobe.

Passage (Central) Passage (central)

3425 × 1200 mm 44.24 Sq.Ft

Measures 3425 x 1200 mm, acting as a buffer corridor separating the active living areas from the quiet bedroom suites.

Bedroom Walk-in Wardrobe (bed Room - 2)

1675 × 1520 mm 27.4 Sq.Ft

An attached 1675 x 1520 mm dressing zone designed symmetrically to maximize bedroom storage space.

Bedroom Toilet (bed Room - 2)

1675 × 2450 mm 44.17 Sq.Ft

Full-size 1675 x 2450 mm en-suite toilet cleanly integrated with the Walk-In Wardrobe of Bedroom 2.

Bedroom Bed Room - 2

3350 × 4320 mm 155.78 Sq.Ft

Measures 3350 x 4320 mm with direct access to its own private 1500mm wide balcony and en-suite amenities.

Living Room Living / Dining / Study

9200 × 4875 mm 482.76 Sq.Ft

An expansive L-shaped continuous space measuring 9200 x 4875 mm, opening onto an 1800mm wide balcony.

Foyer (Entry) Foyer (entry)

1500 × 2800 mm 45.21 Sq.Ft

A welcoming 1500 x 2800 mm entrance lobby ensuring a private, shielded arrival into the main living areas.

Storage Store

940 × 2400 mm 24.28 Sq.Ft

A highly functional 940 x 2400 mm storage pantry placed immediately adjacent to the main kitchen.

Kitchen Kitchen

3235 × 2700 mm 94.02 Sq.Ft

A well-proportioned 3235 x 2700 mm layout opening to a dedicated utility balcony and utility passage.

Passage (Service) Passage (service)

1800 × 900 mm 17.44 Sq.Ft

A discreet 1800 x 900 mm service corridor connecting the kitchen, utility room, and service toilet.

Bathroom Toilet (service)

1650 × 1080 mm 19.18 Sq.Ft

A dedicated 1650 x 1080 mm service bathroom positioned next to the utility room for staff or utility use.

Utility Utility Room

2725 × 2060 mm 60.42 Sq.Ft

A 2725 x 2060 mm multi-functional service area with independent access next to the entry foyer.

Powder Room Powder Room

1250 × 1985 mm 26.71 Sq.Ft

A conveniently located 1250 x 1985 mm powder room positioned off the central passage for guests.
