Marvel Isola J building Mohammadwadi, Pune

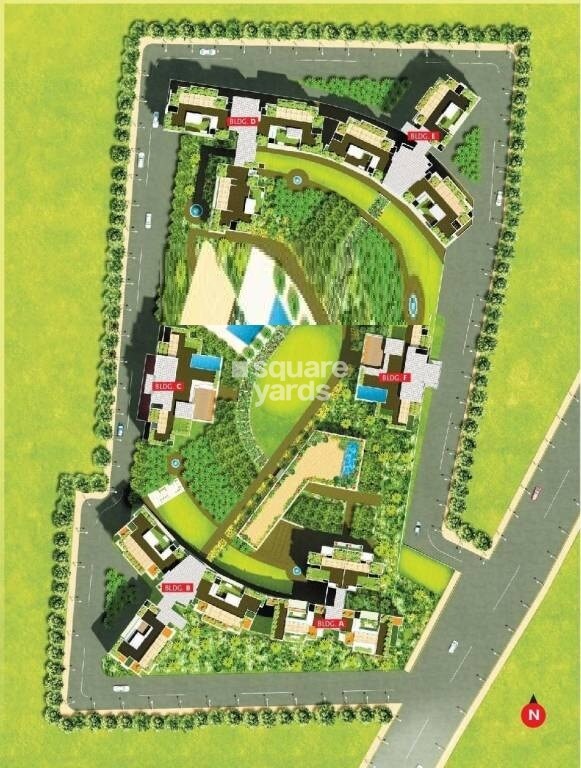

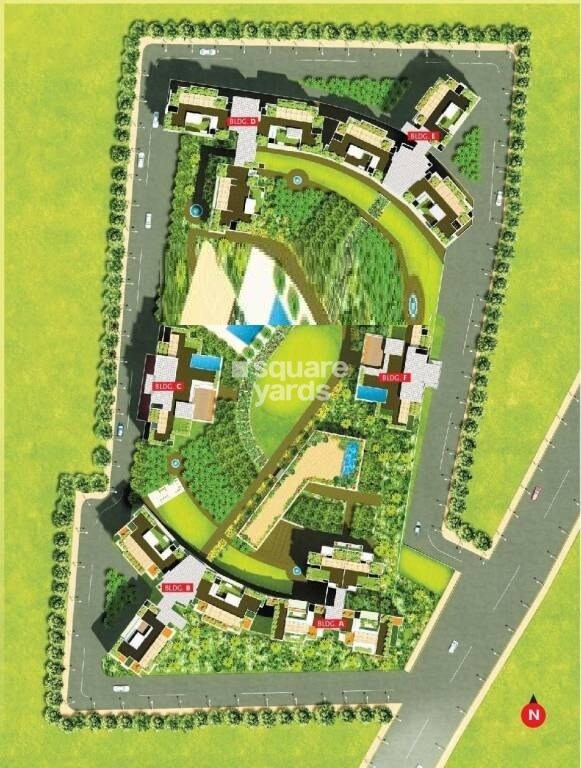

The development is characterized by a significant allocation to open spaces, with a large, centrally located landscaped green area forming the primary focal point. Residential buildings are positioned around this central green expanse, connected by an internal road network. This layout creates distinct zones for living, recreation, and circulation.

• An internal road network provides access to all residential buildings and amenities within the complex.
• The perimeter of the property is bordered by roads, suggesting external connectivity.
• Dedicated parking spaces are visible along the internal roads.
• No specific road widths or primary access point labels are visible.

• Multiple swimming pools are strategically located throughout the property, including areas near BLDG A, BLDG C, and BLDG D.
• A large, central landscaped green area offers extensive open space for residents.
• Designated parking areas are integrated along the internal road network for resident convenience.
• Several smaller water features or decorative elements are visible within the green spaces.

• The master plan clearly identifies six separate residential buildings.
• The North direction is indicated by a compass rose on the plan.
• The layout features a comprehensive internal road system providing circulation throughout the property.
• No specific measurements for land area, building heights, or unit counts per building are provided in this plan.
