Sai Gajanan Residency Dighi, Pune

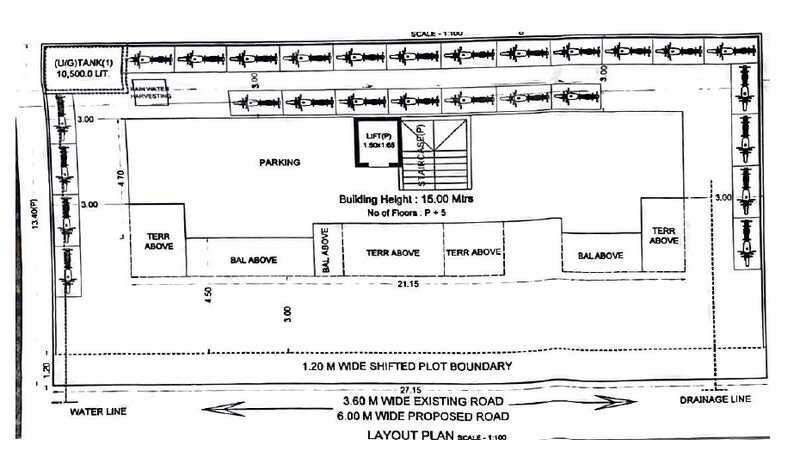

The plan highlights a dedicated parking area at the ground level. We also see indications of 'Terrace Above' and 'Balcony Above' on various sides, which suggests residential usage on the upper floors of the building.

• The property is accessible via a 3.60 meter wide existing road.
• A 6.00 meter wide proposed road borders the property.
• There is a water line clearly marked on the lower-left side of the plot.
• A drainage line runs along the right side of the plot boundary.

• A significant parking area is provided within the property.
• An underground tank (U/G Tank 1) with a capacity of 10,500.0 liters is integrated, featuring rainwater harvesting.
• The building includes a lift with dimensions of 1.50m x 1.65m.
• A staircase is also incorporated into the building's design.

• The building has a total height of 15.00 meters.
• It consists of a ground floor plus five additional floors (P+5).
• The plot includes a 1.20 meter wide shifted plot boundary.
• The overall plot width is 27.15 meters.
