MNB Ananta Vilasa Sector 56, Gurgaon

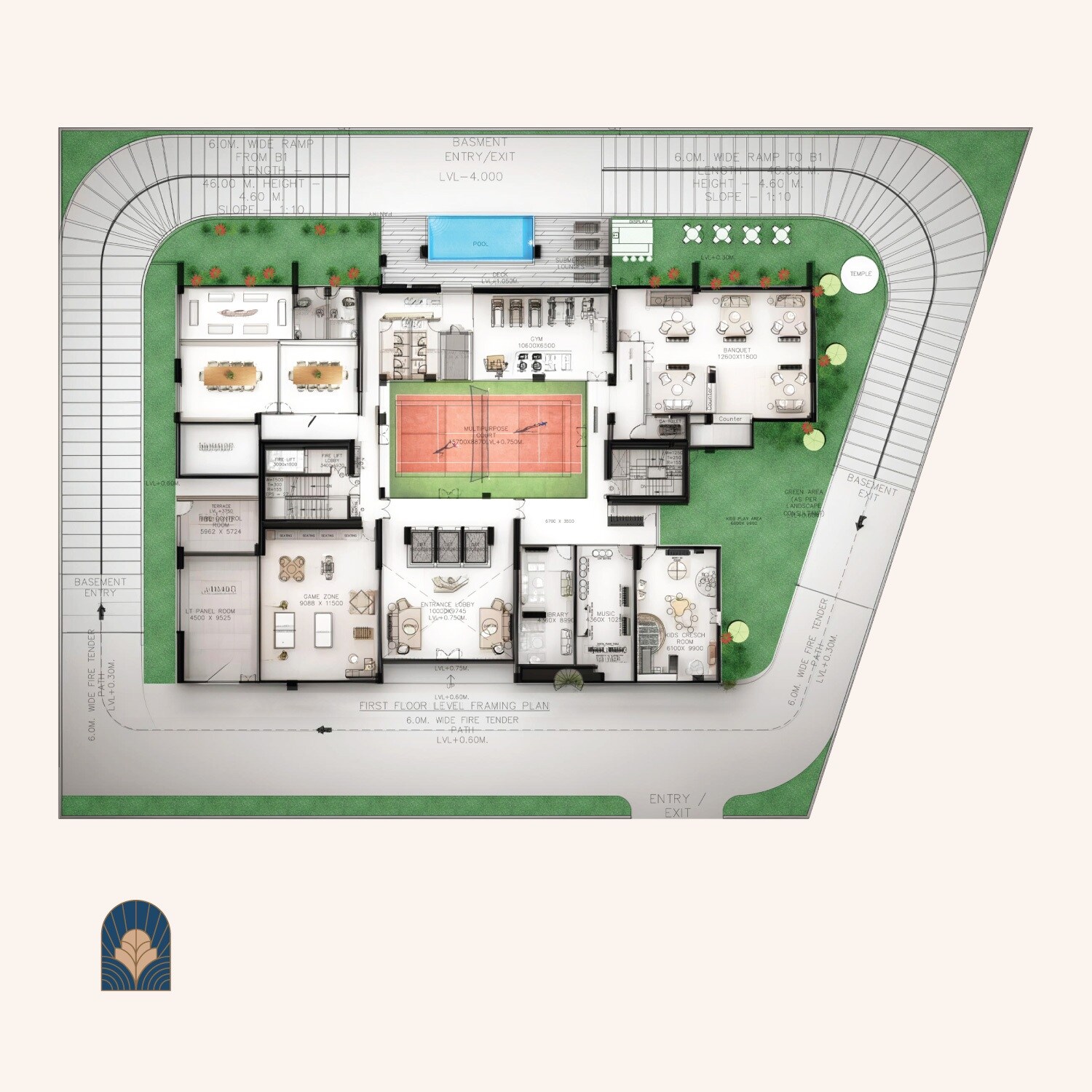

The master plan indicates dedicated spaces for various amenities and green areas. Specific residential or commercial zones are not explicitly labeled, but amenity zones are clearly defined across different levels. A significant 'GREEN AREA' is allocated as per the landscape consultant's plan.

• Two 6.0 meter wide ramps provide access to and from Basement 1, each with a height of 4.60 meters and a 1:10 slope.
• A 6.0 meter wide fire tender path runs along the perimeter at LVL+0.30M and LVL+0.60M.
• Designated 'ENTRY/EXIT' points are available for both vehicular and pedestrian movement.
• The Basement Entry/Exit is positioned at LVL-4.000.

• A dedicated recreational hub includes a MULTIPURPOSE COURT (5.7 x 8.87 meters) at LVL+0.750M, a GYM (10.6 x 6.5 meters), a POOL, and a TERRACE at LVL+0.750.
• Social and entertainment spaces feature a GAME ZONE (9.088 x 11.5 meters), a BANQUET hall (12.6 x 11.8 meters) with a counter, and a TEMPLE.
• Children's facilities comprise a KIDS PLAY AREA (6.6 x 6.9 meters) and a KIDS CRESCH ROOM (6.1 x 9.9 meters).
• Community amenities include an ENTRANCE LOBBY (10.0 x 9.745 meters) at LVL+0.750M, a LIBRARY (6.7 x 8.99 meters), and a MUSIC ROOM (4.36 x 10.25 meters).

• The primary operational levels across the development are set at LVL+0.60M, LVL+0.750M, and LVL+0.30M.
• Basement access is facilitated by two 6.0 meter wide ramps, each rising 4.60 meters with a 1:10 slope, leading to the Basement Entry/Exit at LVL-4.000.
• Emergency access is provided by a 6.0 meter wide fire tender path around the property.
• The First Floor Level Framing Plan is established at LVL+0.60M.
