Smaya Jade Nester Choodasandra, Bangalore

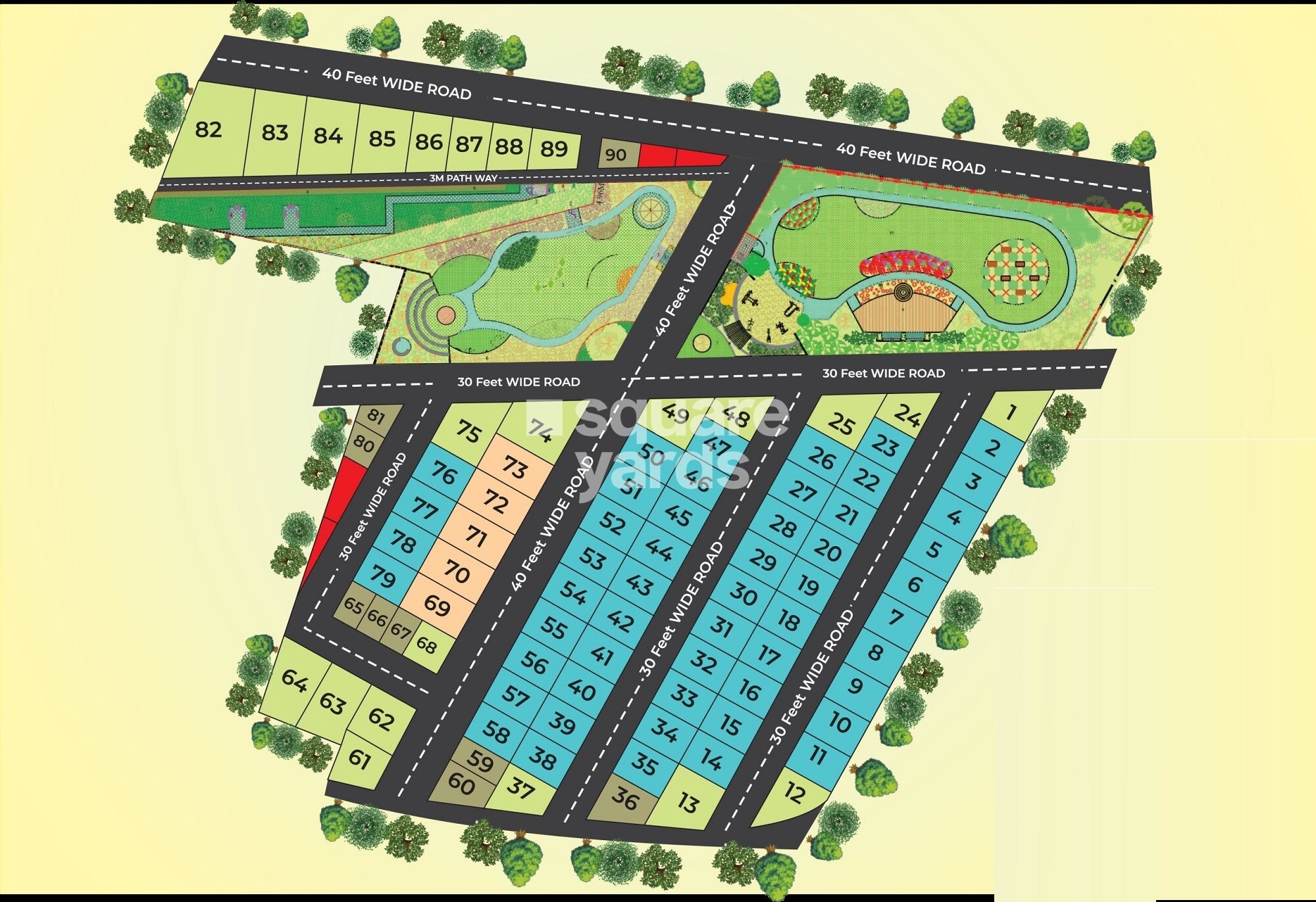

The layout primarily consists of residential plots, numbered sequentially from 1 to 90. Large, dedicated green spaces are integrated throughout the plan, functioning as parks.

• The internal road network includes main thoroughfares designated as 40 Feet Wide Roads.
• Supporting internal roads are 30 Feet Wide Roads, providing access to individual plots.
• A 3-meter wide pathway, labeled '3M PATH WAY', is integrated into the green areas, likely for pedestrian use.
• The project is connected to external roads such as Hosa Road (1.5 km), Sarjapur Road (4.0 km), Hosur Road (4.0 km), and the NICE Peripheral Ring Road (5.0 km).

• The plan includes multiple park areas designed with curvilinear pathways for walking or jogging.
• Within these parks, you can see distinct landscaped zones and areas that appear suitable for seating or open-air activities, including circular and semicircular features.
• The green spaces incorporate varied planting, contributing to the aesthetic and environmental quality of the development.

• The primary internal roads are 40 feet wide, with secondary roads measuring 30 feet in width.
• A dedicated pedestrian pathway is 3 meters wide.
• The entire development encompasses 90 residential plots.
