Unique Infrastructure Eastern Breeze Mahadevpura, Bangalore

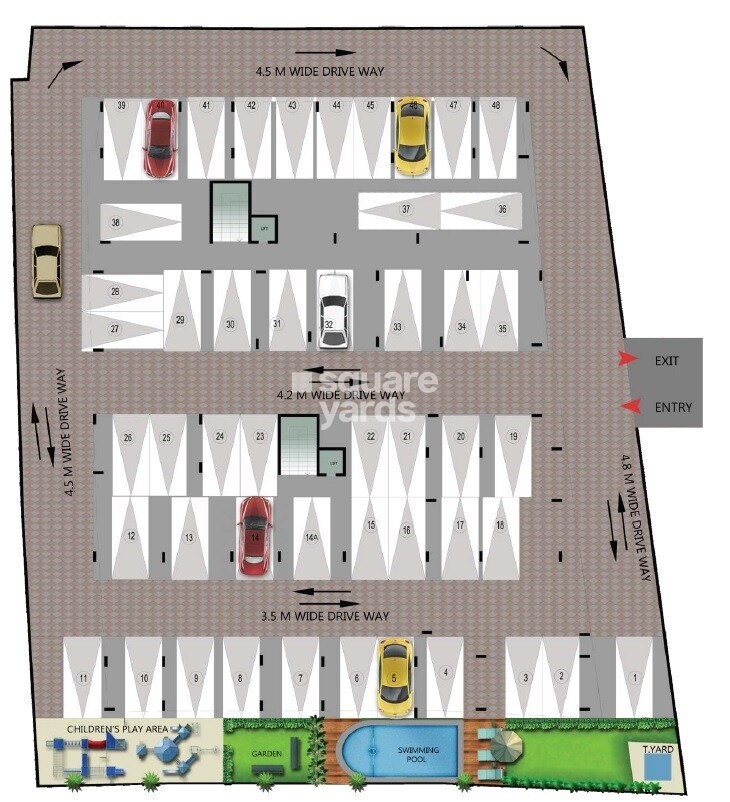

The plan allocates significant space for vehicular parking, organized into 48 numbered bays. Alongside parking, it clearly designates areas for recreational and utility purposes, including a children's play area, a garden, a swimming pool, and a utility yard.

• Main entry and exit points are located on the eastern side of the plan, connecting to a 4.8-meter-wide drive.
• A 4.5-meter-wide driveway borders the top and western sides of the parking area.
• A 4.2-meter-wide driveway runs through the central parking block, guiding internal traffic.
• A 3.5-meter-wide driveway is located at the southern end, providing access to the lower parking spots and amenities.

• A dedicated Children's Play Area is positioned on the lower-left side.
• A tranquil Garden area is situated adjacent to the play area and swimming pool.
• A Swimming Pool is available for recreation, centrally located at the bottom.
• A T.YARD (Utility Yard) is situated in the bottom-right corner.
• Two LIFT locations are present within the parking structure, providing vertical access for convenience.

• This master plan shows a total capacity for 48 numbered parking spots.
• Driveway widths vary across the plan, including 3.5 meters, 4.2 meters, 4.5 meters, and 4.8 meters, to manage traffic flow.
• The plan includes two distinct lift areas to service the parking levels.
