Orris Aanandam Ora Sector 93, Gurgaon

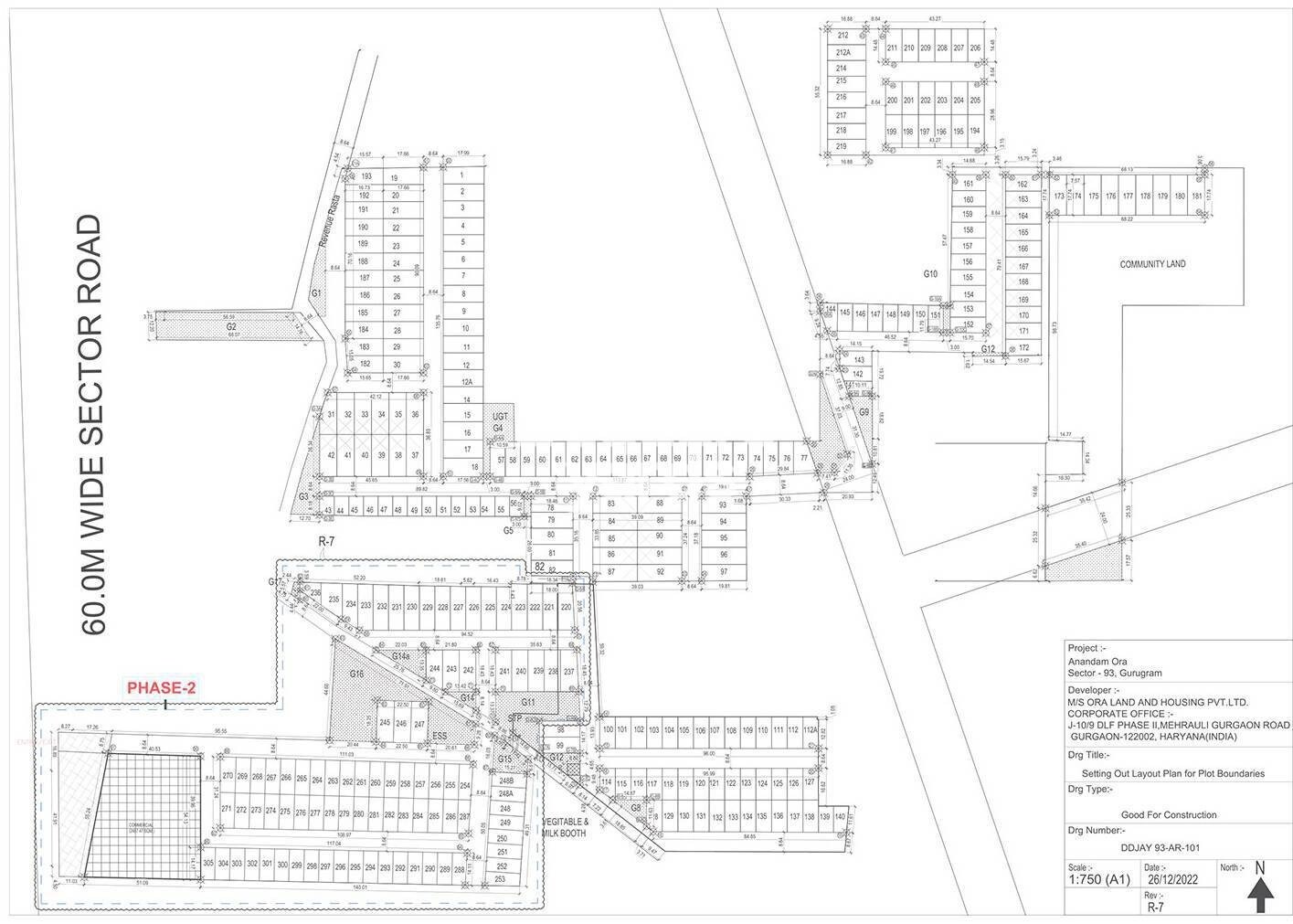

The plan clearly designates areas for residential plots, alongside dedicated zones for community use and essential services. You’ll find spaces allocated for a Electrical Sub Station (ESS), an Underground Tank (UGT), and a Sewage Treatment Plant (STP), ensuring comprehensive utility provision. Additionally, there’s a marked Commercial area and specific plots set aside as 'Community Land.'

• The project benefits from direct access via a 60.0M Wide Sector Road, providing a main entry point.
• An additional access path, labeled as 'Revenue Rasta,' is also part of the connectivity.
• Internal road networks are designed to facilitate movement throughout the development.
• One prominent internal road is shown with a 9.00M width, and another key road adjacent to the commercial area indicates a 20.00M width.

• There are designated Community Land areas visible within the plan, offering spaces for communal activities.
• The plan includes a specific area for a Vegetable & Milk Booth.
• Essential utility infrastructure, such as an Electrical Sub Station (ESS), a Sewage Treatment Plant (STP), and an Underground Tank (UGT), are integrated into the layout.
• Various points labeled G1, G2, G3, G4, G5, G8, G9, G10, G11, G12, G14, G15 are marked, suggesting community nodes or access points throughout the development.

• The project is bordered by a substantial 60.0M Wide Sector Road.
• An example of internal road sizing shows a significant passage with a 9.00M width, and another at 20.00M near the commercial zone.
• The master plan indicates a total of approximately 328 plots.
• This 'Setting Out Layout Plan for Plot Boundaries' drawing was created on 26/12/2022, at a scale of 1:750 (A1).
