Jet Trinity Towers Santacruz East, Mumbai

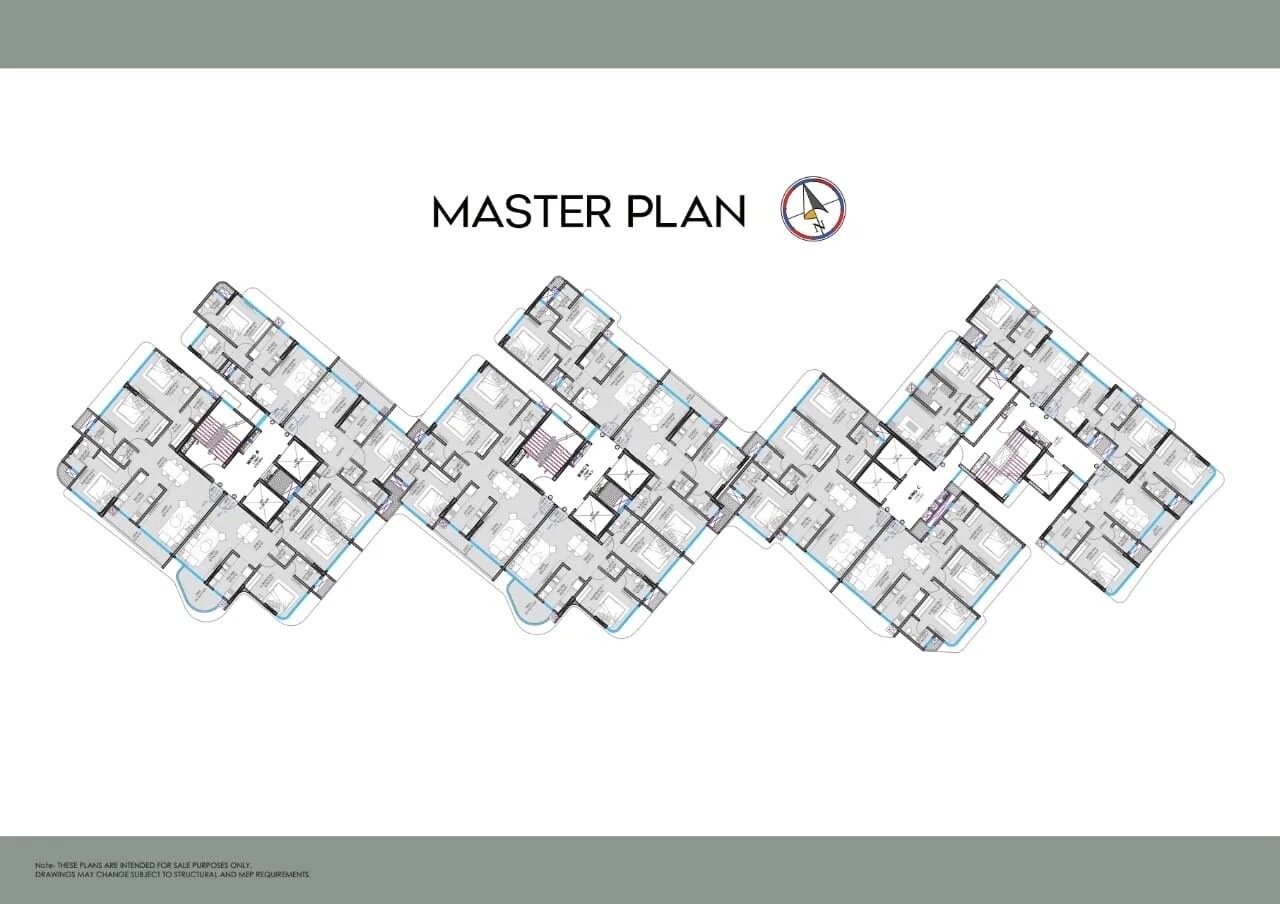

This master plan showcases a residential-focused development. The entire visible area is dedicated to apartment units arranged within a singular, multi-lobed building structure. There are no separate designated zones for commercial use or large open park spaces shown on this particular plan. Information regarding units per acre or the overall density is not provided here.

• The project is well-connected externally, located 0.5 km from Swami Vivekanand Road.
• It also offers quick access to the Western Express Highway, just 0.1 km away.
• Internal road networks and specific access points within the development are not depicted on this master plan, which focuses on the building's floor layout.

• The master plan primarily illustrates the intricate arrangement of residential units and their immediate common areas like corridors and lobbies within the building.
• Distinct external amenities such as a clubhouse, parks, or sports courts are not detailed or labeled on this plan.
• The blue outlines along the building's exterior likely represent balconies or specific architectural elements integrated with the units.

• The plan is labeled with a compass rose indicating cardinal directions, which is useful for understanding unit orientation.
• A note states that these plans are for sale purposes only, and drawings may change subject to structural and MEP requirements.
• However, specific measurements, unit sizes, or capacities are not provided within this master plan overview.
