Galaxy Tower Bhoganahalli, Bangalore

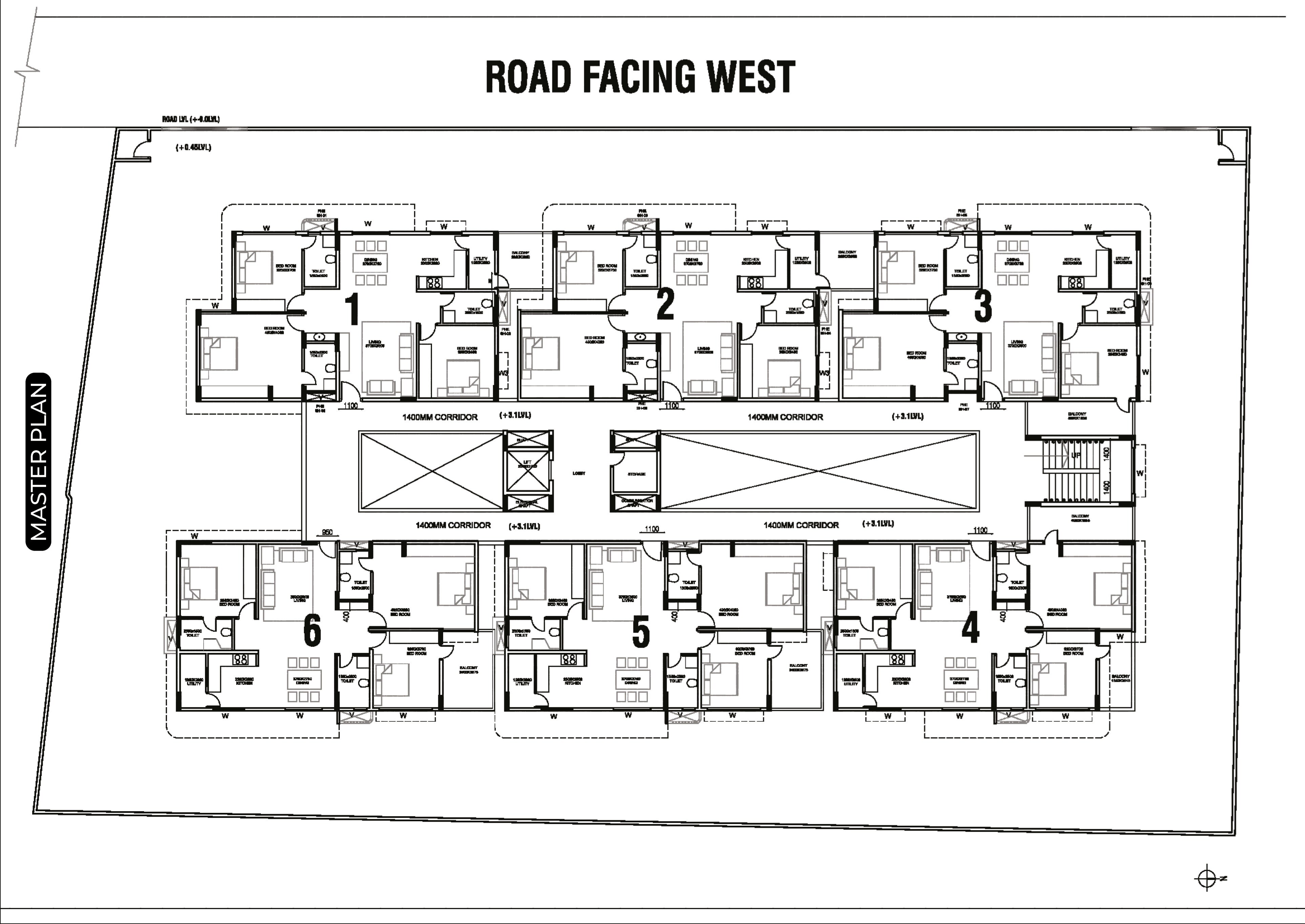

The visible plan designates this floor exclusively for residential use, containing six distinct apartment units. No other land uses, such as commercial or open spaces, are depicted on this specific floor plan. Given this is a single-floor layout, density figures like units per acre cannot be determined from this view alone.

• The building is situated with a clear 'ROAD FACING WEST,' indicating direct external access.
• Internal connectivity is provided by a 1400mm wide common corridor, accessible to all six units on this floor.
• Staircases are present at both ends of the corridor, ensuring vertical circulation.
• While not visible on this plan, the project benefits from its sub-location in Bhoganahalli, with connecting roads including NH 44 (2.5 km away) and Sarjapur Road (1.0 km away).

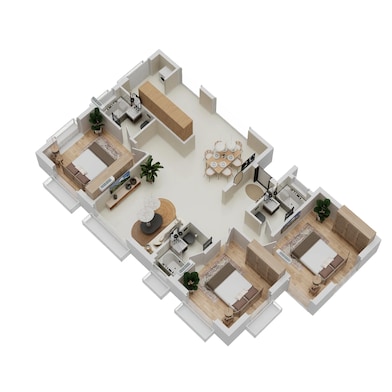

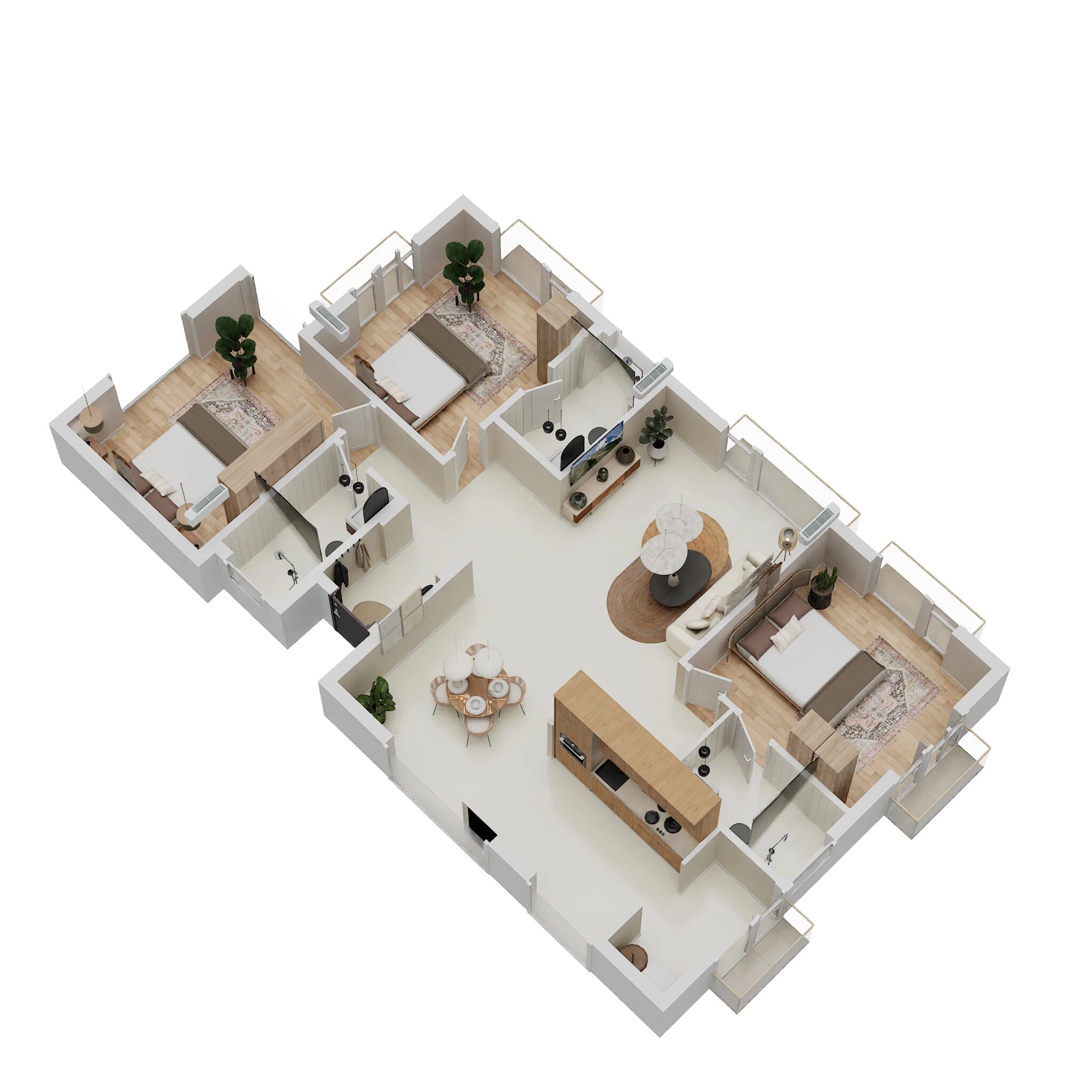

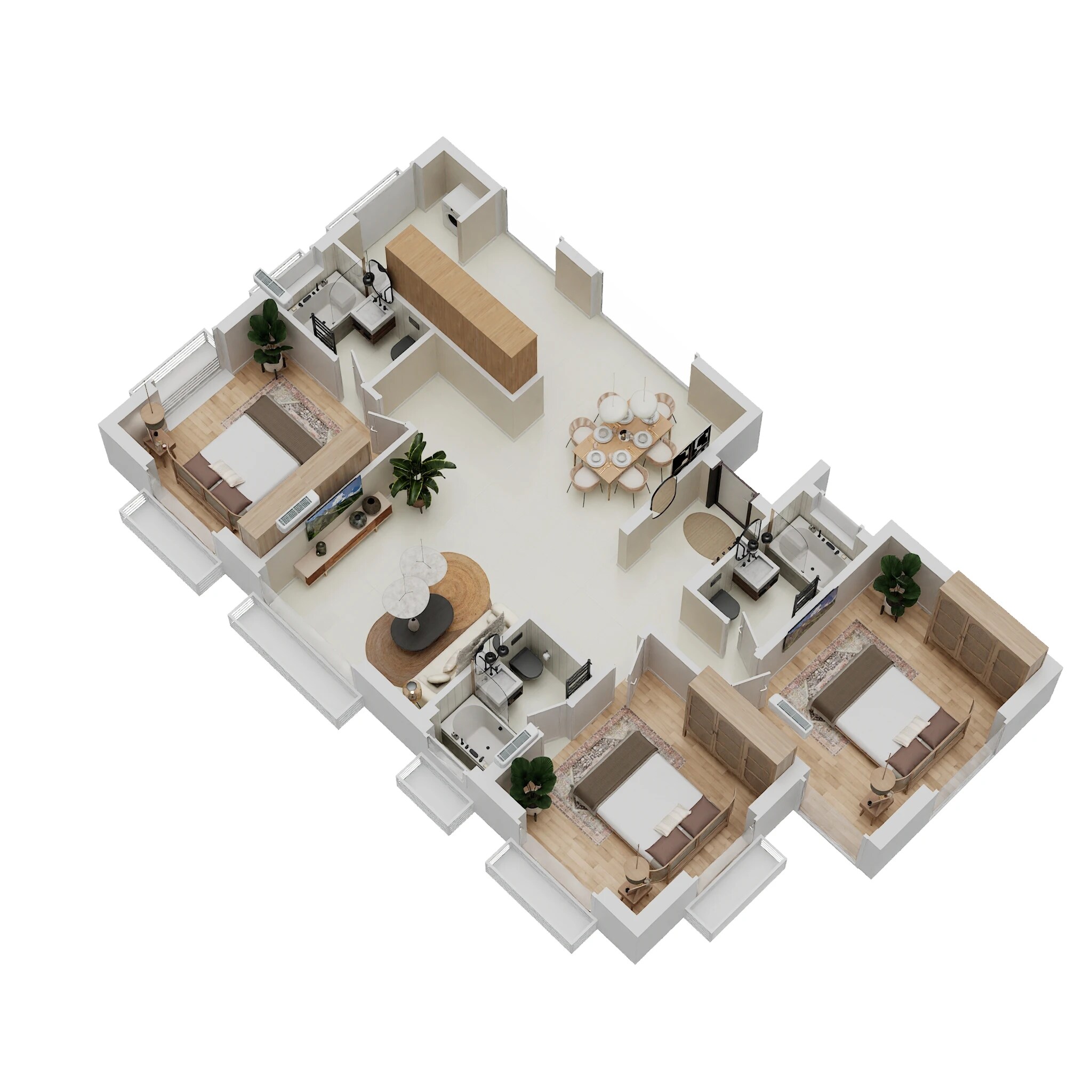

• Each residential unit (1-6) is designed with essential living spaces including bedrooms, toilets, a living area, kitchen, and utility space. Most units also feature a balcony.
• A dedicated lobby and storage area are positioned on this floor, serving the residents.
• The common areas include a 1400mm wide corridor at +3.1LVL, facilitating easy movement between units and access points.

• The primary internal corridor measures 1400mm in width and is set at an elevation of +3.1LVL.
• Road levels are indicated as 'ROAD LYL (+-BOLYL)' and '(+0.45LVL)'.
• Specific bedroom dimensions observed include 4800mm x 6400mm (Unit 1 and Unit 4), 3700mm x 3800mm (Unit 3), 3800mm x 3000mm (Unit 5), and 3000mm x 3000mm (Unit 6).
• Unit 4 also features another bedroom with dimensions of 2100mm x 2700mm.
