Modern Windmere Harlur, Bangalore

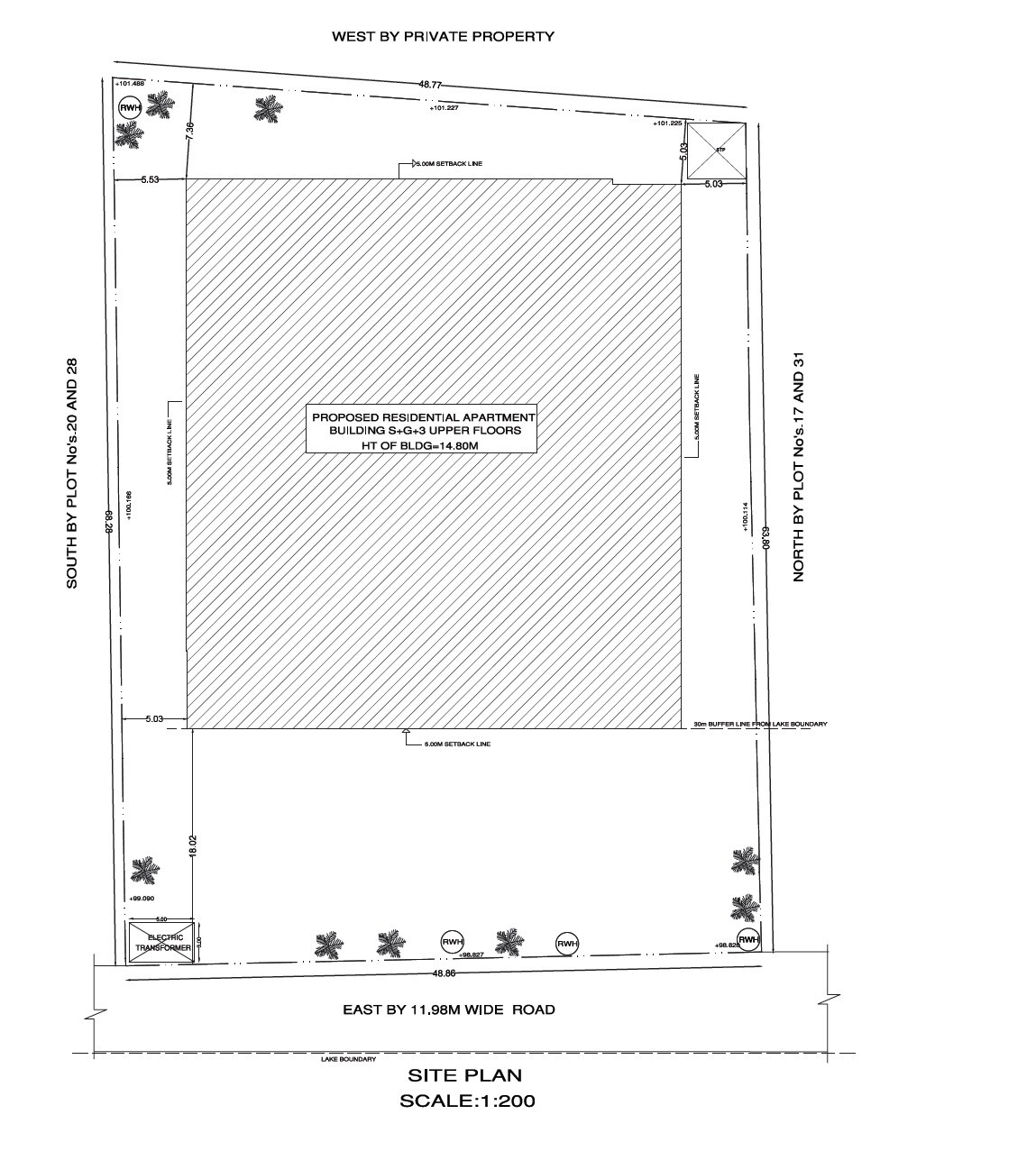

The master plan primarily designates the central area for the proposed residential apartment building. The property is bounded by private property to the west and north, an 11.98m wide road to the east, and a lake boundary to the southeast. Specific area allocations or units per acre are not detailed.

• Primary access to the property is from the East via an 11.98m wide road, which includes a 5.00m entrance lane.
• The site is externally connected to Outer Ring Road, approximately 2.0 km away, and Sarjapur Road, approximately 1.5 km away.
• The property is bordered by private properties on the north (Plot No's. 17 and 31) and south (Plot No's. 20 and 28).
• There are no internal road networks visible within the immediate building plot.

• Rain Water Harvesting (RWH) units are placed on the western and eastern sides of the property.
• An Electric Transformer is located in the southwest corner of the plot.
• A Sewage Treatment Plant (STP) is situated in the northeast corner.
• Several planted trees are indicated around the perimeter, contributing to green space.

• The proposed residential apartment building has a height of 14.80 meters.
• A 5.00 meter setback line is maintained around all sides of the building from the property boundaries.
• There is a 30-meter buffer line observed from the lake boundary on the eastern side.
• The plot measures approximately 48.77 meters on the north, 48.86 meters on the south, and ranges from 63.80 meters to 68.28 meters on the west and east sides.

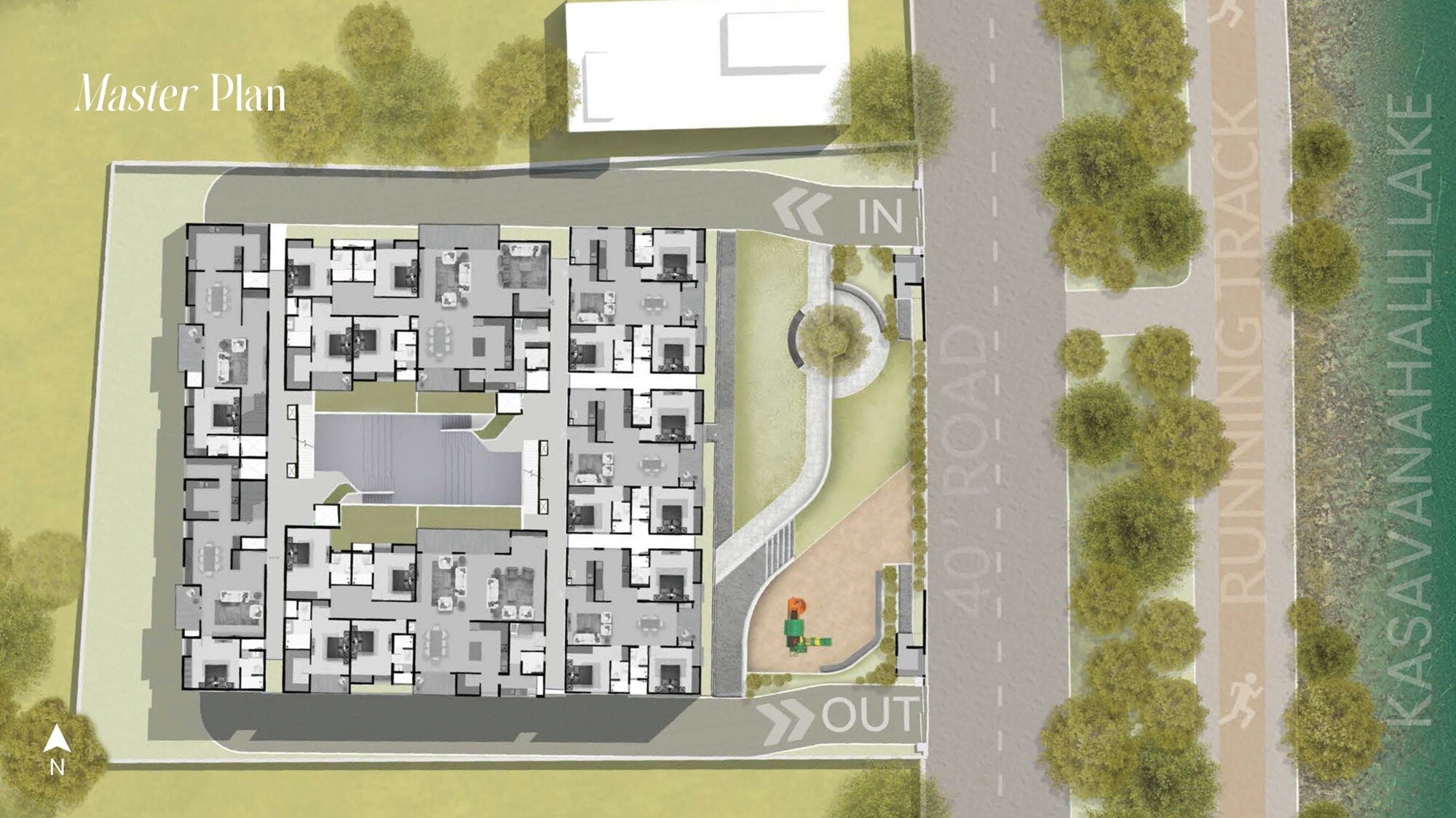

The property primarily comprises a residential building complex, centrally located within the site. The surrounding areas are allocated for landscaping, access roads, and recreational features. This arrangement indicates a focused residential development with integrated amenity spaces and direct access to external infrastructure.

• The property features distinct 'IN' and 'OUT' points for controlled vehicle access.
• A '40' ROAD' runs directly adjacent to the property, providing primary vehicular access.
• Beyond the 40' Road, a 'RUNNING TRACK' is present, offering direct access to recreational activities.
• The property is located next to 'KASAVANAHALLI LAKE,' enhancing the natural environment.

• A landscaped entrance area with a circular feature is visible at the 'IN' access point.
• A dedicated children's play area, including equipment like a slide and swings, is located near the 'OUT' exit.
• A significant open space or central courtyard is integrated within the core of the residential building complex.
• Multiple residential units are detailed within the complex, showing clear layouts for living, dining, and sleeping areas.

• The main access road adjacent to the property is clearly marked as a '40' ROAD'.
• A compass rose indicates the orientation of the plan, with 'N' pointing North.
• The master plan explicitly shows a 'RUNNING TRACK' and 'KASAVANAHALLI LAKE' directly bordering the property's external access.
• Dedicated 'IN' and 'OUT' arrows effectively manage the flow of traffic for residents and visitors.
