Chandak Nishchay Wing E Borivali East, Mumbai

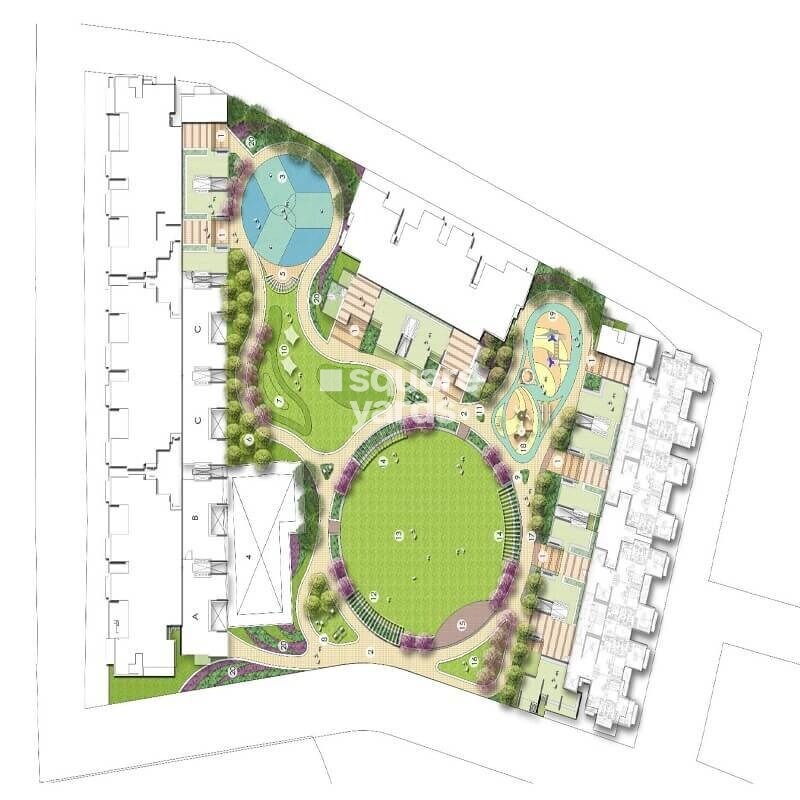

The plan primarily designates residential blocks along the left and right perimeters. These blocks frame a large central area dedicated to open green spaces and recreational amenities. No commercial zones or specific density metrics like units per acre are shown.

• Internal pedestrian pathways weave through the central amenity area, connecting different recreational zones.
• These pathways are bordered by landscaped sections and lead to various points of interest within the central space.
• No external road networks or primary vehicular access points are explicitly shown or labeled on this plan.
• There are no indicated widths for any of the pathways.

• A prominent circular green lawn, visually segmented by pathways, serves as a central open gathering space (visible on Pages 1, 4, and 5).
• A multi-sectioned circular water feature or pool is located in the upper-left quadrant, surrounded by pathways and green areas (visible on Pages 1 and 2).
• A dedicated children's play area, identifiable by its yellow play structures, is situated in the upper-right quadrant (visible on Pages 1 and 3).
• Extensive landscaped areas with various plantings, including treed avenues and flower beds, frame the central amenities and residential blocks.

• The master plan does not explicitly provide overall land area, building heights, or specific measurements for amenity zones.
• The plan illustrates several distinct zones and features, but their dimensions in terms of square footage or linear meters are not labeled.
• No unit counts or residential block capacities are indicated on this plan.
• There are various alphanumeric markers on the plan (e.g., F, M, S, V, 2, 4, 12, 15, 16, 17, 18) that lack a corresponding legend to detail their meaning or dimensions.
