Navkar Shree Wakad, Pune

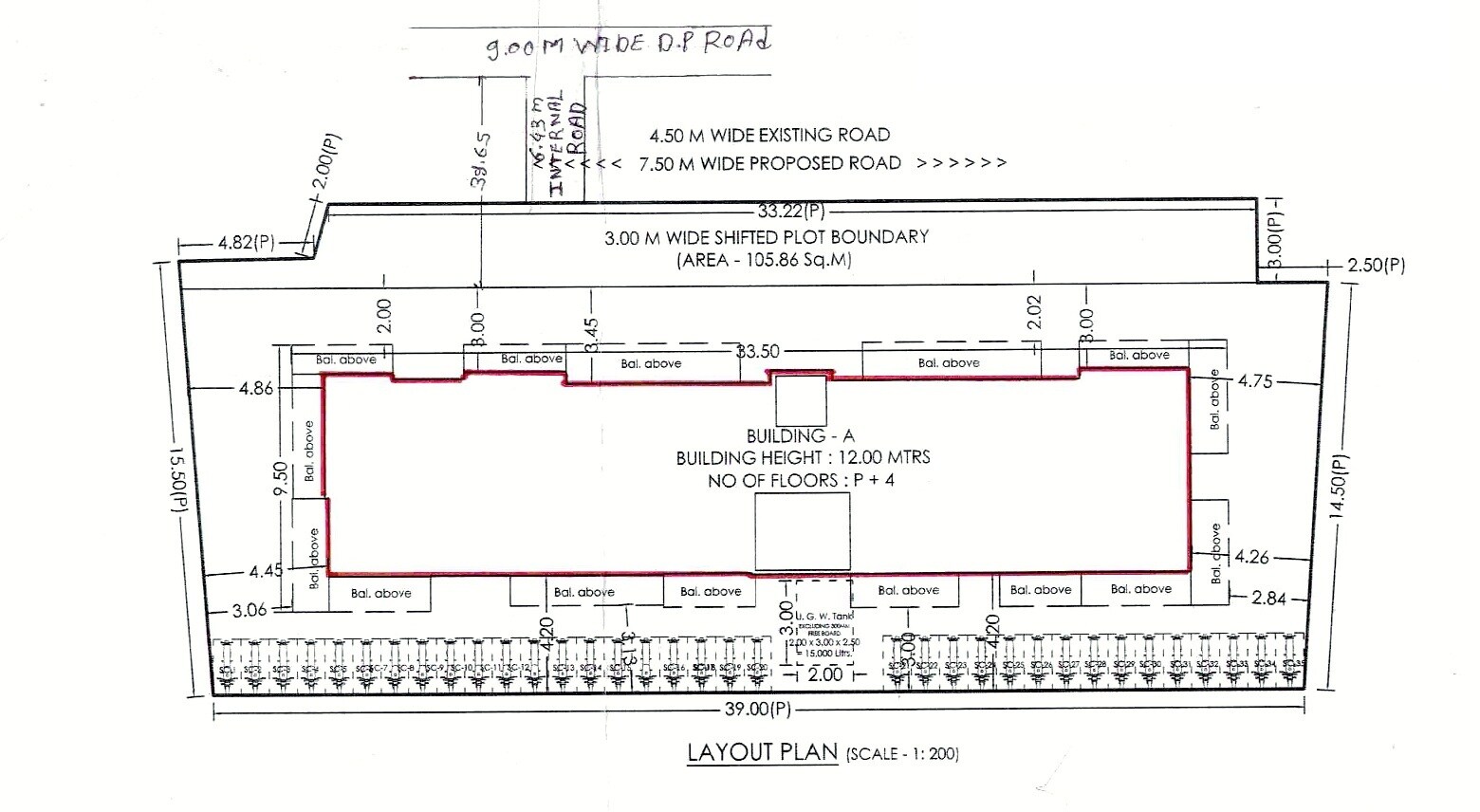

The plan primarily allocates space for Building A, surrounded by necessary setbacks and access points. No other specific land use zones or density figures are visible on this plan.

• The property fronts a 9.00 M wide Development Plan (D.P.) Road.
• It also has access from a 4.50 M wide existing road, which is planned to be a 7.50 M wide proposed road.
• The project is located 0.5 km from the Mumbai-Bangalore Highway.

• An Underground Water Tank is included, with a capacity of 15,000 Liters and dimensions of 12.00m x 3.00m x 2.50m.
• Building A incorporates 'Bal. above' indicators, suggesting balconies or other cantilevered structures.
• Several small rectangular elements, labeled SC-1, SC-2, etc., are visible along the perimeter, likely serving as parking spaces or utility points.

• Building A has a height of 12.00 meters.
• The building consists of a Podium level plus four additional floors.
• A specific shifted plot boundary area measures 105.86 square meters.
• The property features various setbacks, including 4.86m, 9.50m, 4.45m, and 3.06m from the left boundary, and 2.00m, 3.45m, and 3.00m from the top boundary.
